Front Door: Service and Repair

Front Door Panel:

REMOVAL

Disconnect the ground cable from battery.
Remove the front door trim.
Remove the outer mirror assembly.
Remove the front door glass.
Remove the front door regulator and motor.
Remove the front door latch assembly.
Remove the front outer handle.

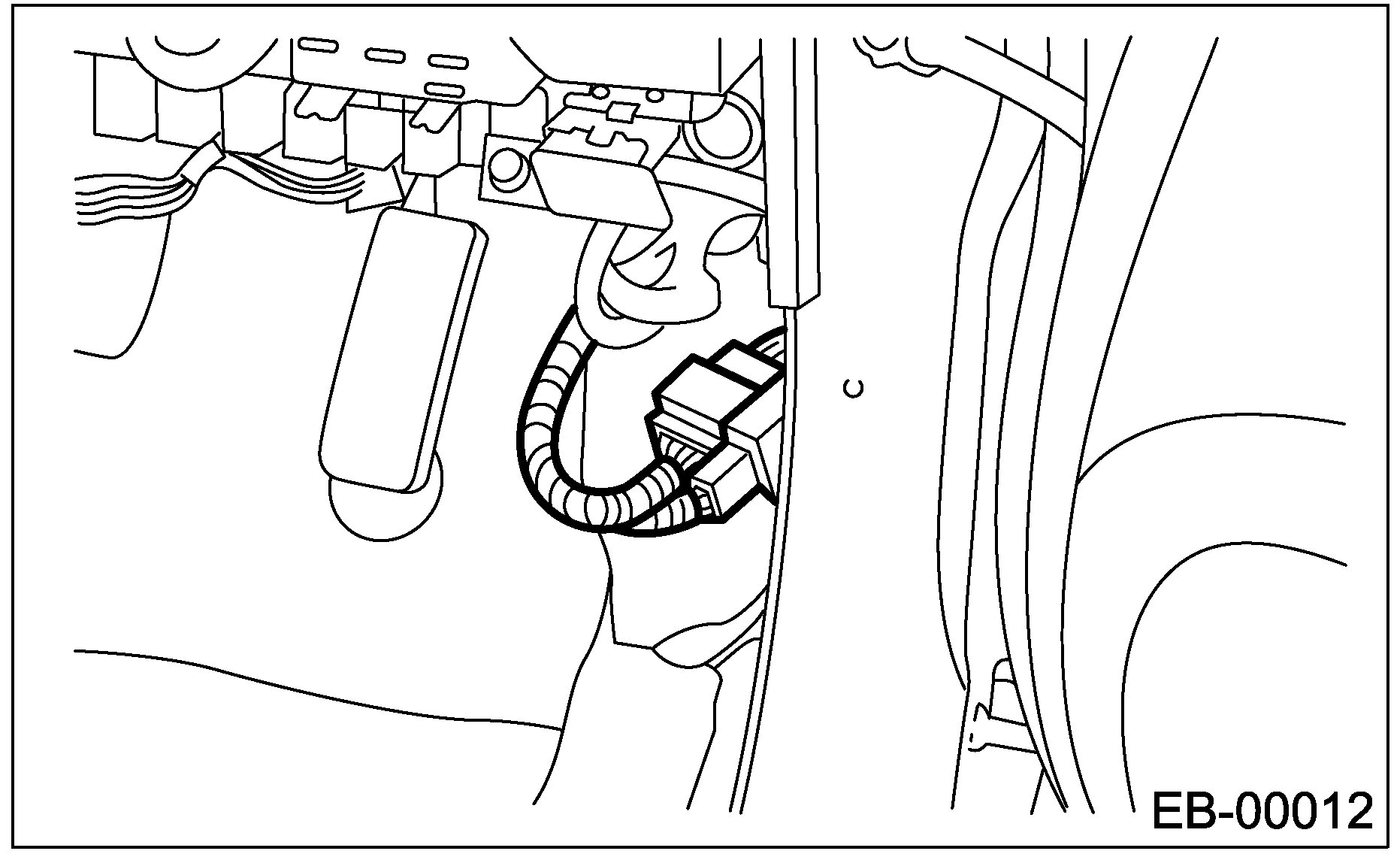

Remove the front pillar lower trim to disconnect the connector from body harness.

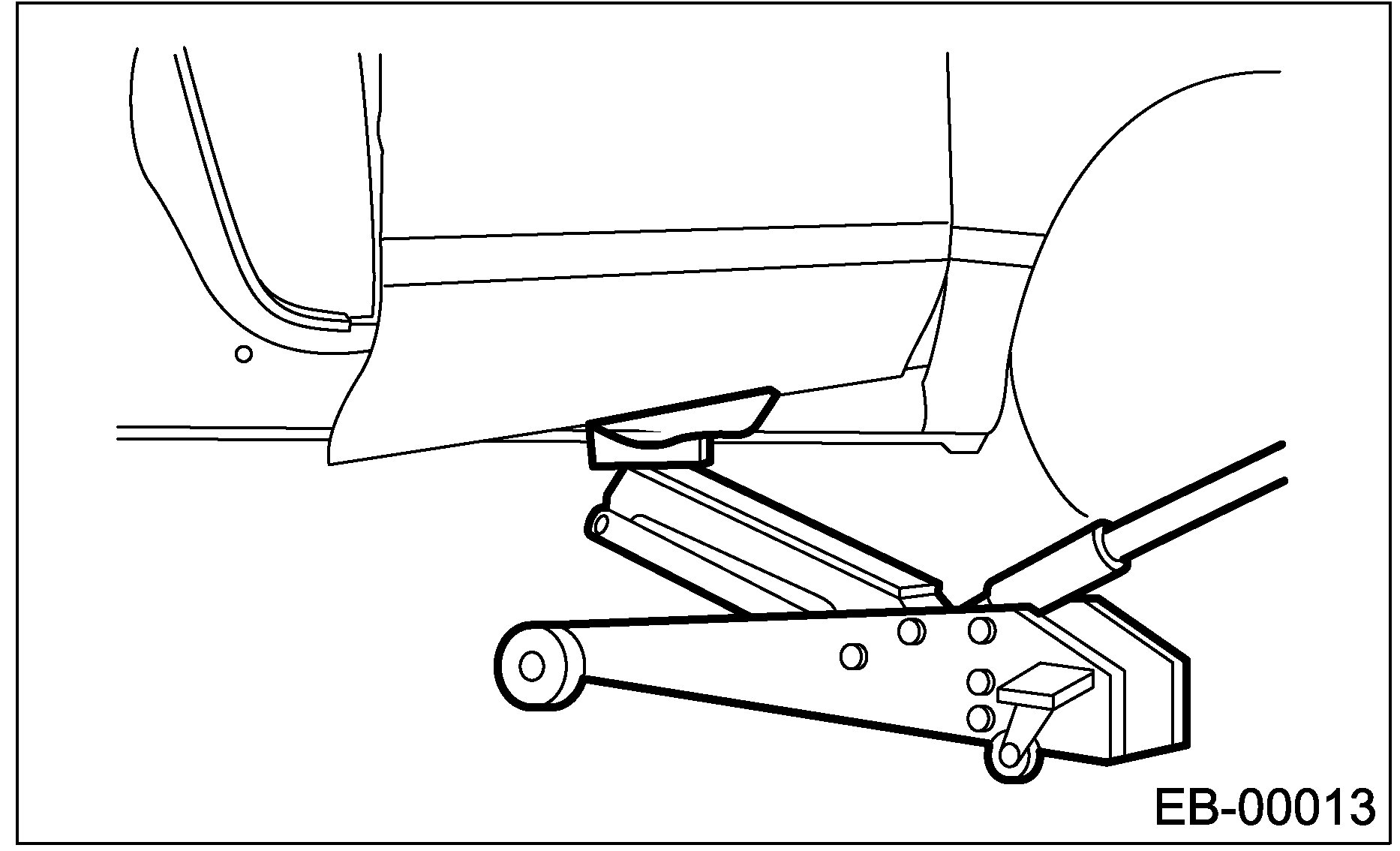

Put a wooden block on jack and place the jack under front door panel. Support the front door with the jack to protect it from damage.

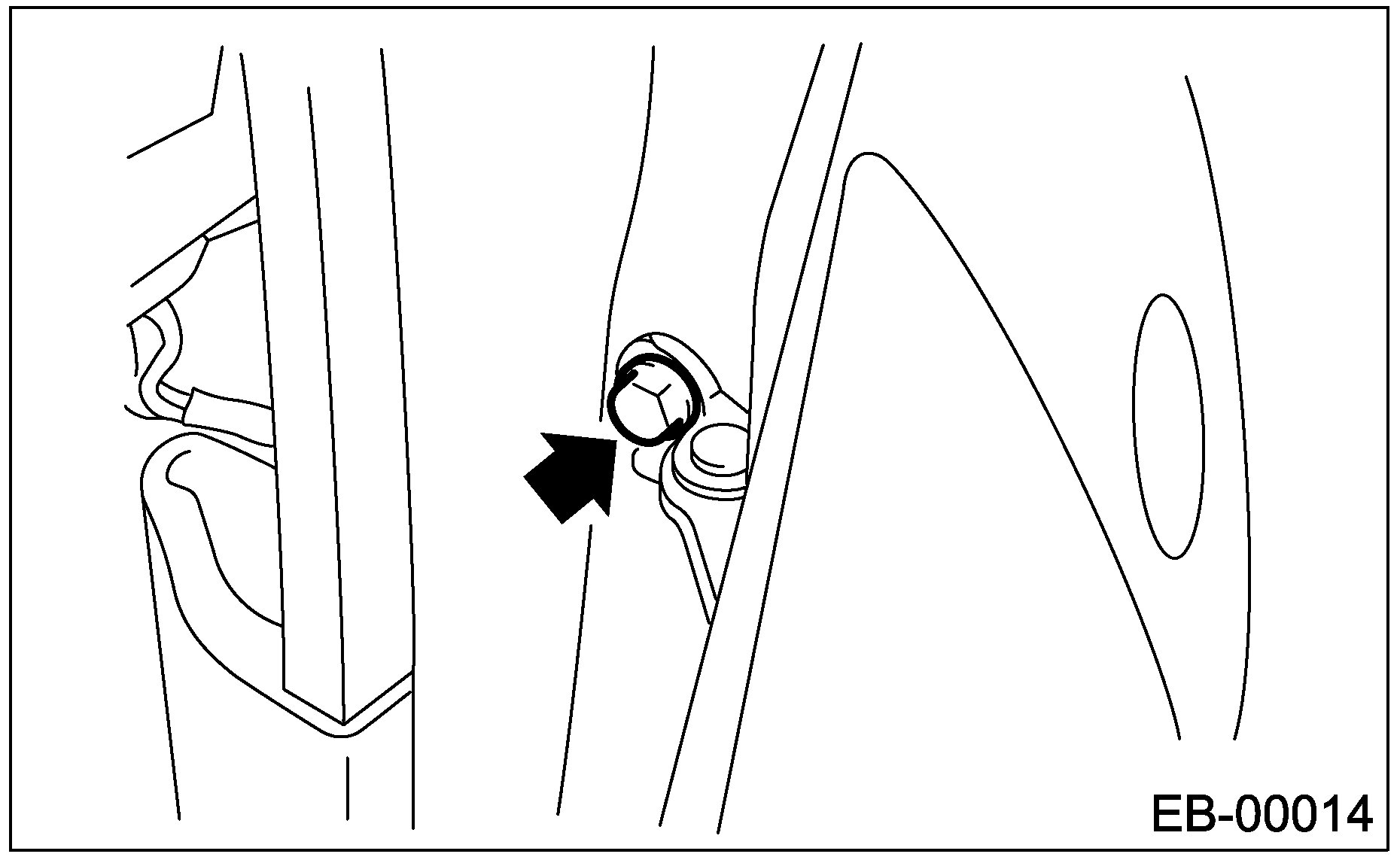

Remove the checker bolts.

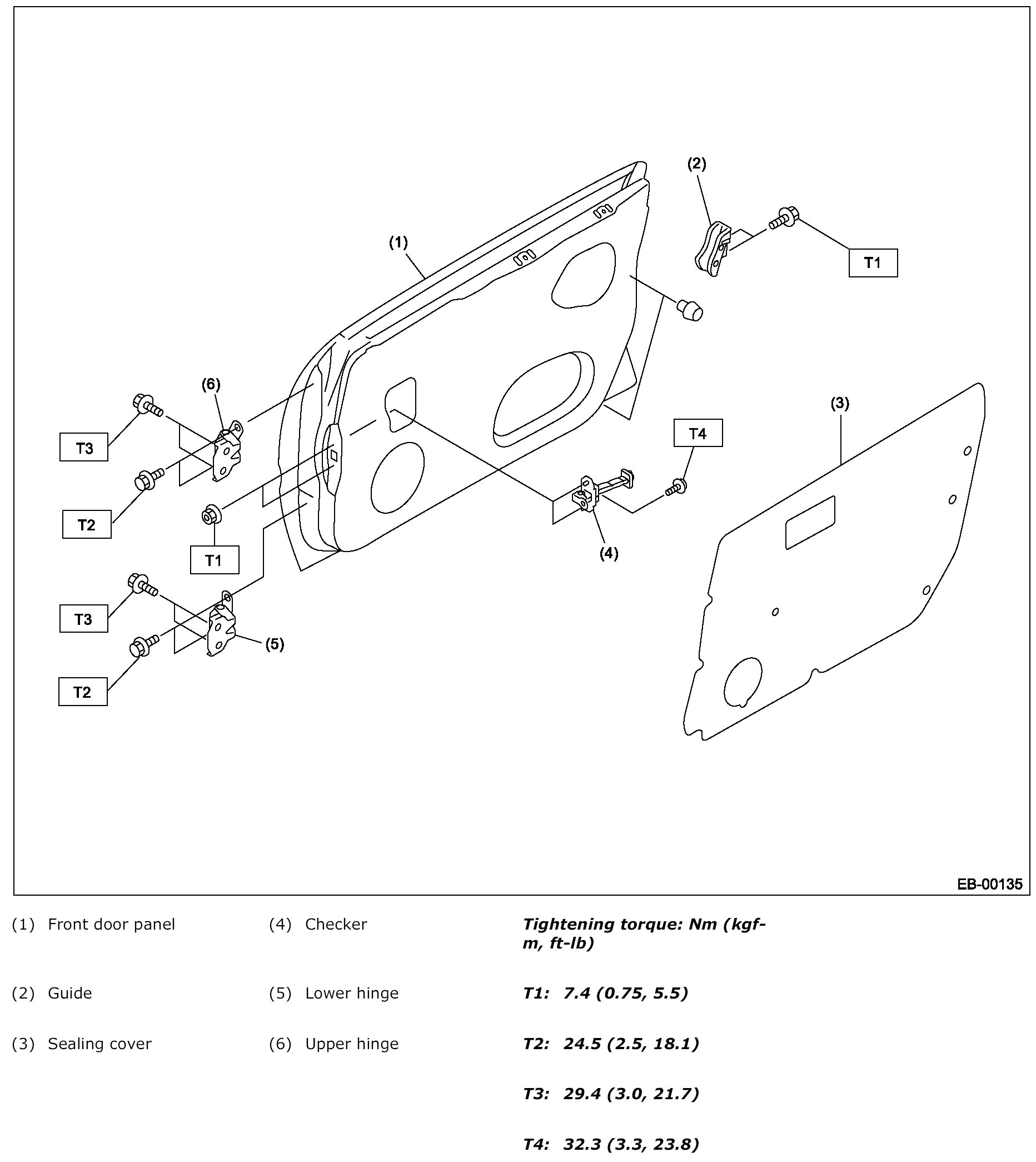

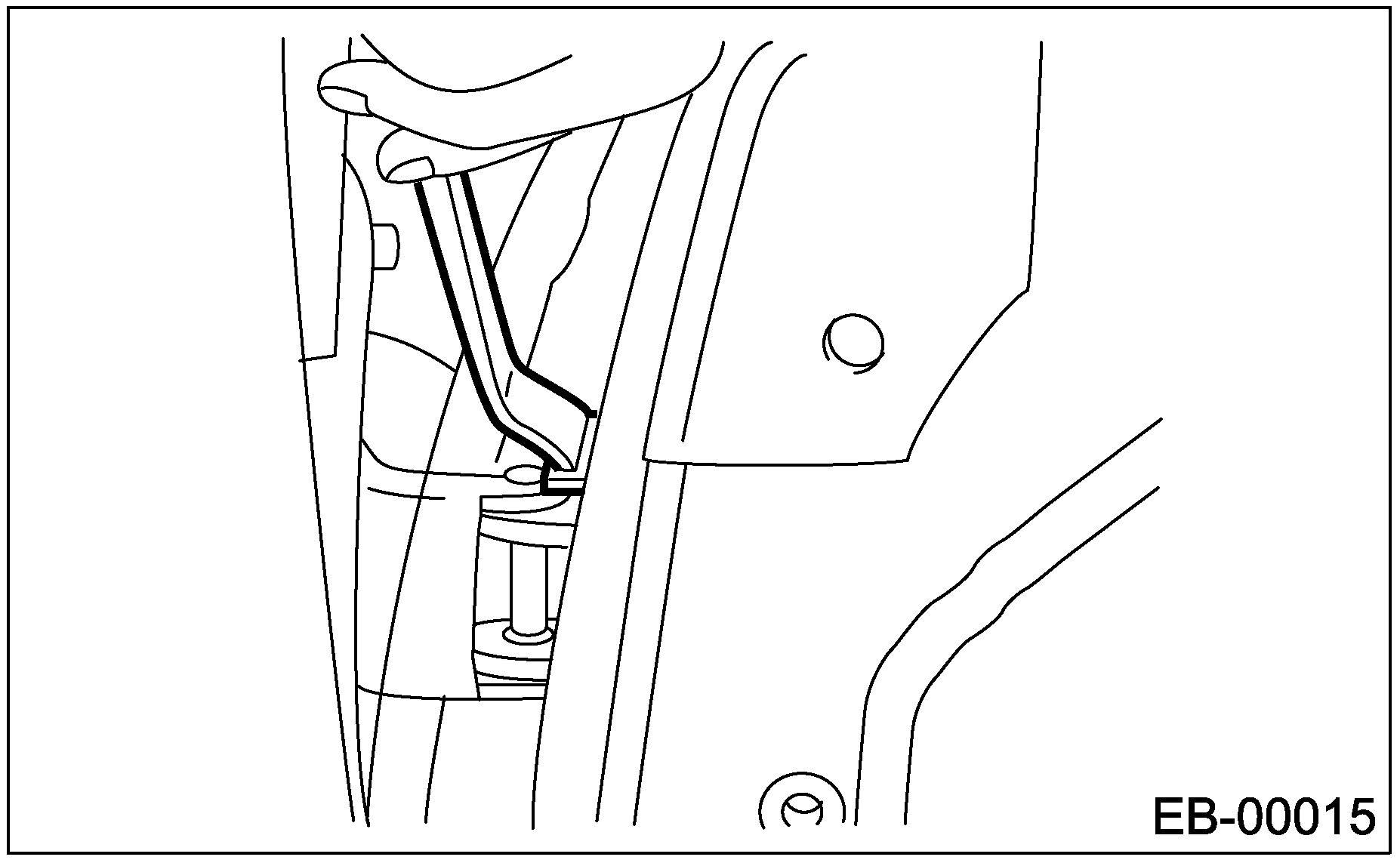

Remove the door-side bolts for upper and lower hinges to remove the front door panel.







INSTALLATION

Install in the reverse order of removal.
Apply grease to the sliding area of door hinges.
