Front Door: Adjustments



ADJUSTMENT

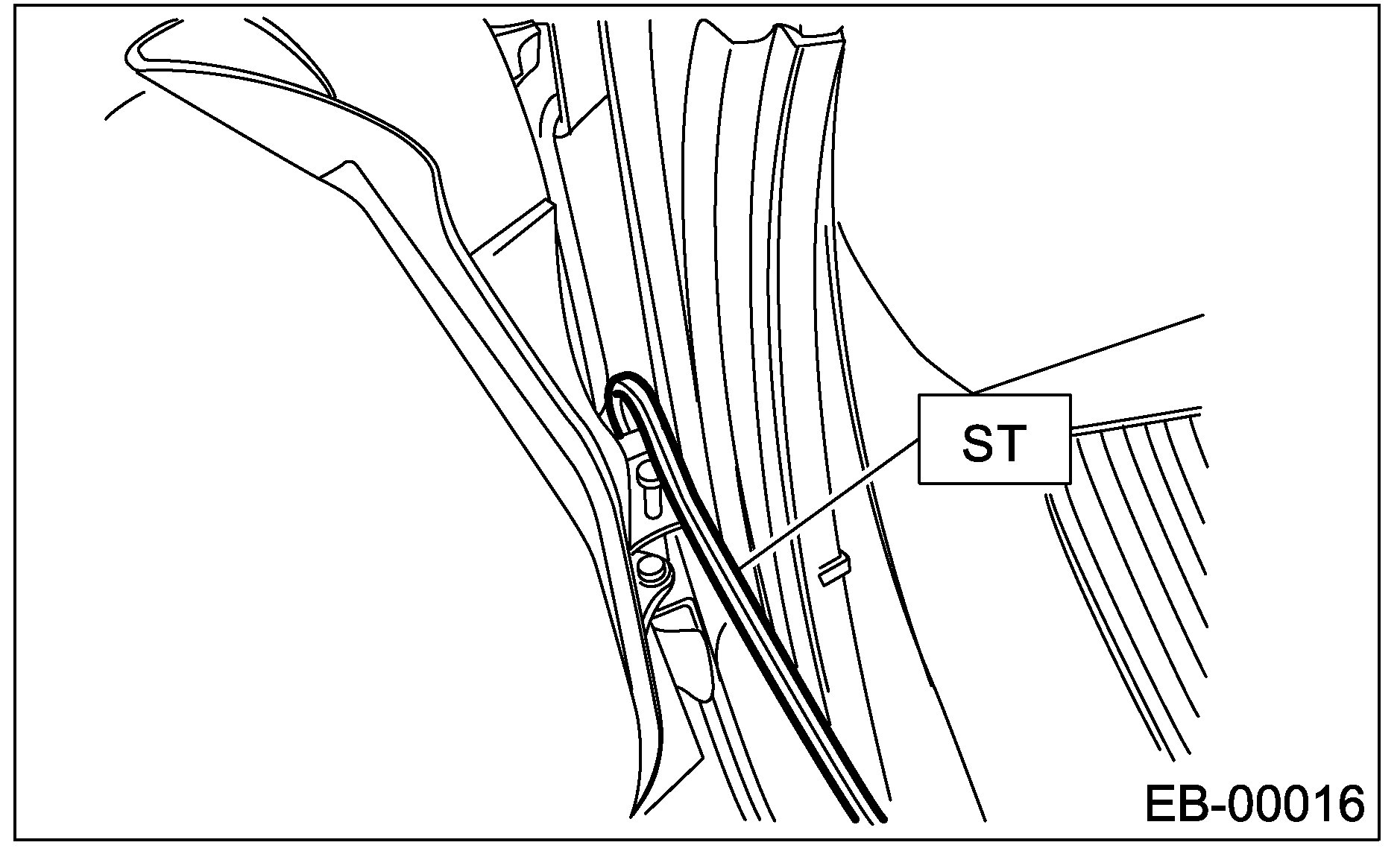

Using the ST, loosen the body-side bolts of upper and lower hinges to align the position of front door panel longitudinally and vertically.

ST 32005187 WRENCH

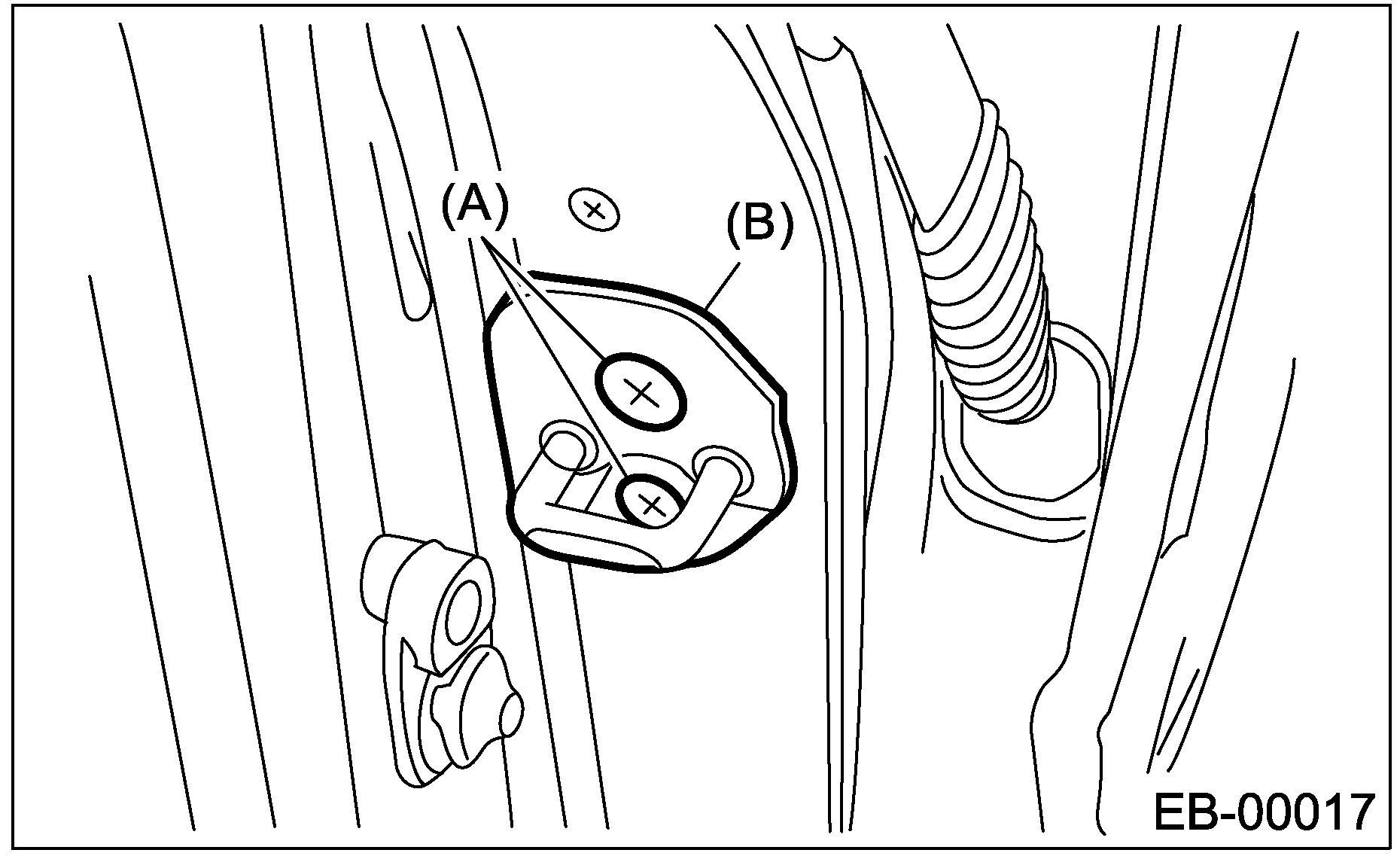

Loosen the screw (A) and tap striker (B) using a plastic hammer to adjust striker to align the position of front door panel laterally at the rear end.

IMPORTANT: Do not use an impact wrench. Welding area on the striker nut plate is easily broken.
