Keyless Entry: Service and Repair

Remote Openers

Removal

Hood Opener
Remove the release cable from hood lock.
Remove the bolt. Remove the opener lever.







Fuel Flap Opener
Remove the rear seat.

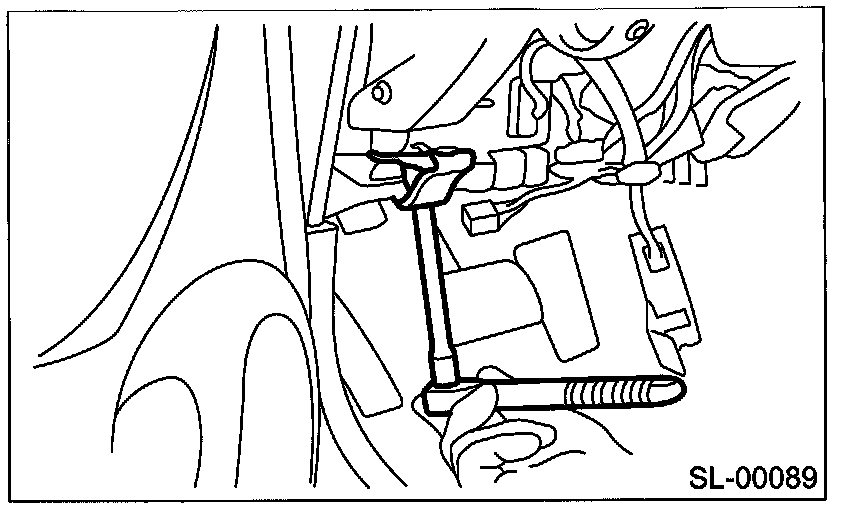

Remove the center pillar lower trim, and remove the side sill cover on passenger side. Remove the rear pillar lower trim. Pull back the floor mat. Remove the clip holding the cable.

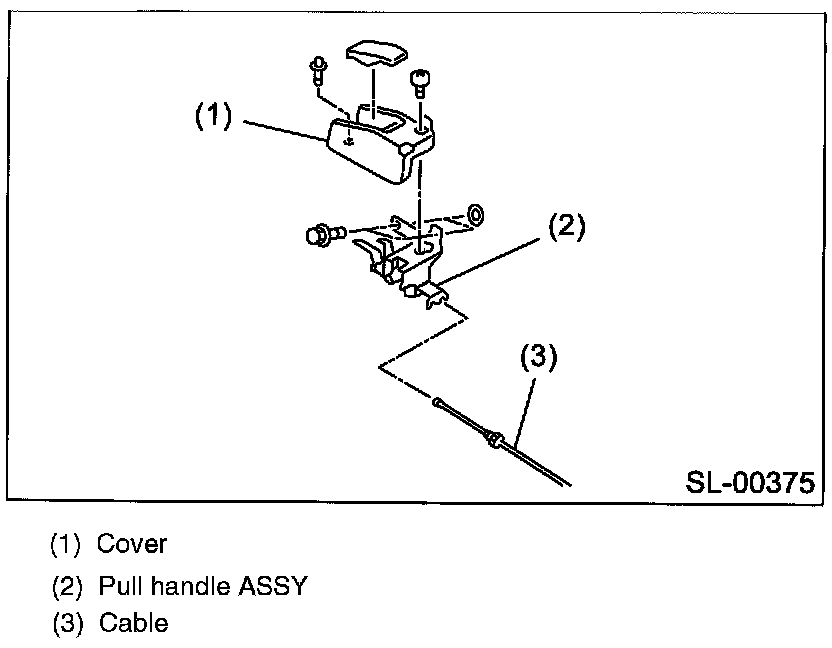

Remove the bolt. Remove the opener pull handle.







Remove the cable from opener pull handle.
Remove the right rear quarter trim.

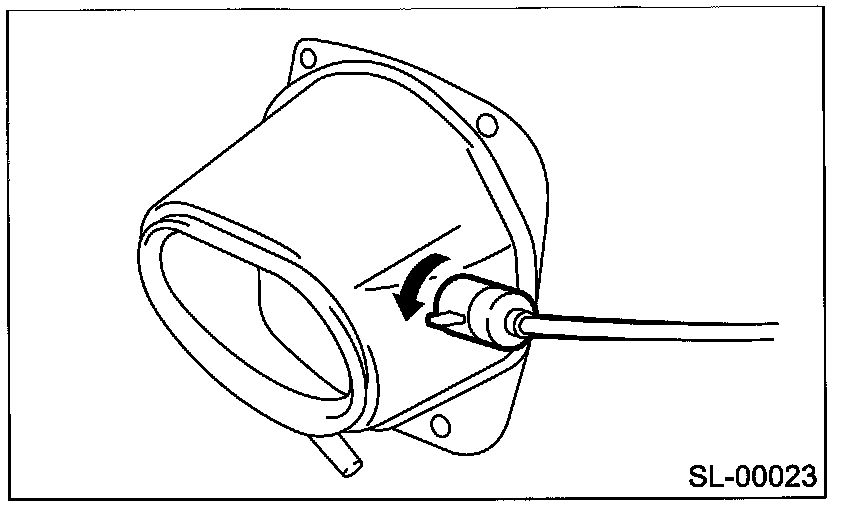

Rotate the fuel lock inside the quarter panel to left and remove.







Installation

Hood Opener
Install in the reverse order of removal.

Fuel Flap Opener
Install in the reverse order of removal.
