Initial Inspection and Diagnostic Overview

Security Control Unit

Inspection

Impact Sensitivity Test
Remove the key from the ignition switch.
Close all windows.
Close all doors and the rear gate.
Cover the hood with a blanket.
Press the LOCK/ARM button of the keyless transmitter.
Confirm that the security indicator light blinks every 2 seconds.

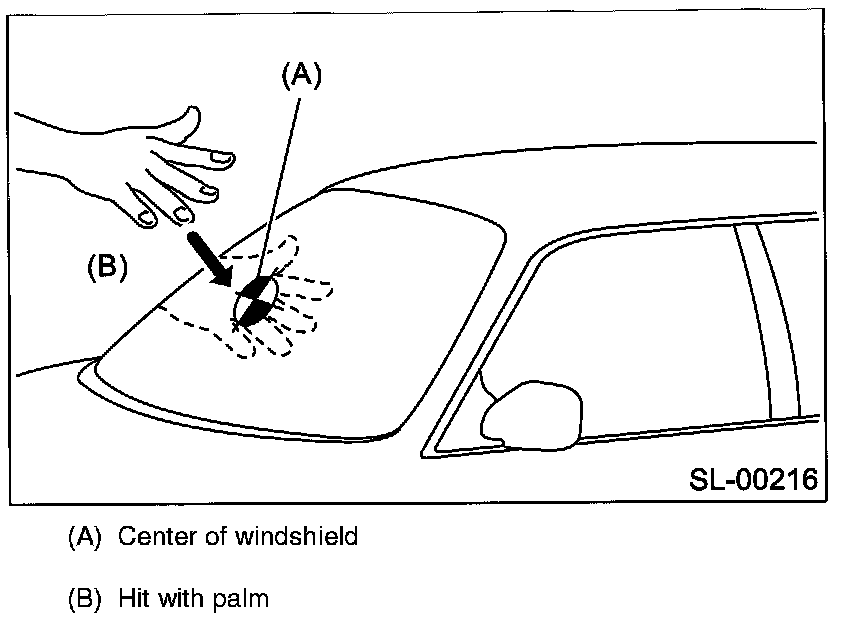

Hit the center of the windshield with your palm and make sure the alarm operates.







If NG, adjust the impact sensitivity.
