Antenna: Service and Repair

REMOVAL

Disconnect the ground cable from battery.
Remove the instrument panel lower cover.
Remove the screws, separate upper column cover and lower column cover.

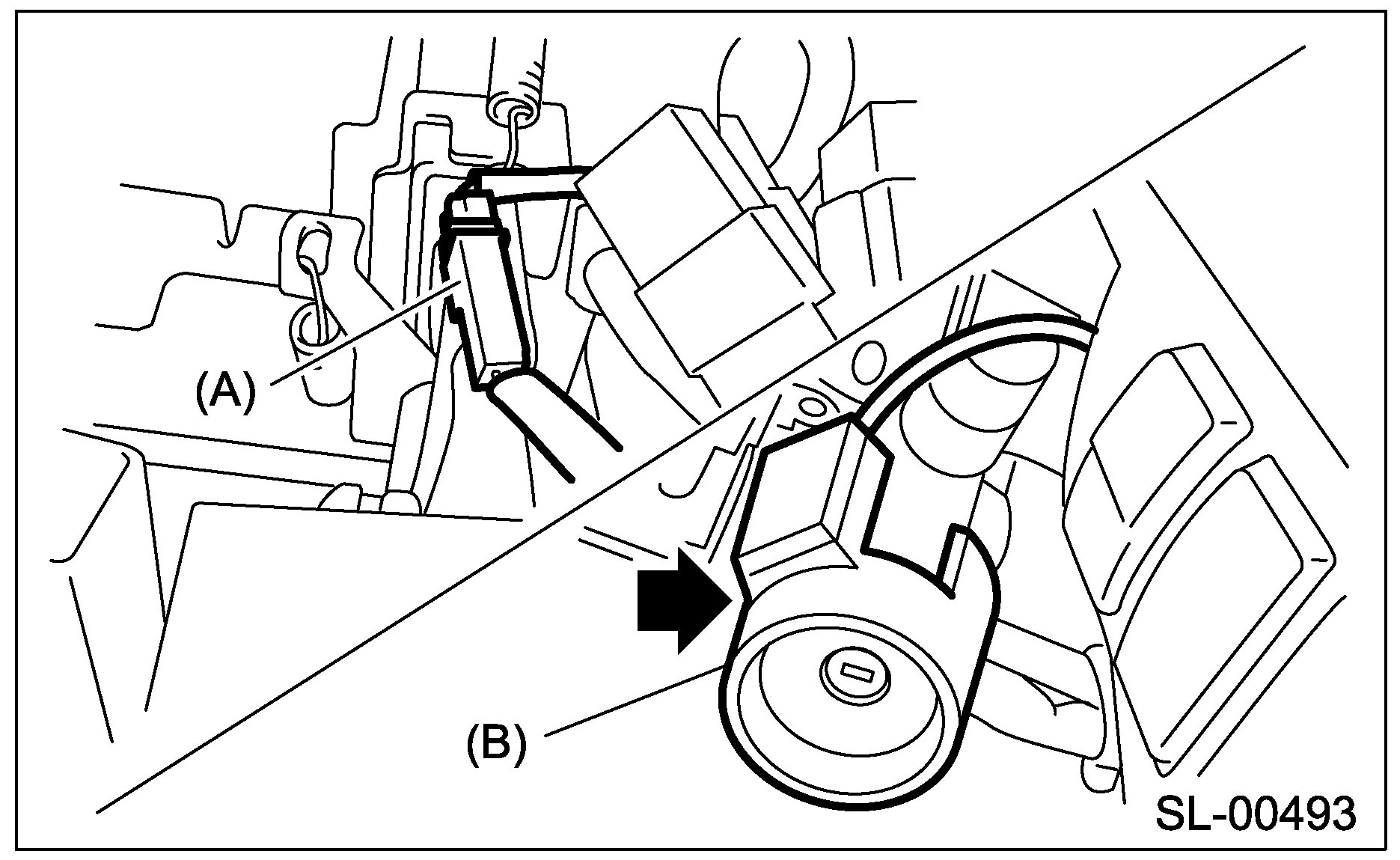

Disconnect the immobilizer antenna connector (A) from body harness.
Remove the screw, and detach the immobilizer antenna (B).







INSTALLATION

Install in the reverse order of removal.
