P0509

DTC P0509 IDLE CONTROL SYSTEM CIRCUIT HIGH

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls.
- Engine breathing

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

Wiring Diagram:

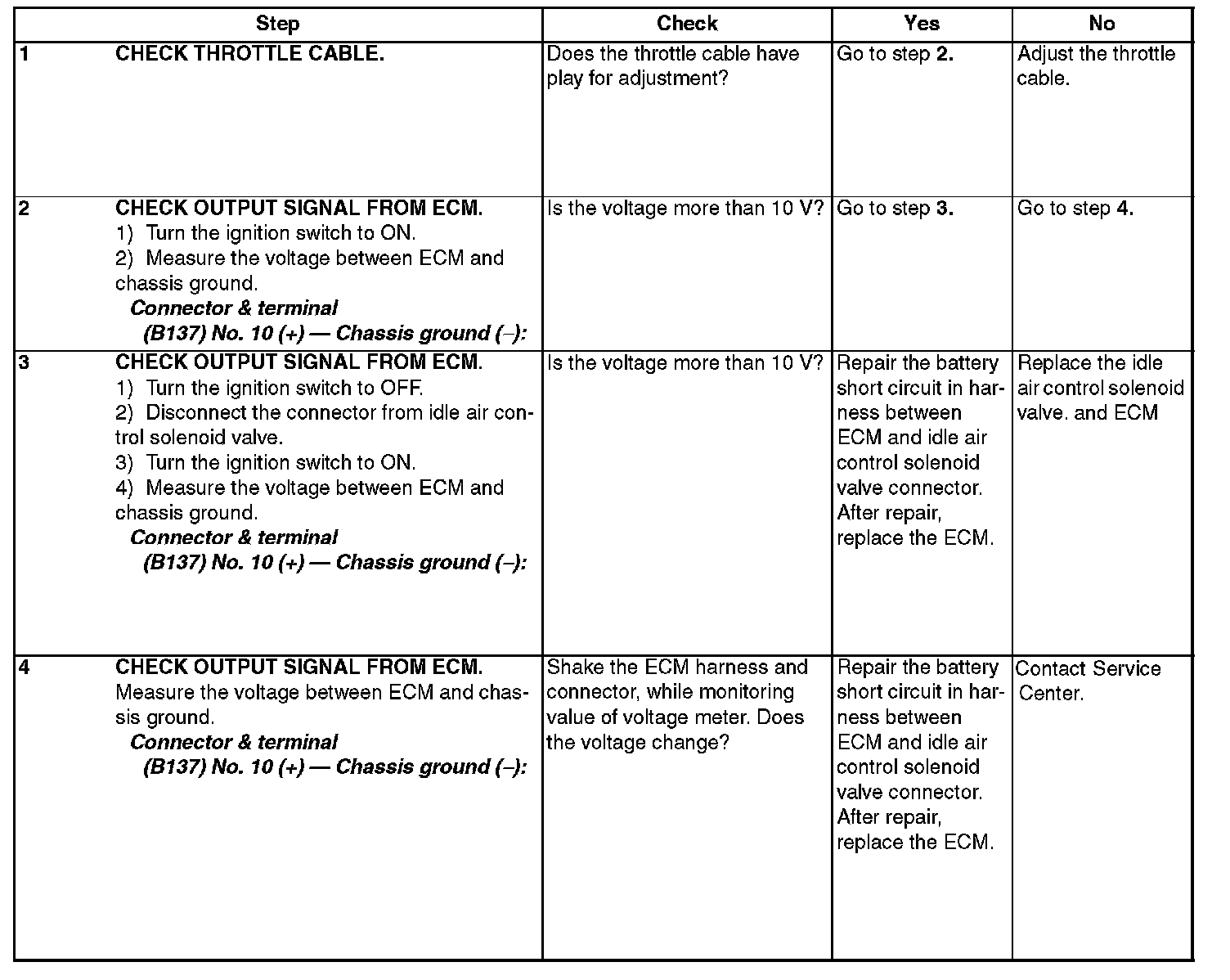

Step 1 - 4:
