P0341

DTC P0341 CAMSHAFT POSITION SENSOR "A" CIRCUIT RANGE/PERFORMANCE (BANK 1 OR SINGLE SENSOR)

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Engine stalls.
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

Wiring Diagram:

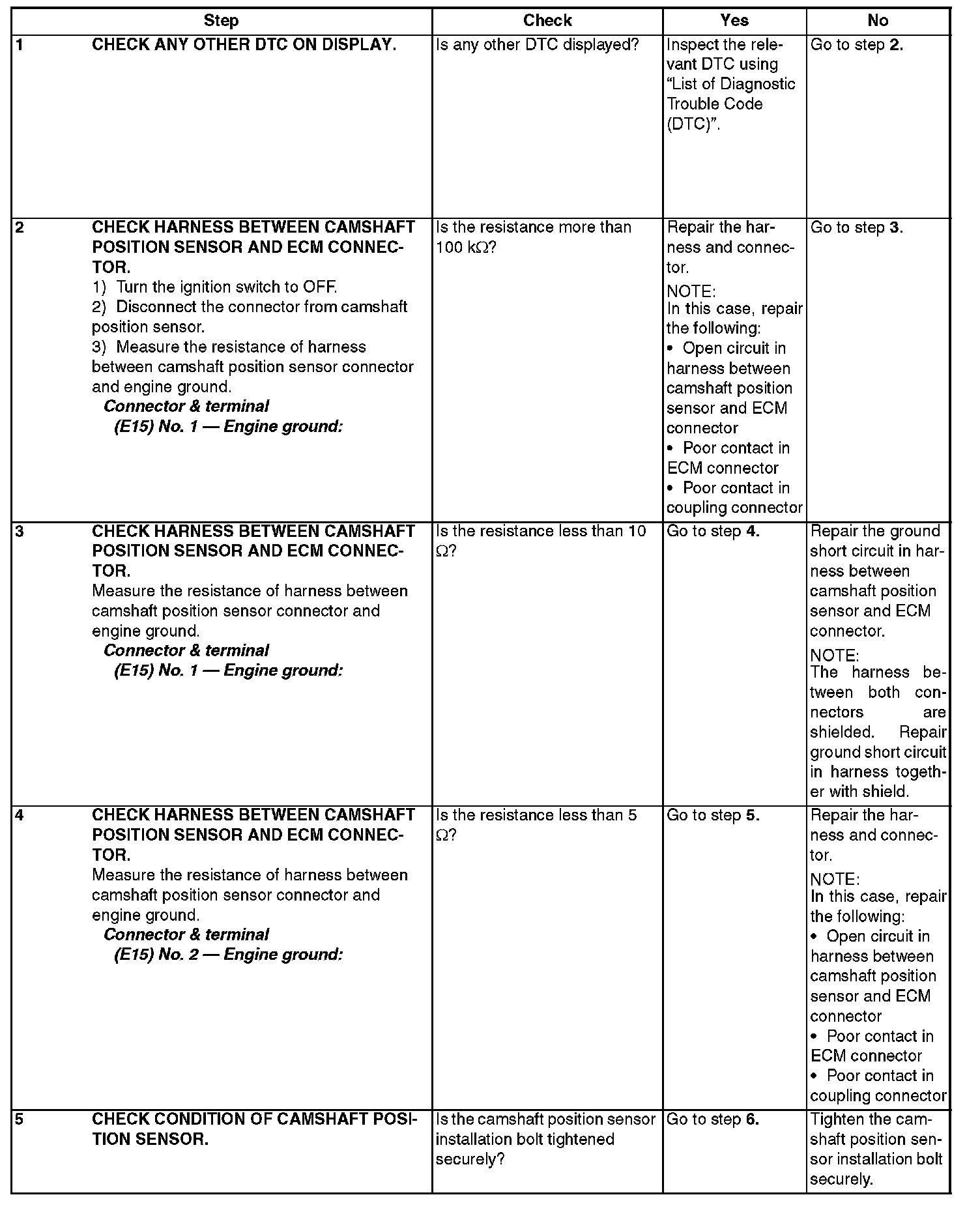

Step 1 - 5:

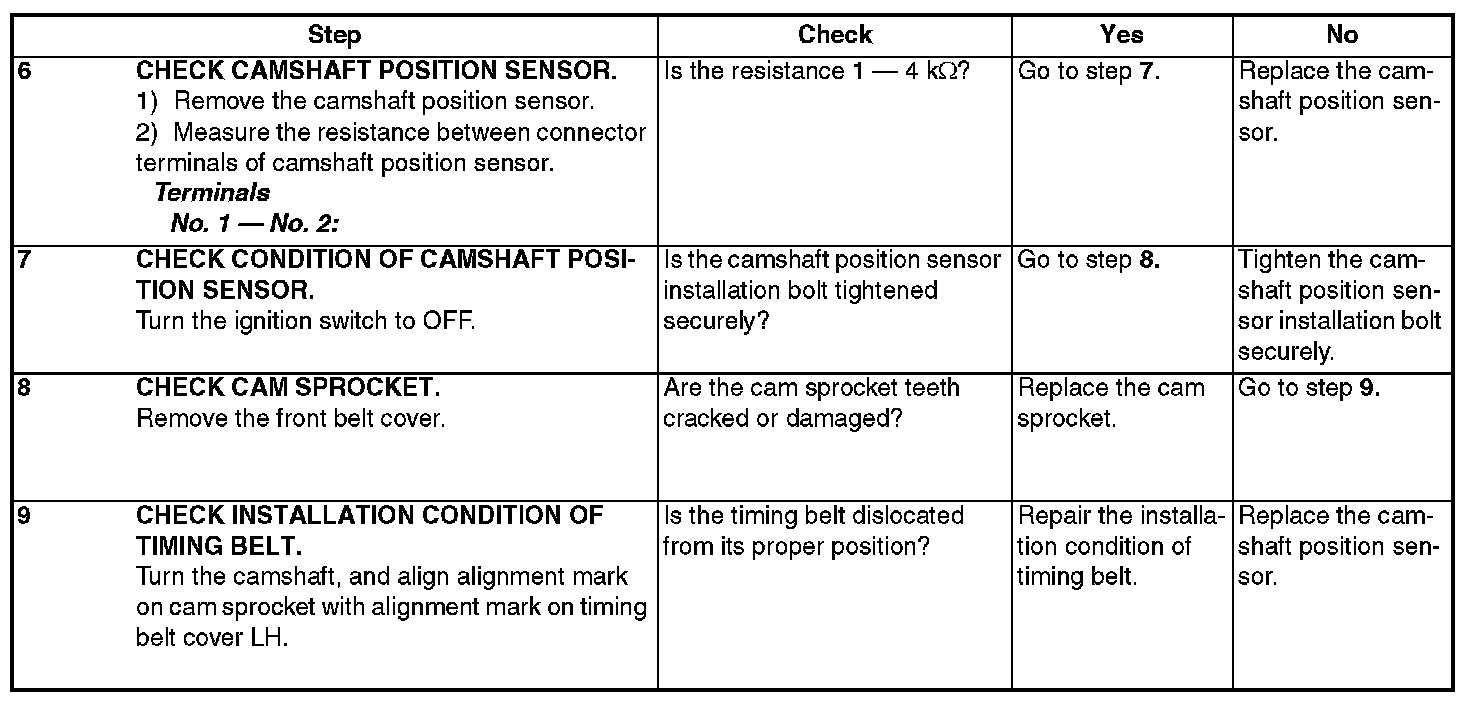

Step 6 - 9:
