P0126
DTC P0126 INSUFFICIENT COOLANT TEMPERATURE FOR STABLE OPERATIONDTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
Engine would not return to idling.
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

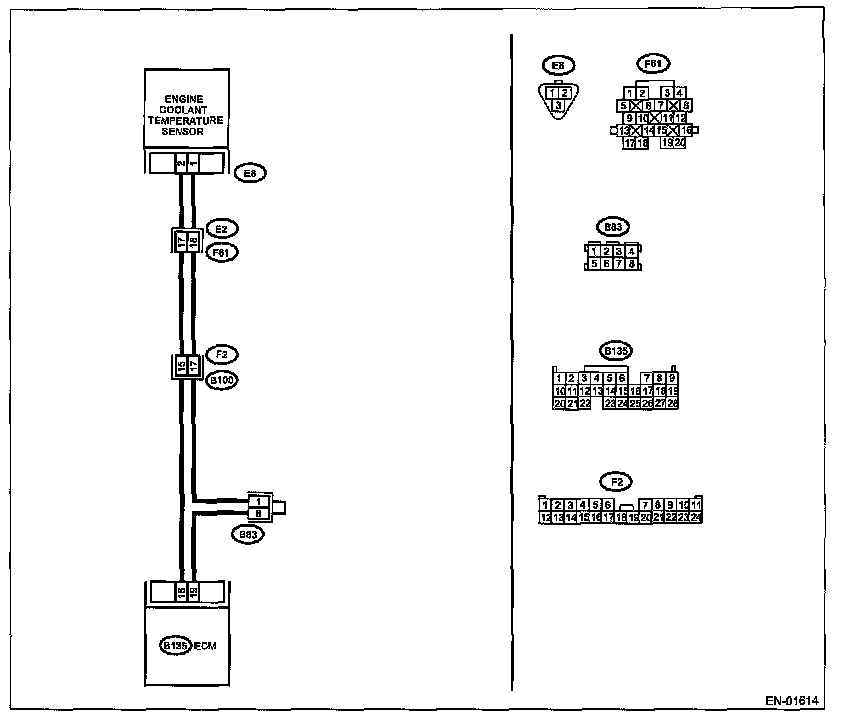

Wiring Diagram:

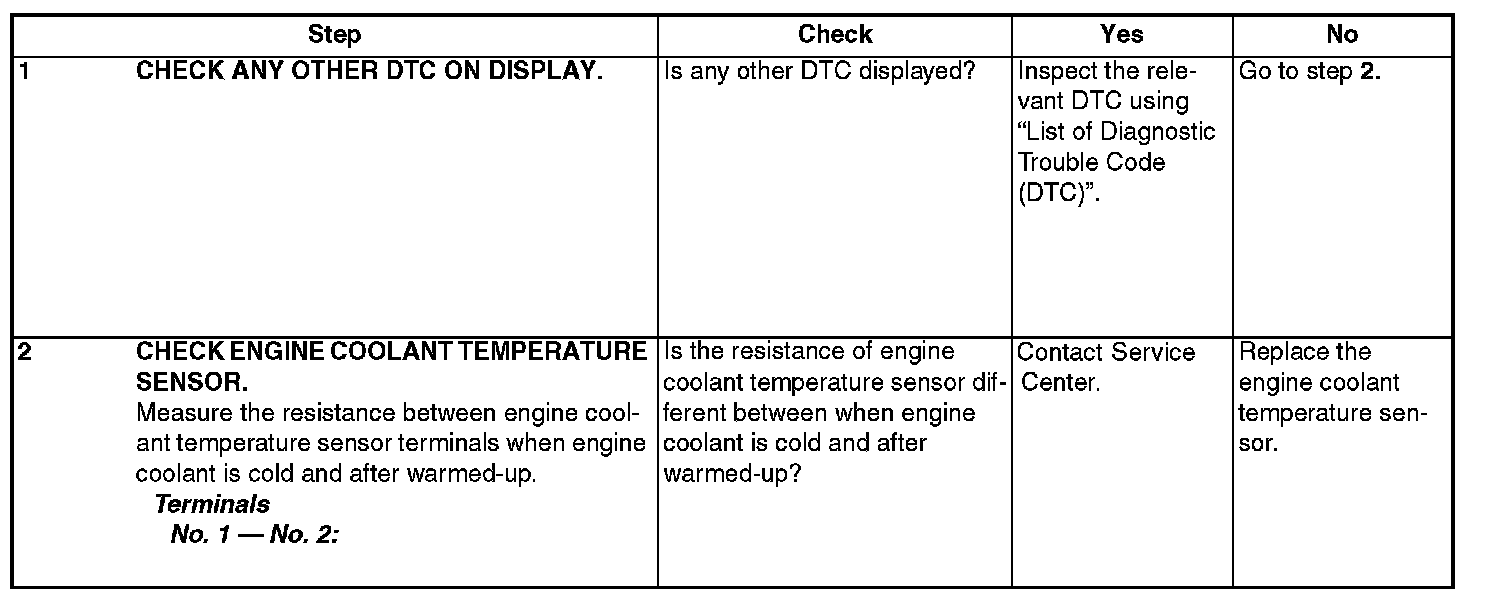

Step 1 - 2:
