P0122

DTC P0122 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A" CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls.
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

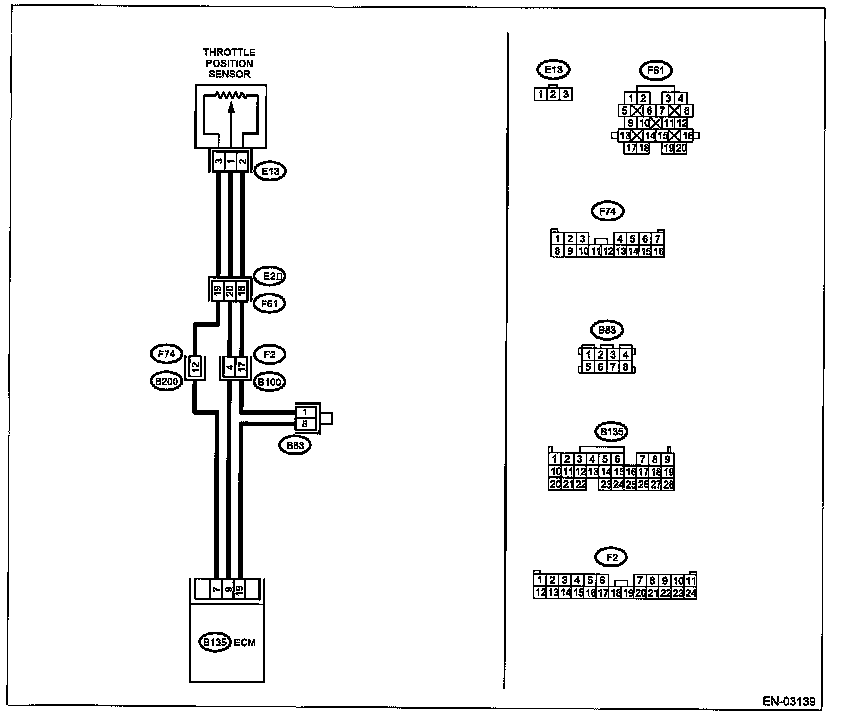

Wiring Diagram:

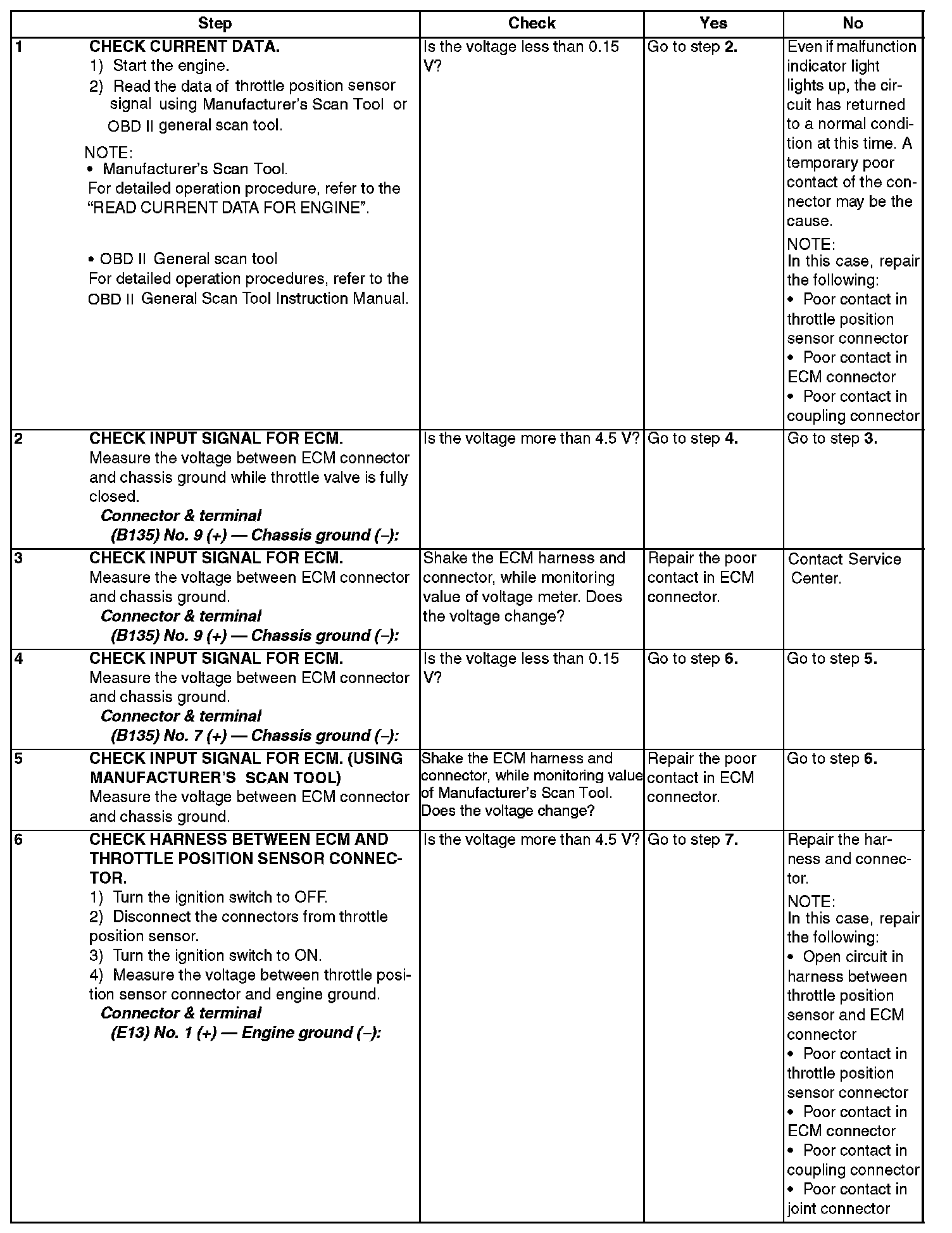

Step 1 - 6:

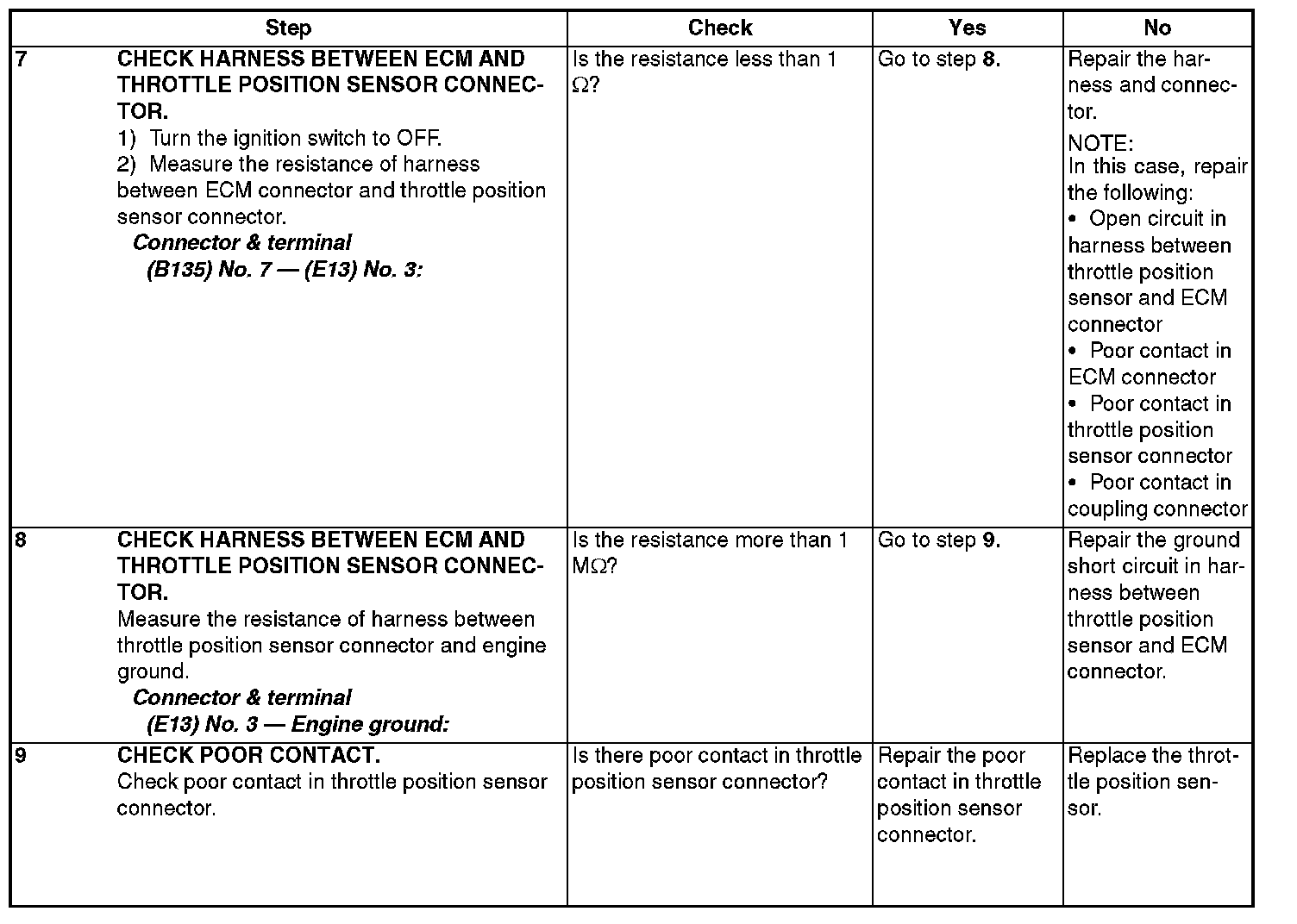

Step 7 - 9:
