P0121
DTC P0121 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A" CIRCUIT RANGE/PERFORMANCEDTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls.
- Poor driving performance
- Fuel is cut.
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

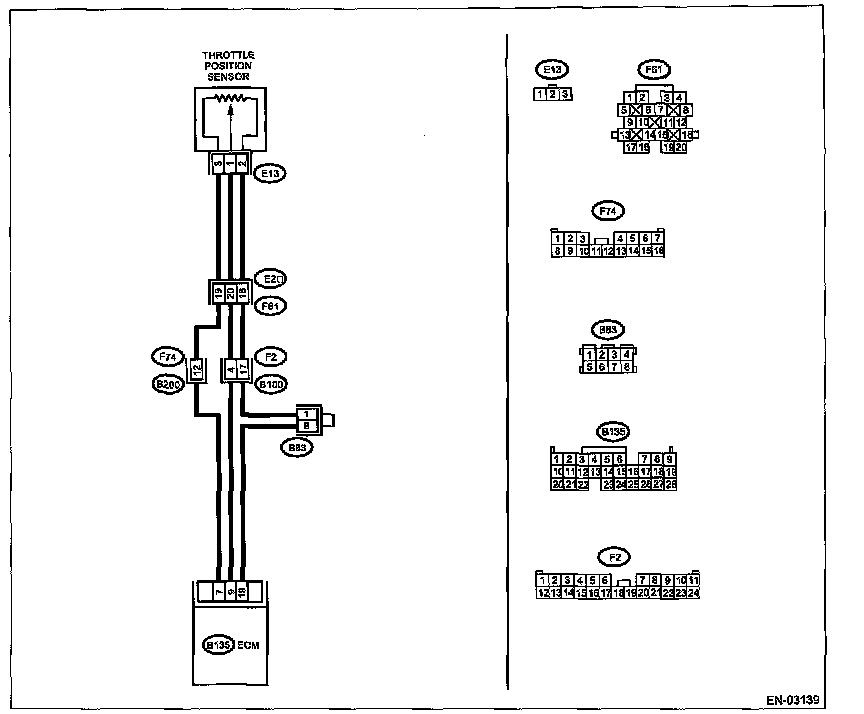

Wiring Diagram:

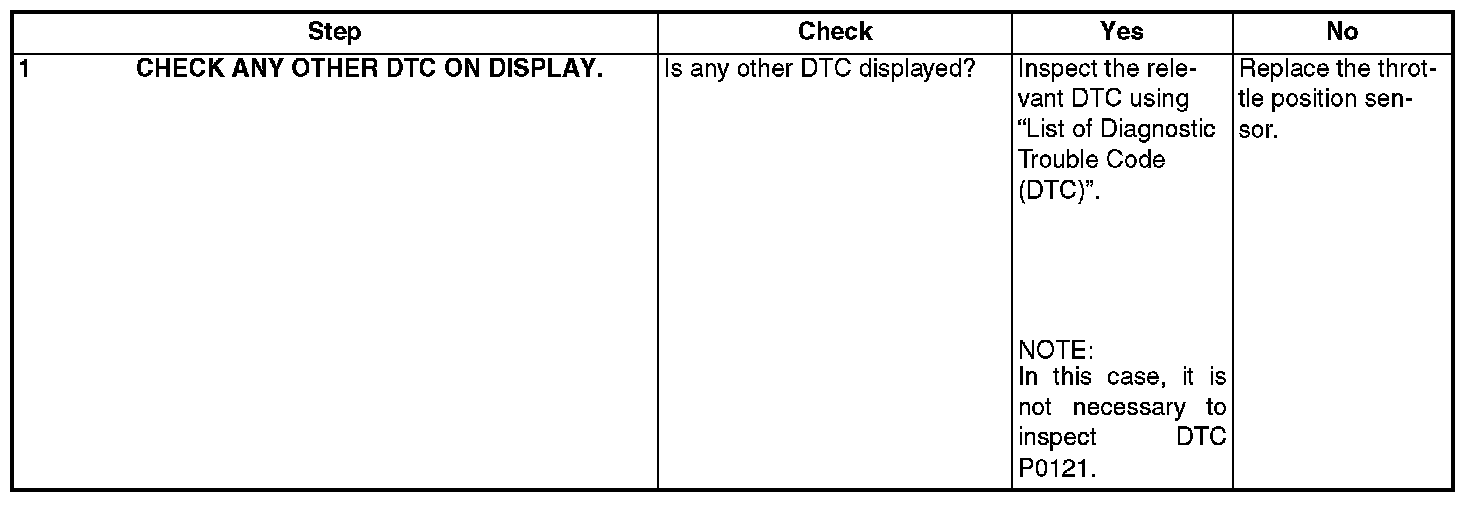

Step 1:
