Transmission Control System

DTC 33 FRONT VEHICLE SPEED SENSOR

Steps 1-7:

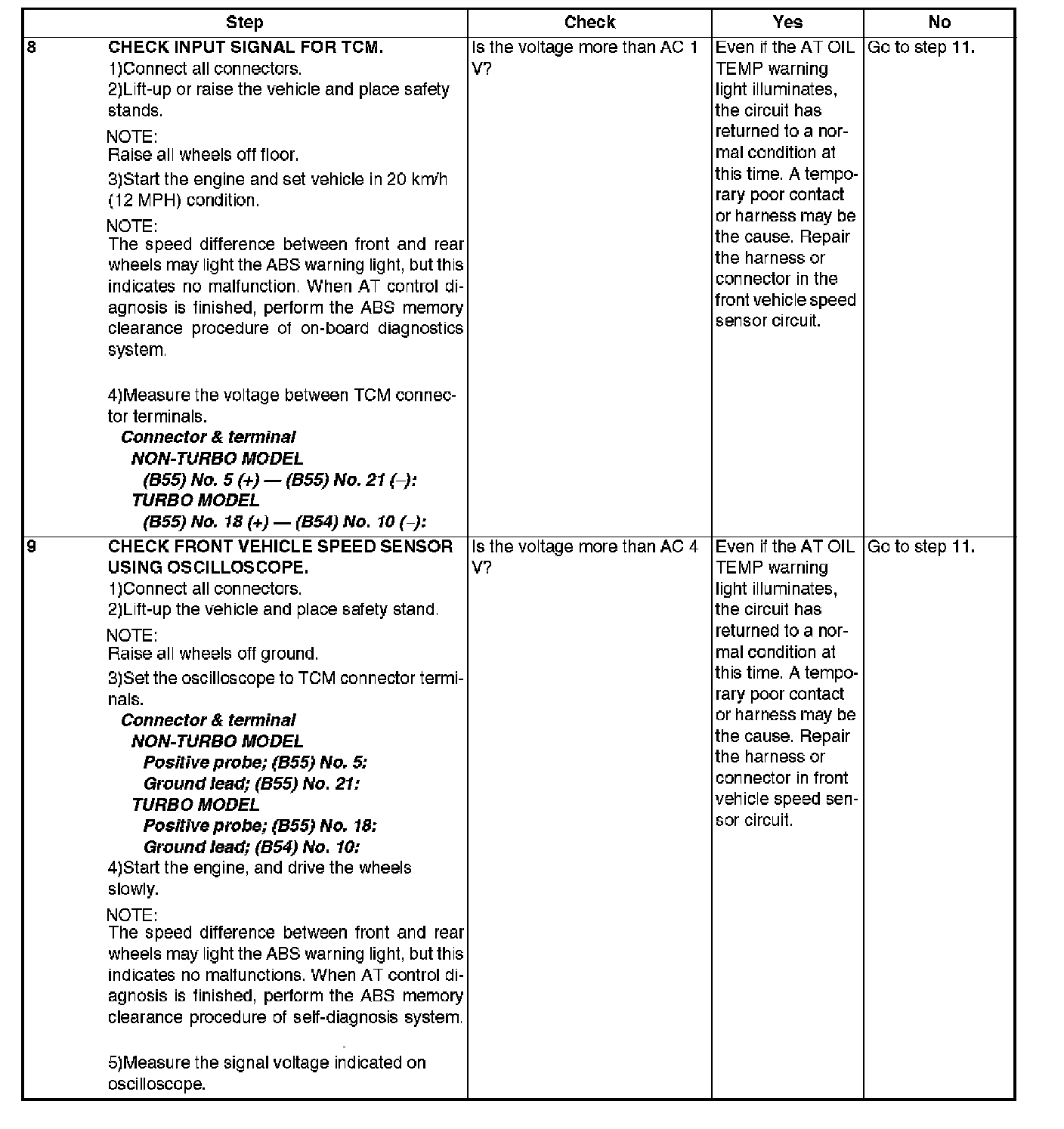

Steps 8 & 9:

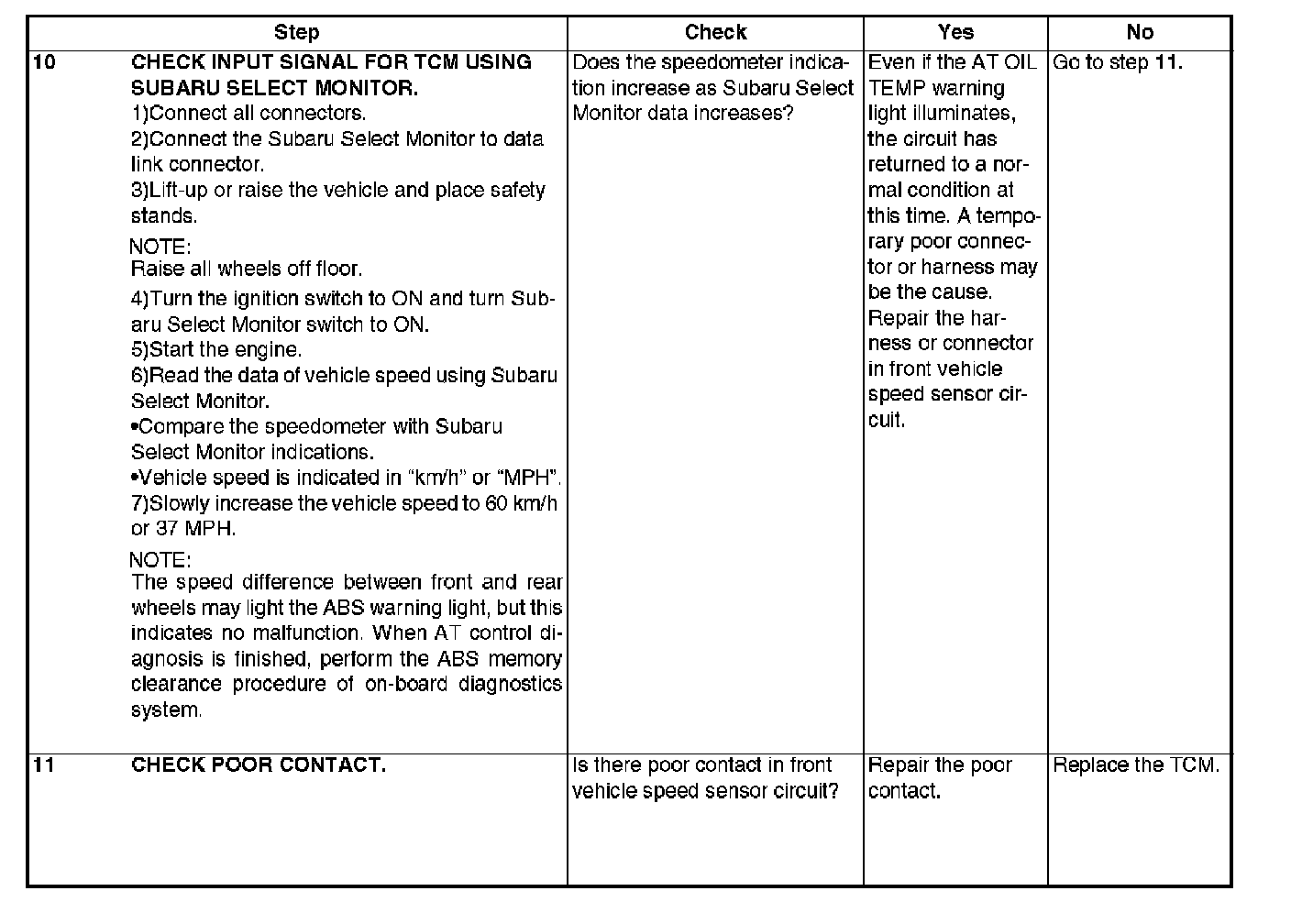

Steps 10 & 11:

DIAGNOSIS:
^ The vehicle speed signal is abnormal.
^ The circuit in combination meter is faulty.
^ The harness connector between TCM and vehicle speed sensor is in short or open.

TROUBLE SYMPTOM:
^ Erroneous idling.
^ Engine stalls.
^ Poor driving performance.

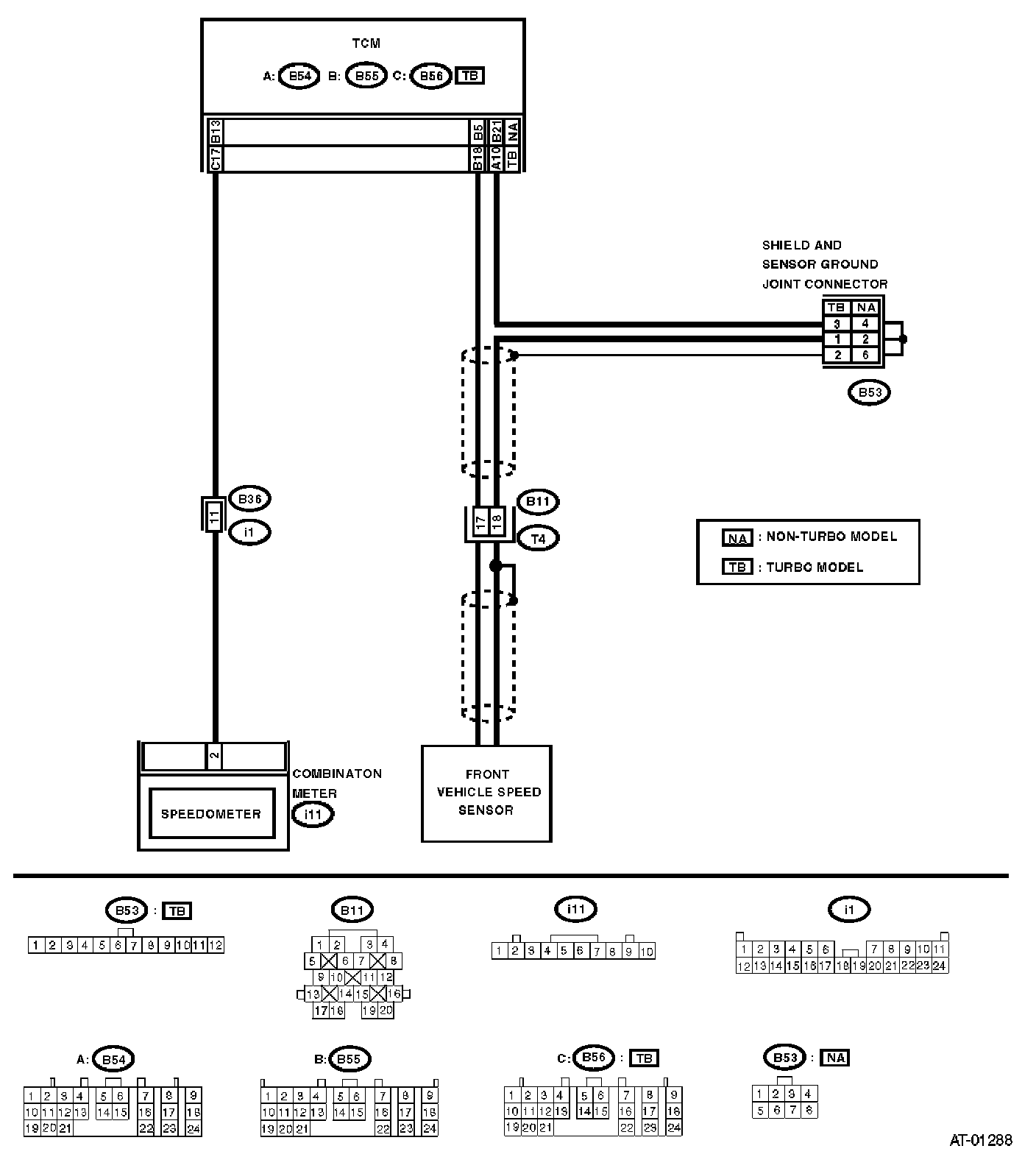

WIRING DIAGRAM
