Transmission Control System

DTC 31 THROTTLE POSITION SENSOR

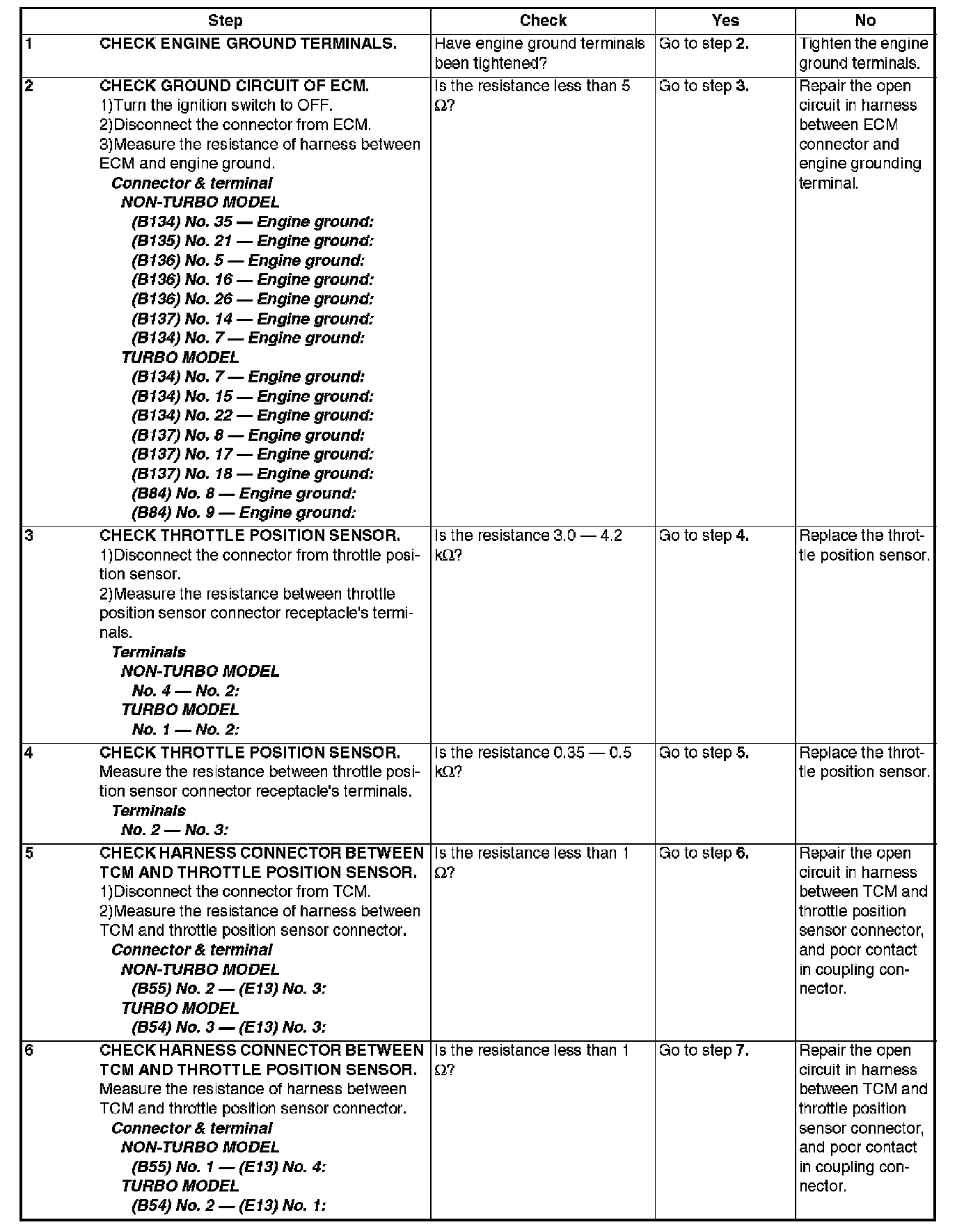

Steps 1-6:

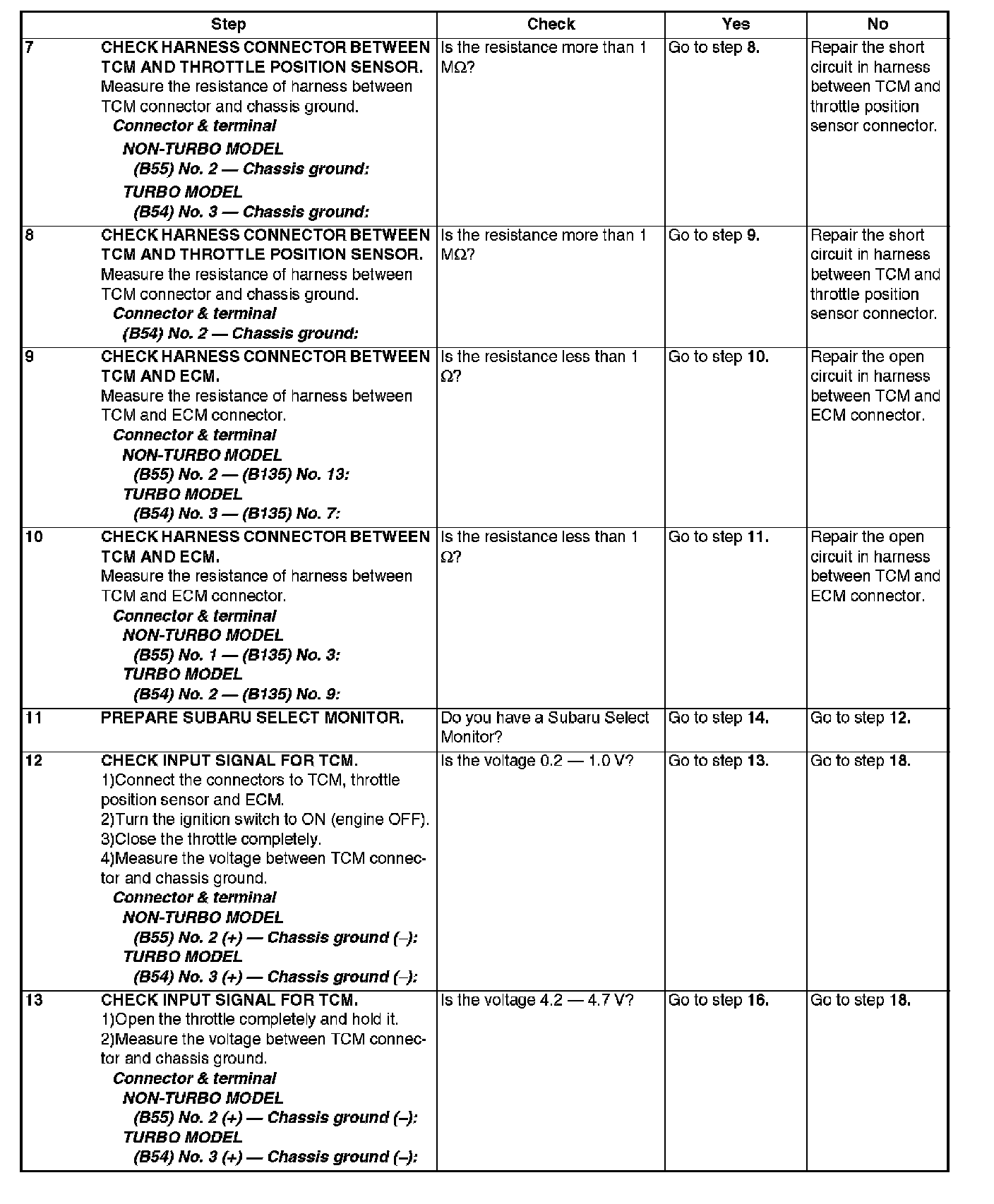

Steps 7-13:

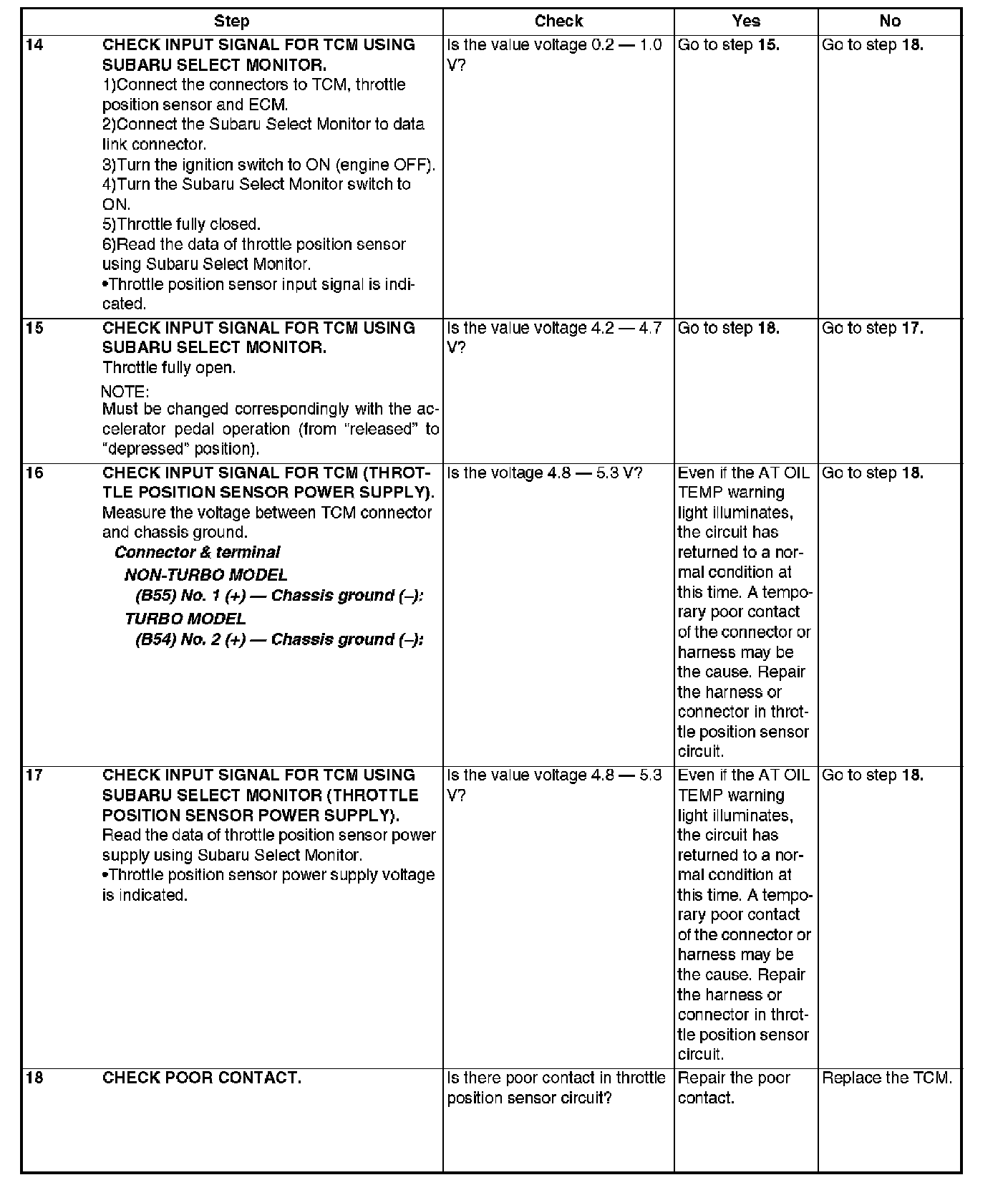

Steps 14-18:

DIAGNOSIS:
The input signal circuit of throttle position sensor is open or shorted.

TROUBLE SYMPTOM:
Shift point too high or too low; excessive shift shock; excessive tight corner "braking".

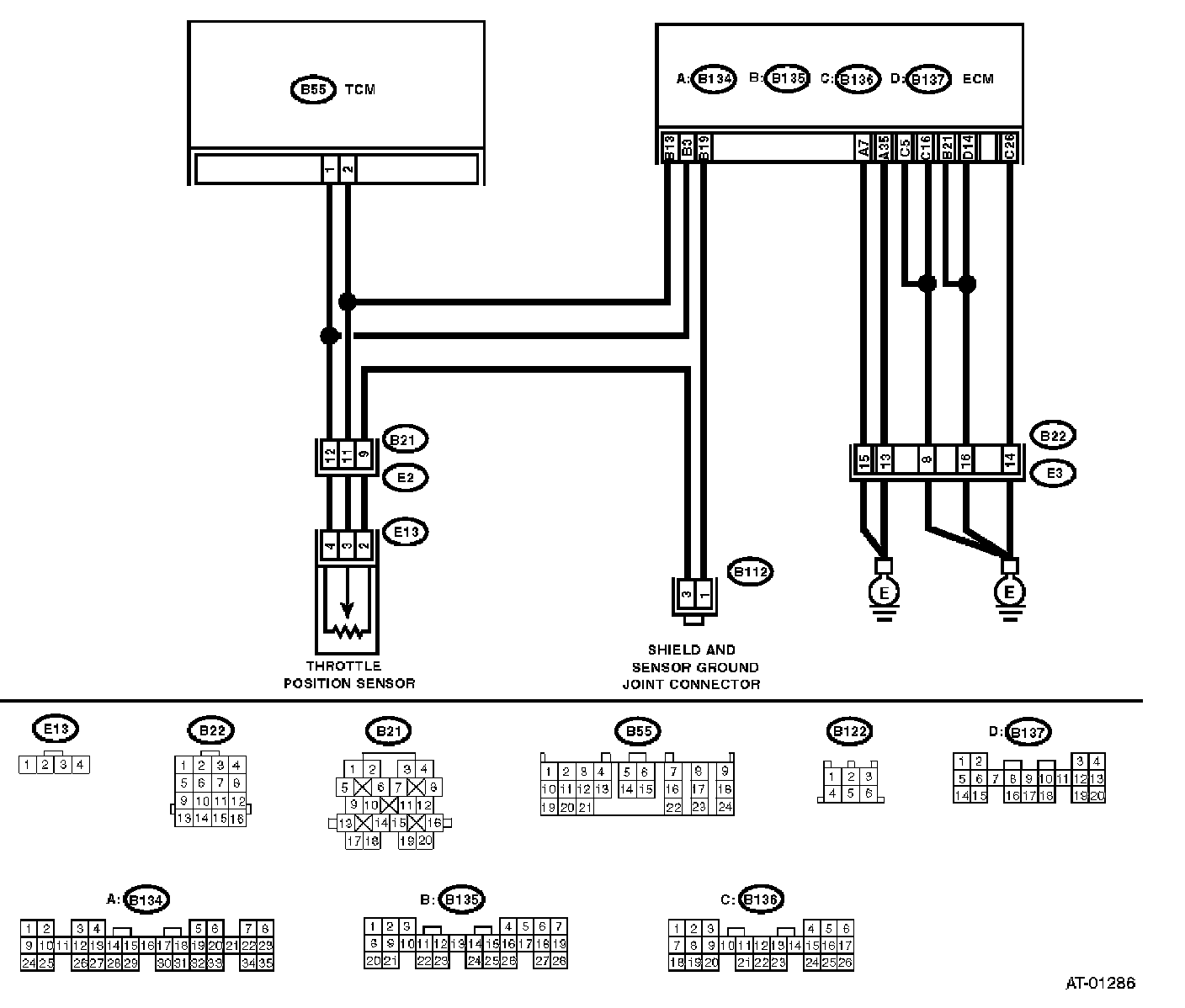

WIRING DIAGRAM
