Restraint System

DTC 23

DTC Detecting Condition
(AB3), (AB7) and (AB8) are not connected properly to airbag control module.

IMPORTANT: Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the ground cable from battery, and wait more than 20 seconds before starting to work.

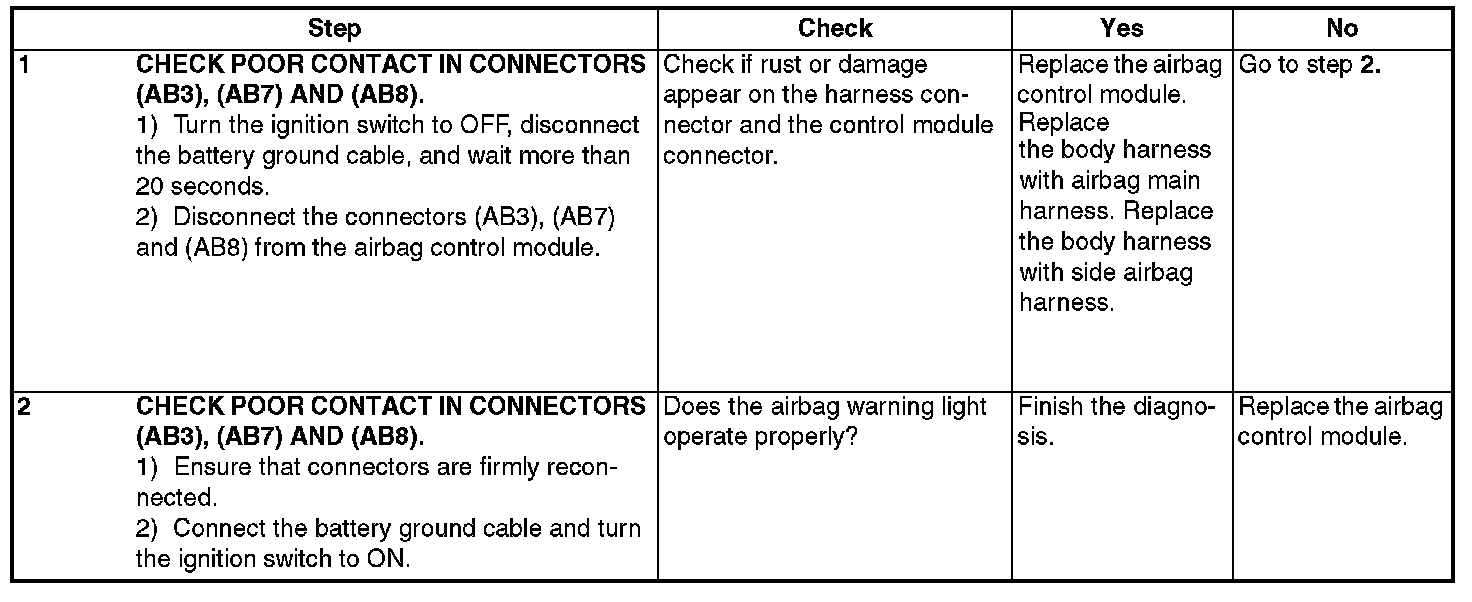

Step 1 - 2:
