Restraint System

DTC 22

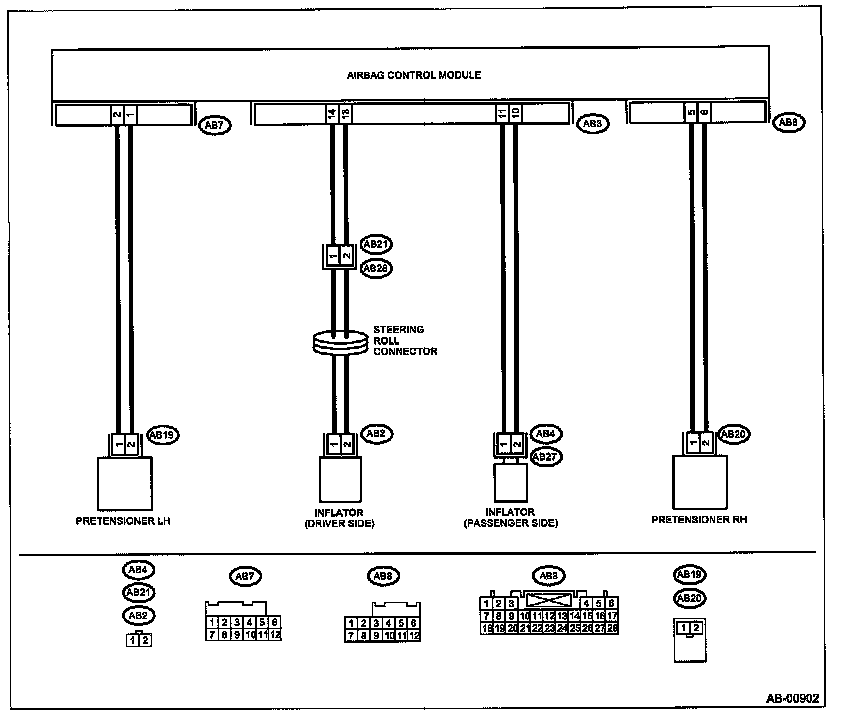

Wiring Diagram:

This DTC is indicated when the front airbag and the pretensioner are deployed.

Once this DTC is indicated, memory is not erasable; therefore replace the following parts.
- Airbag control module
- Driver's airbag module
- Passenger's airbag module
- Front sub sensor of both sides
- Front seat belt outer with pretensioner of both sides
