Restraint System

DTC 21

DTC Detecting Condition:
Airbag control module is faulty.

IMPORTANT
- Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the ground cable from battery, and wait more than 20 seconds before starting to work.
- Before replacing the airbag module, seat belt pretensioner roll connector, control module, and sensor, reconnect each part and confirm that the warning light operates properly.

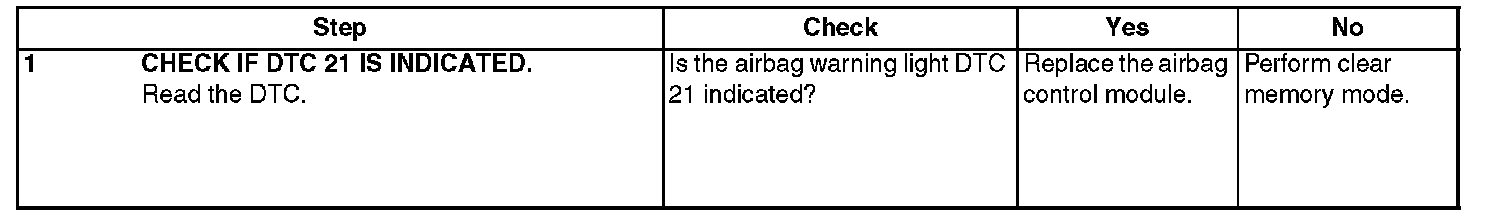

Step 1:
