Washer Pump, Rear Window

Washer Pump, Rear Window

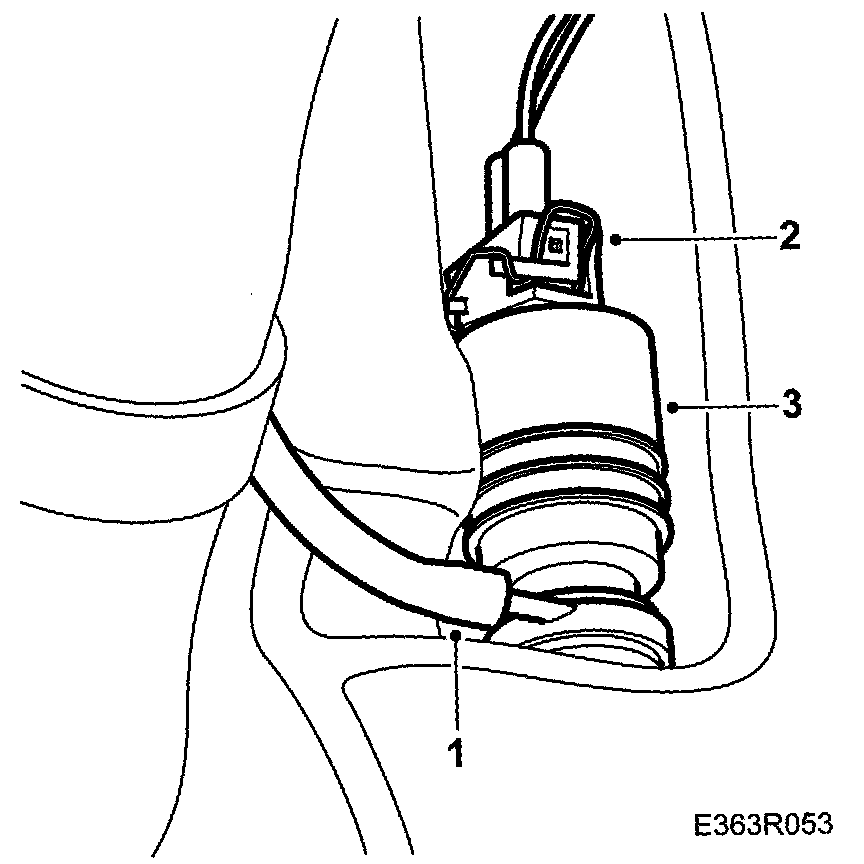

To remove
1. Drain the washer fluid reservoir.
2. Raise the car.
3. Detach the washer pump from the washer fluid reservoir.







4. Unplug the pump.
5. Detach the pump hose.

To fit

1. Connect the pump hose.







2. Plug in the pump.
3. Press the washer pump onto the washer fluid reservoir.
4. Lower the car.
5. Fill with washer fluid.
