Longitudinal Link

Longitudinal Link

Removal
1. Raise the car and remove the wheel.

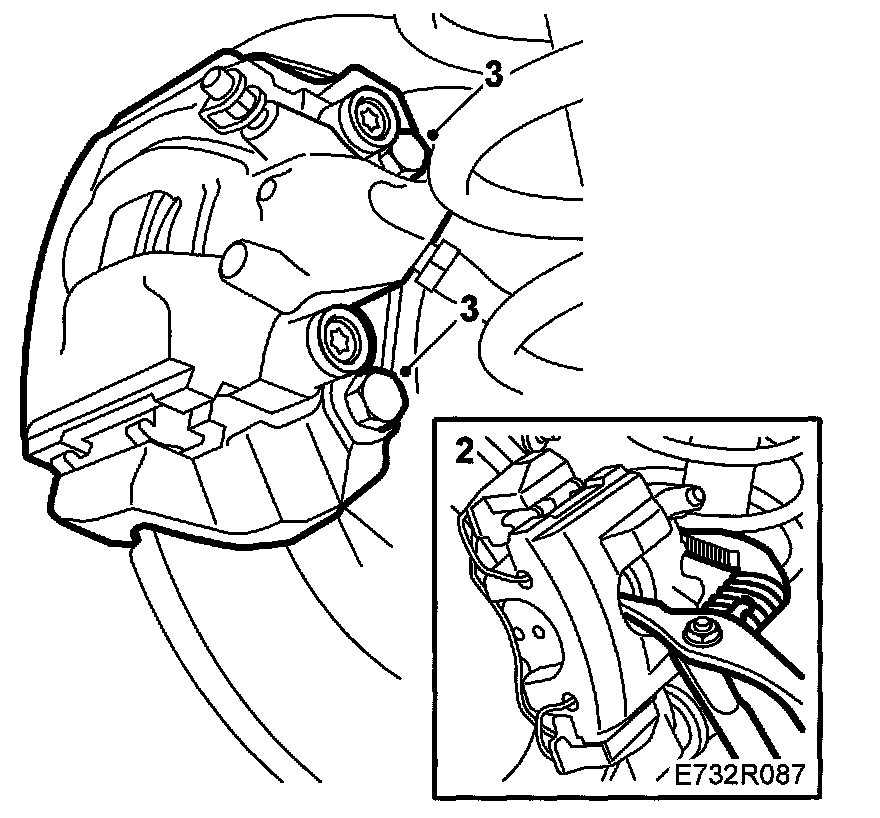

2. Press the brake piston back using a pair of slip joint pliers.





3. Remove the brake caliper and hang it up.
4. Remove the air deflector.

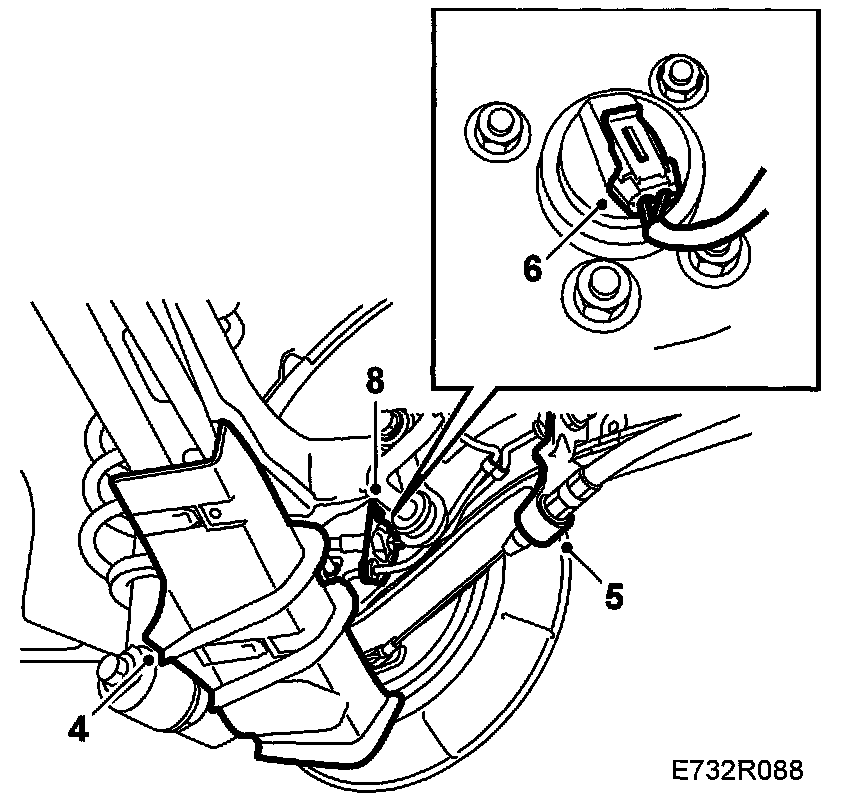

5. Remove the bolt securing the Handbrake cable bracket.
6. Unplug the connector from the wheel sensors
7. Detach the wheel sensor cable from the holder.

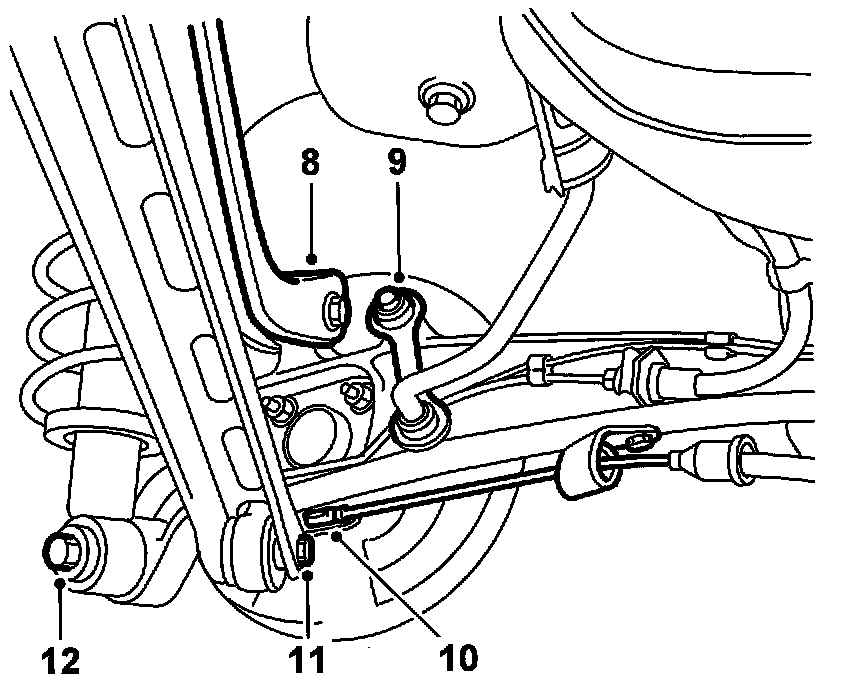

8. Remove the nuts from the wheel sensor cable mounting and the brake pipe.

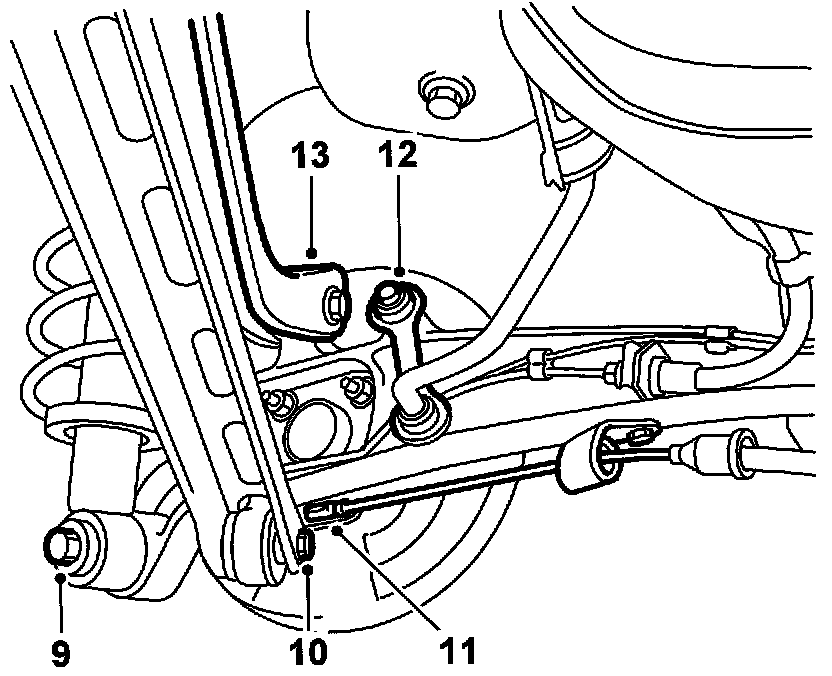

9. Remove the damper's lower retaining bolt.





10. Remove the bolt securing the lower transverse link to the longitudinal link.

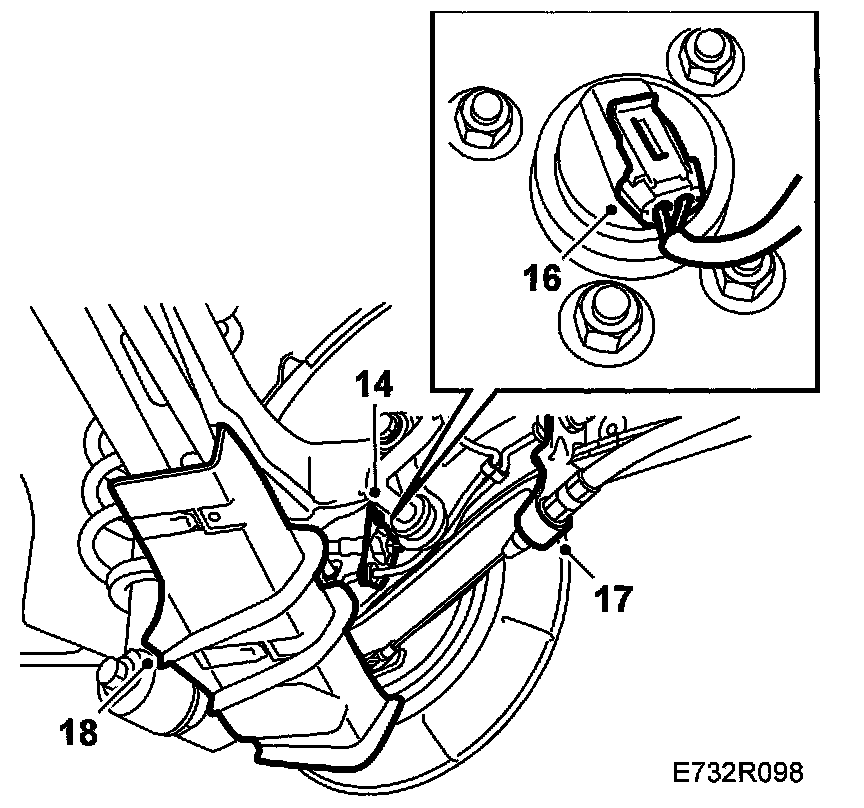

11. Unhook the Handbrake cable's return spring and remove the cable.
12. Remove the bolt securing the anti-roll bar link to the longitudinal link.

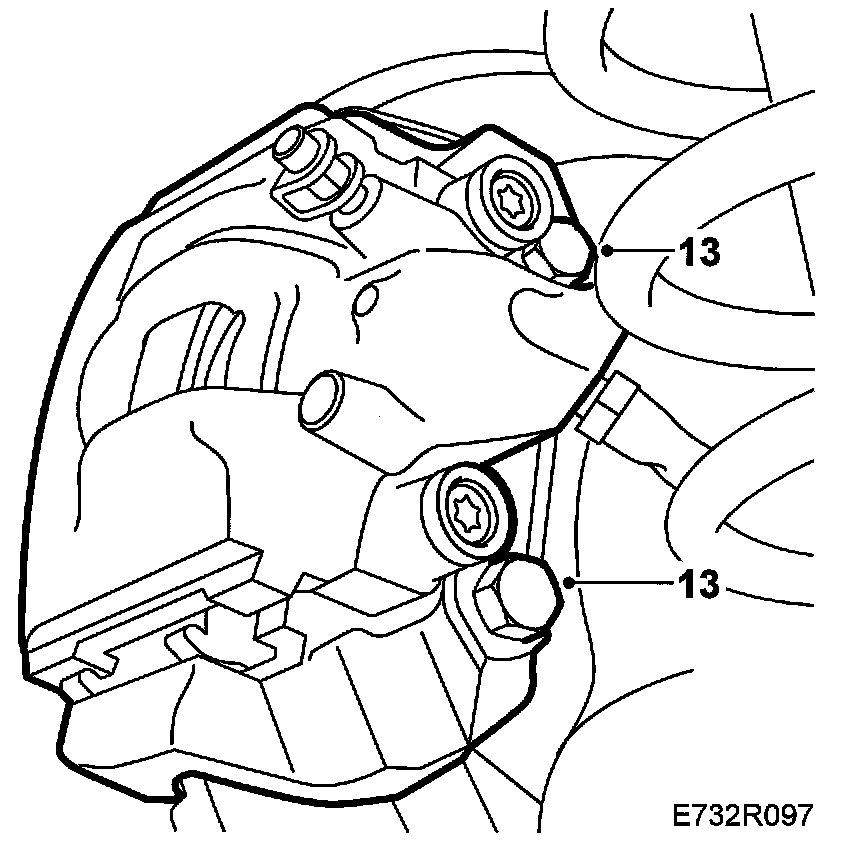

13. Remove the bolt securing the upper transverse link to the longitudinal link.

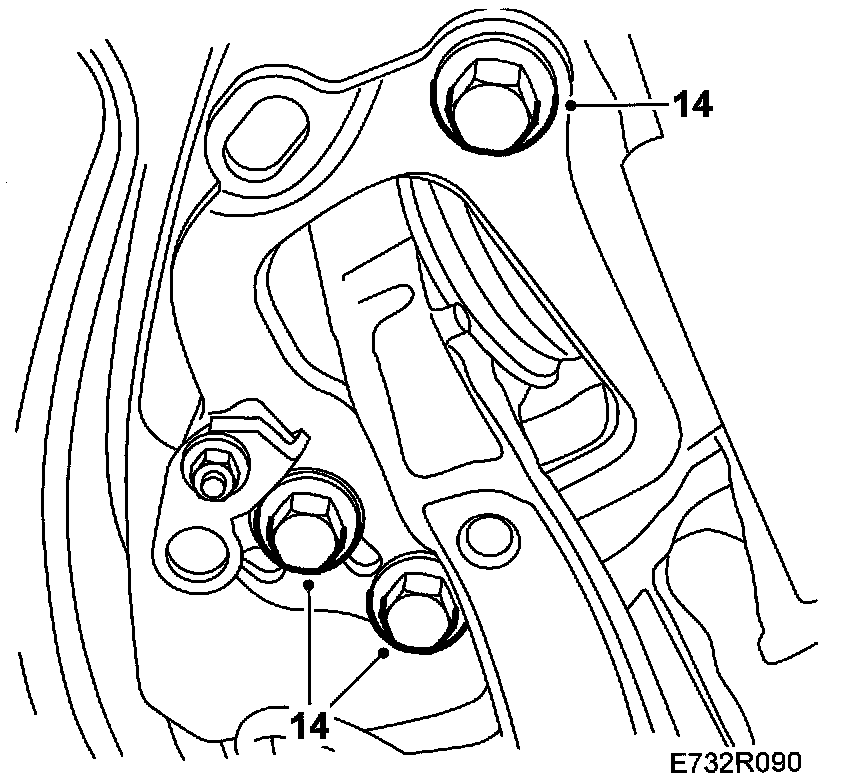

14. Remove the bolts securing the longitudinal link to the car body and lower away the link with hub and brake disc.

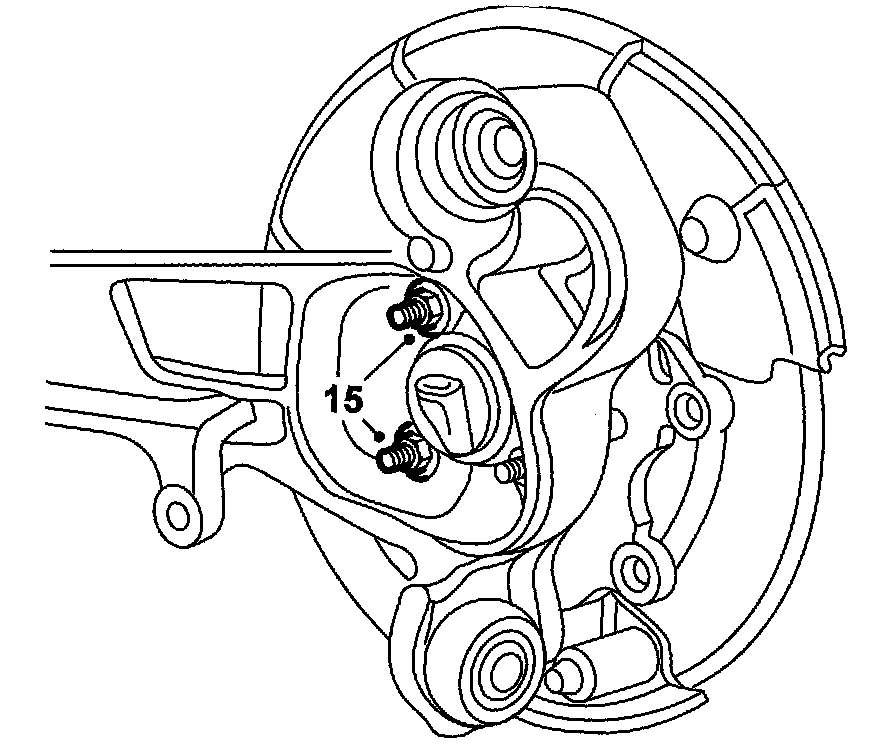

15. Remove the rear wheel hub with disc back plate from the longitudinal link (4 nuts).





16. Clamp
