Damper, Longitudinal Link

Damper, Longitudinal Link

To Remove





1. Lift the car.
2. Undo the nut and remove the damper.

To Fit

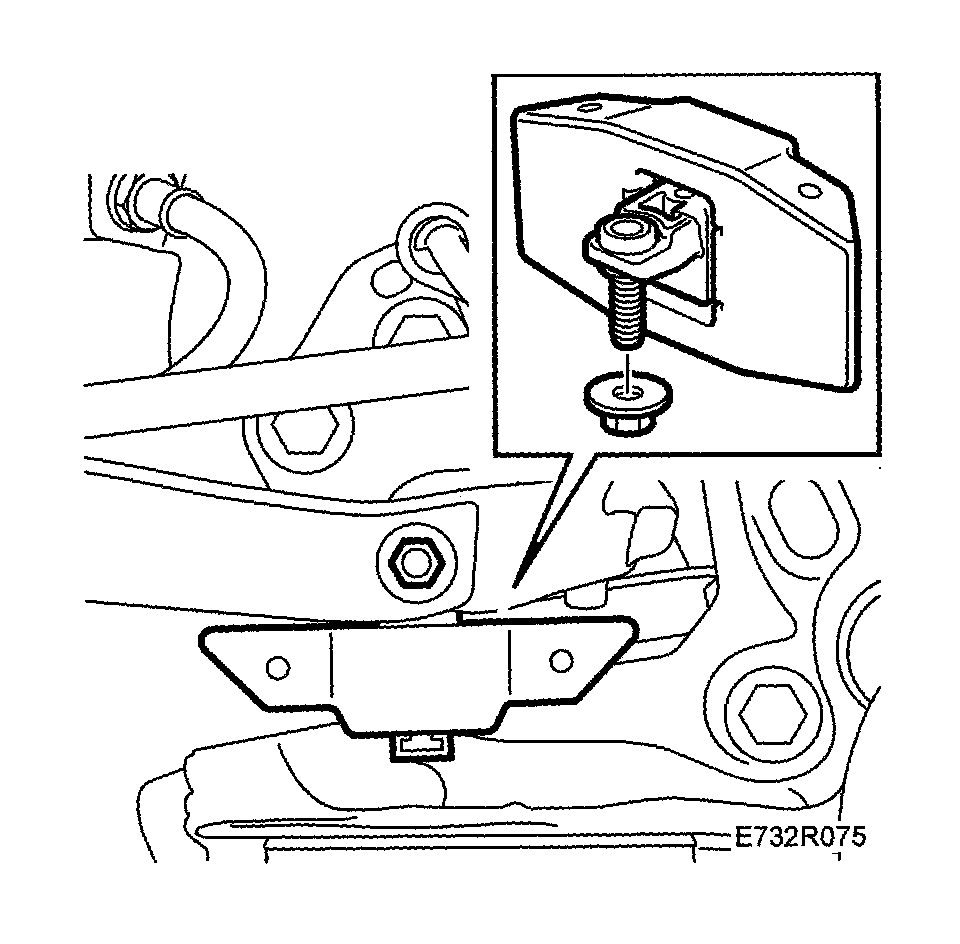

1. Fit the damper on the longitudinal link.

NOTE: It is essential that the damper housing goes clear of the longitudinal link.

2. Fit the nut.
Tightening torque 24 Nm (18 ft. lbs.)
3. Lower the car to the floor.
