Bush, Longitudinal Link
Bush, Longitudinal LinkTo Remove
1. Remove the longitudinal link.
2. Clamp the longitudinal link in a vice.
3. Saw pieces off the edge of the bush, as shown.

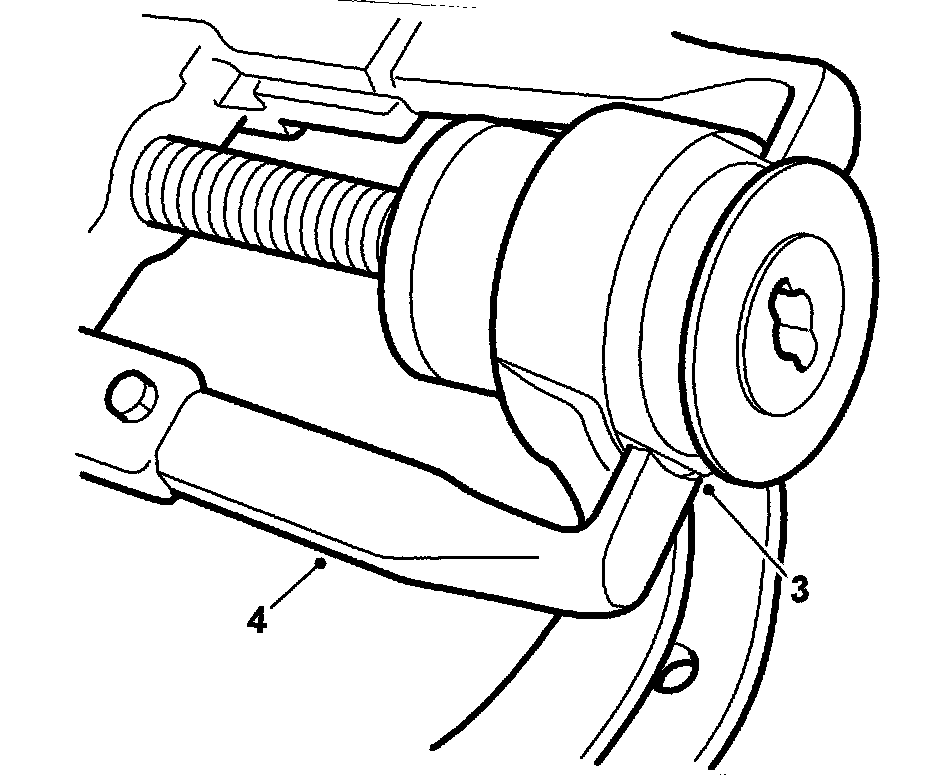

4. Use 87 91 287 Puller, 150 mm and 89 96 761 Set of press sleeves, rear axle (KM-906-41) to press out the bush.
To Fit

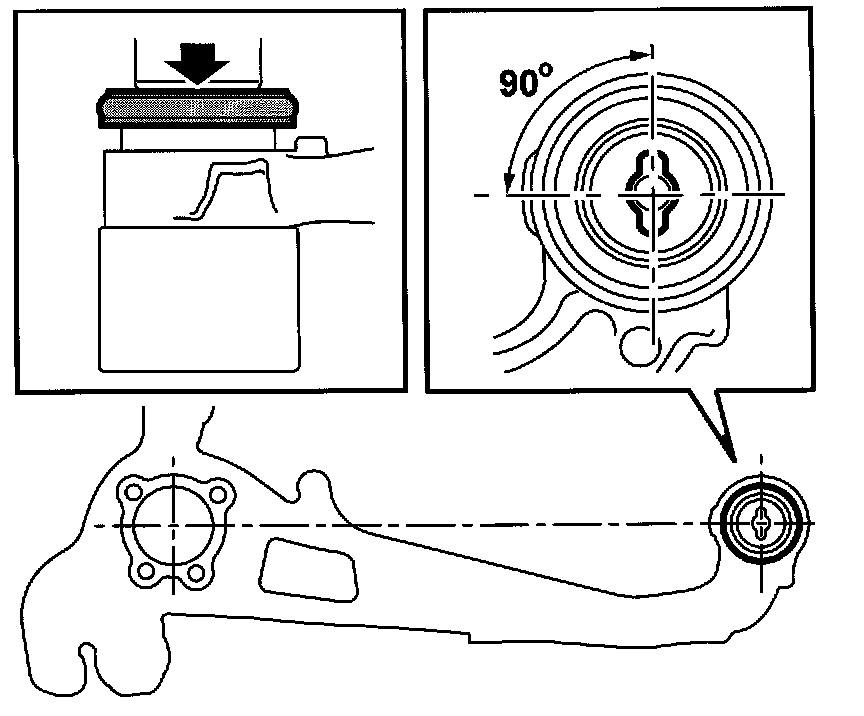

1. Position the bush correctly, see illustration.
2. Press it in using 89 96 761 Set of press sleeves, rear axle (KM-906-42) as a support.

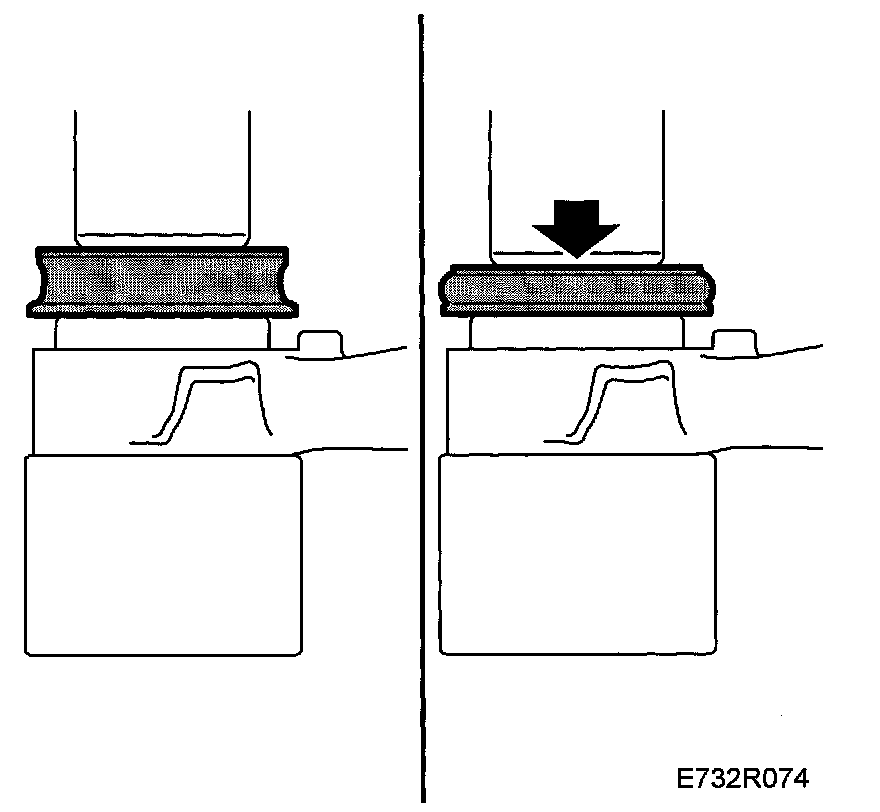

NOTE: The rubber will swell on the sides, which is completely normal.
3. Fit the longitudinal link.
