Front Bumper

Wiring Harness, Front Bumper

To remove

NOTE:
- If the car is equipped with a radio other than a genuine Saab radio, check that the customer has the radio code before commencing work.
- Disconnect the negative battery cable.

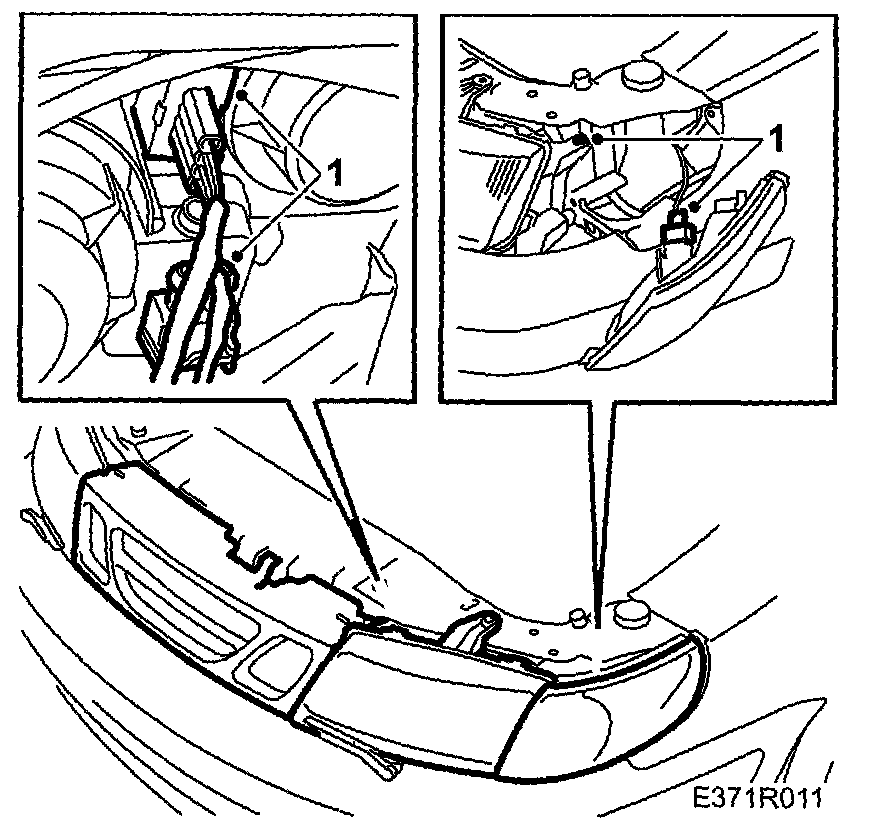

1. Remove the left direction indicator and the headlamp.







2. Disconnect the battery drain hose from the 6-pin connector.

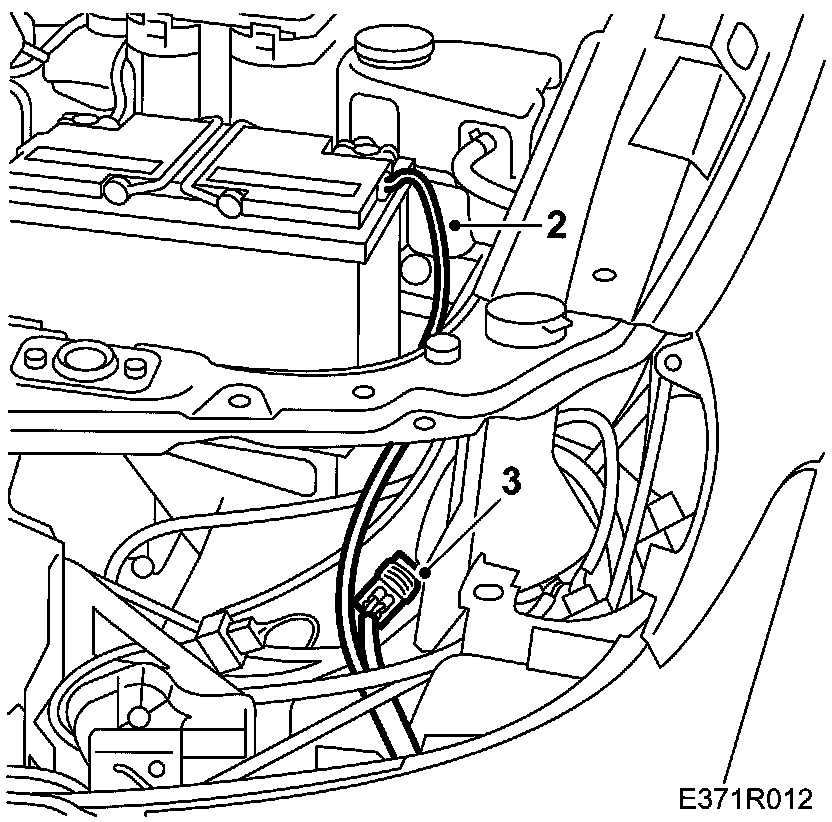

3. Part the 6-pin connector for the bumper wiring harness.
4. Raise the car.
5. Remove the lower front cover.







6. Unplug the outside temperature sensor and the fog lights.

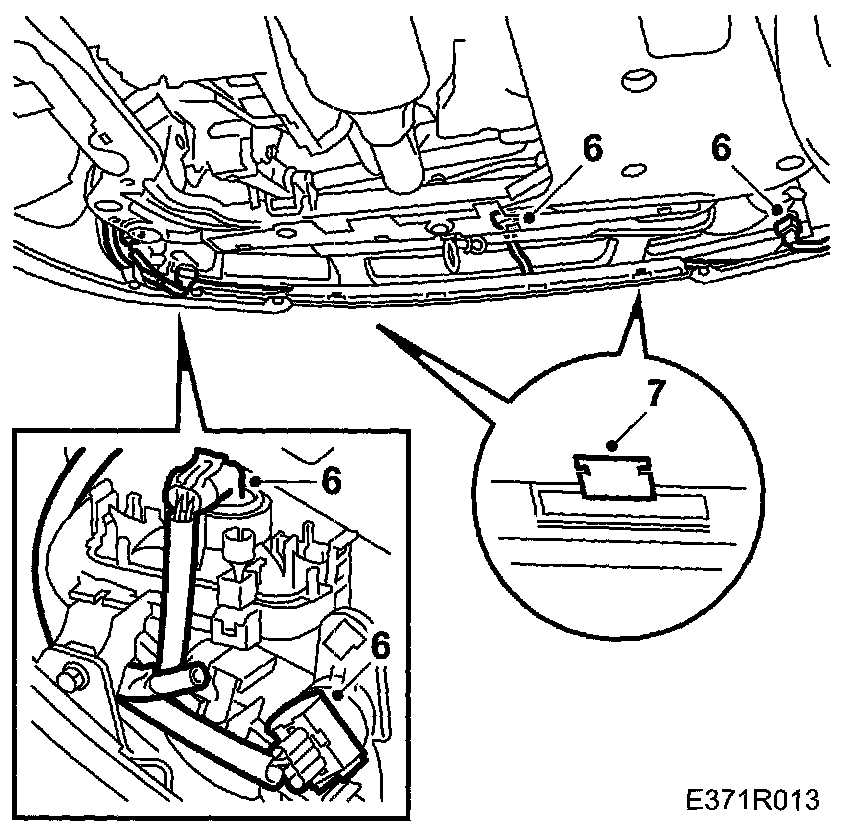

7. Remove the wiring harness from its mounting points (2).

To fit

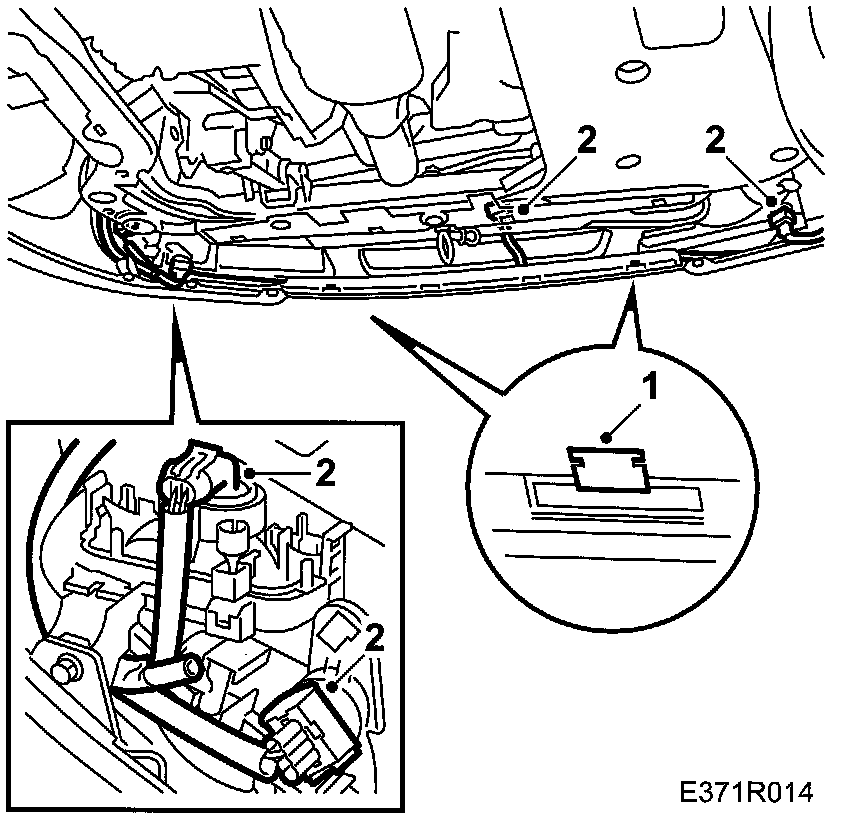

1. Position the wiring harness as before and secure it with the two clamps.
2. Plug in the outside temperature sensor and the fog lights.
3. Fit the lower front cover.
4. Lower the car.

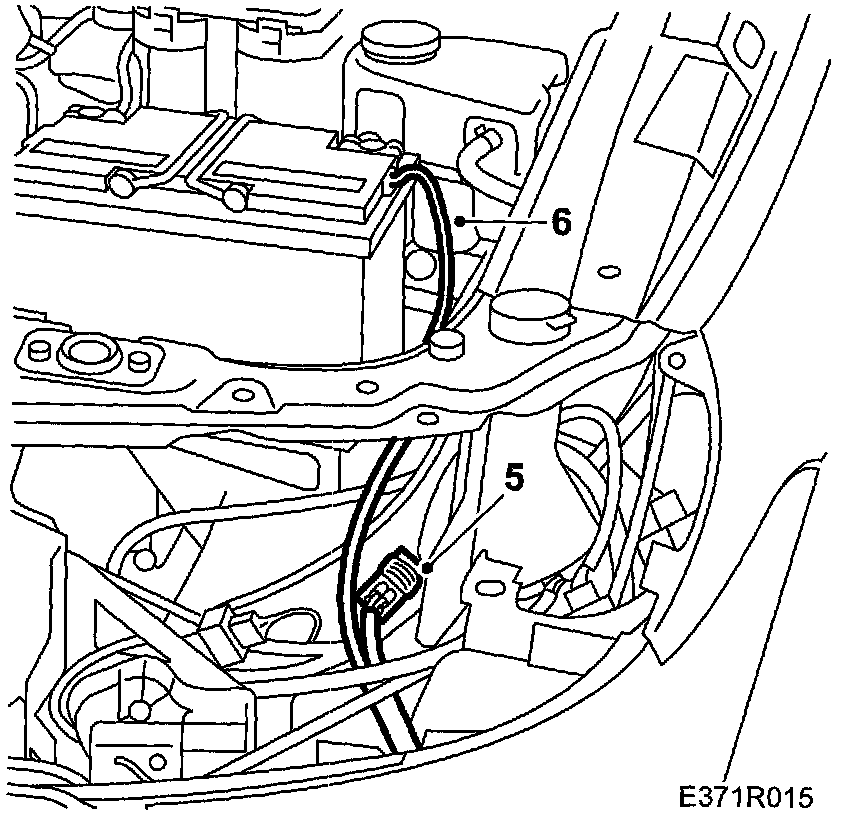

5. Assemble the 6-pin connector.







6. Connect the battery drain hose.

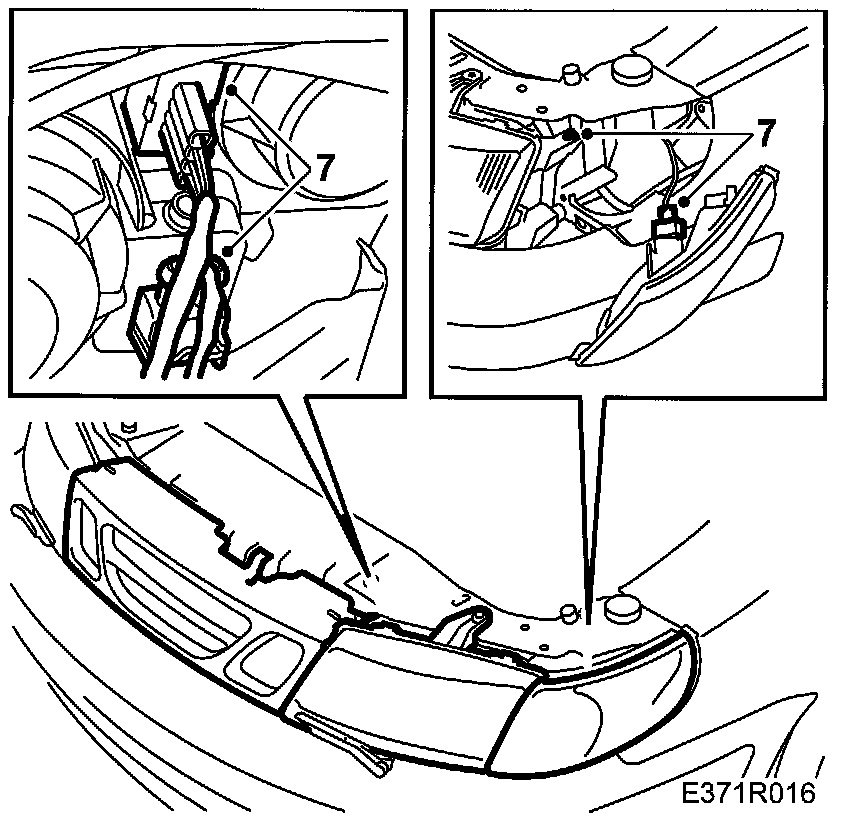

7. Fit the left direction indicator and the headlamp.







8. Adjust the main beam and dipped beam as well as the fog lights.

IMPORTANT:
- Fasten the wiring harness correctly so that there is no risk of it scraping or rattling.
- Check all rubber grommets to minimize the risk of leakage.


NOTE: Spray all the connectors (with the exception of the oxygen sensor) with "Kontakt 61" to prevent copper rust from forming. Clean the grounding points and apply them with Vaseline.
