Rear - Wagon



Wiring Harness, Rear

5D

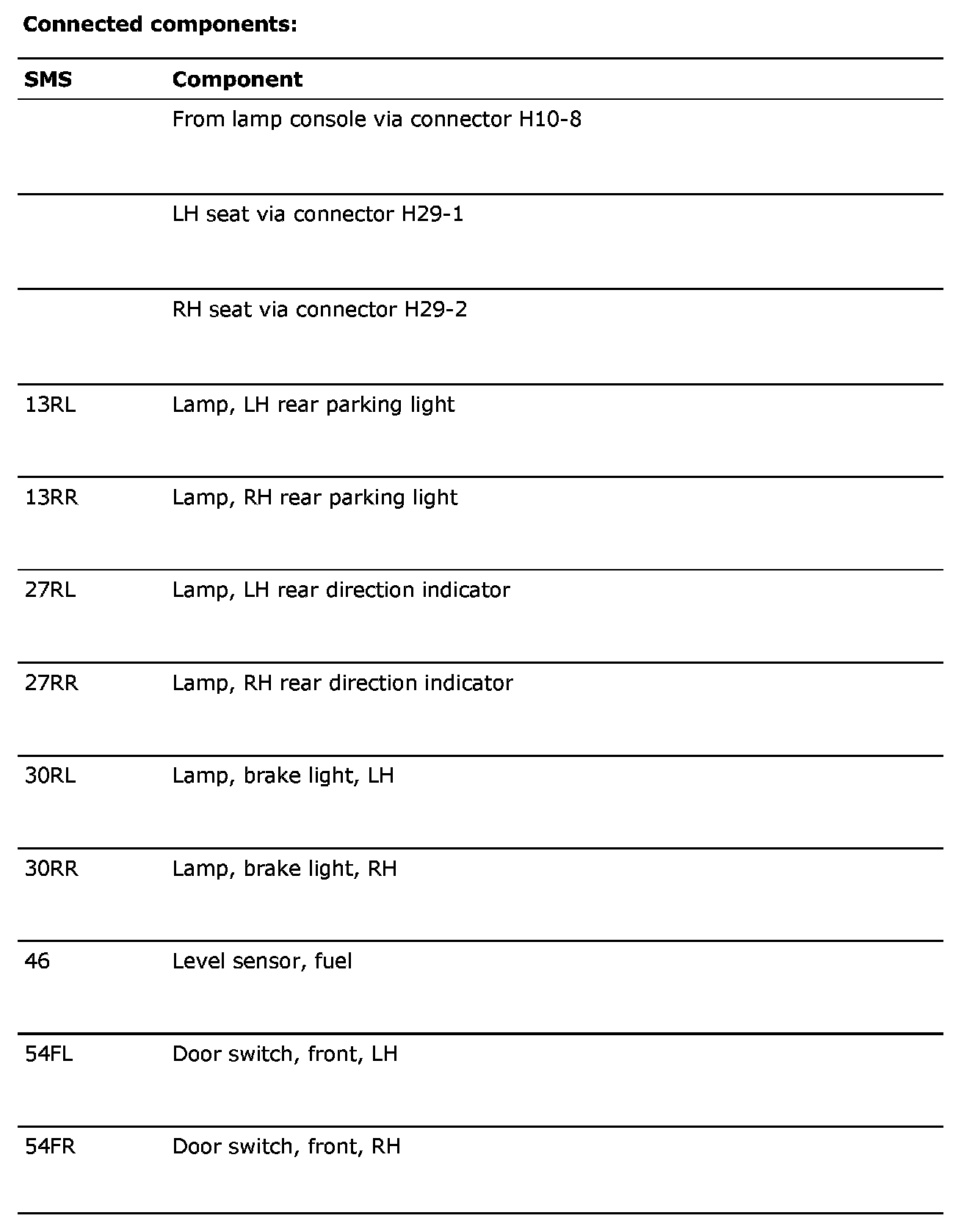

Connected Components Part 1:

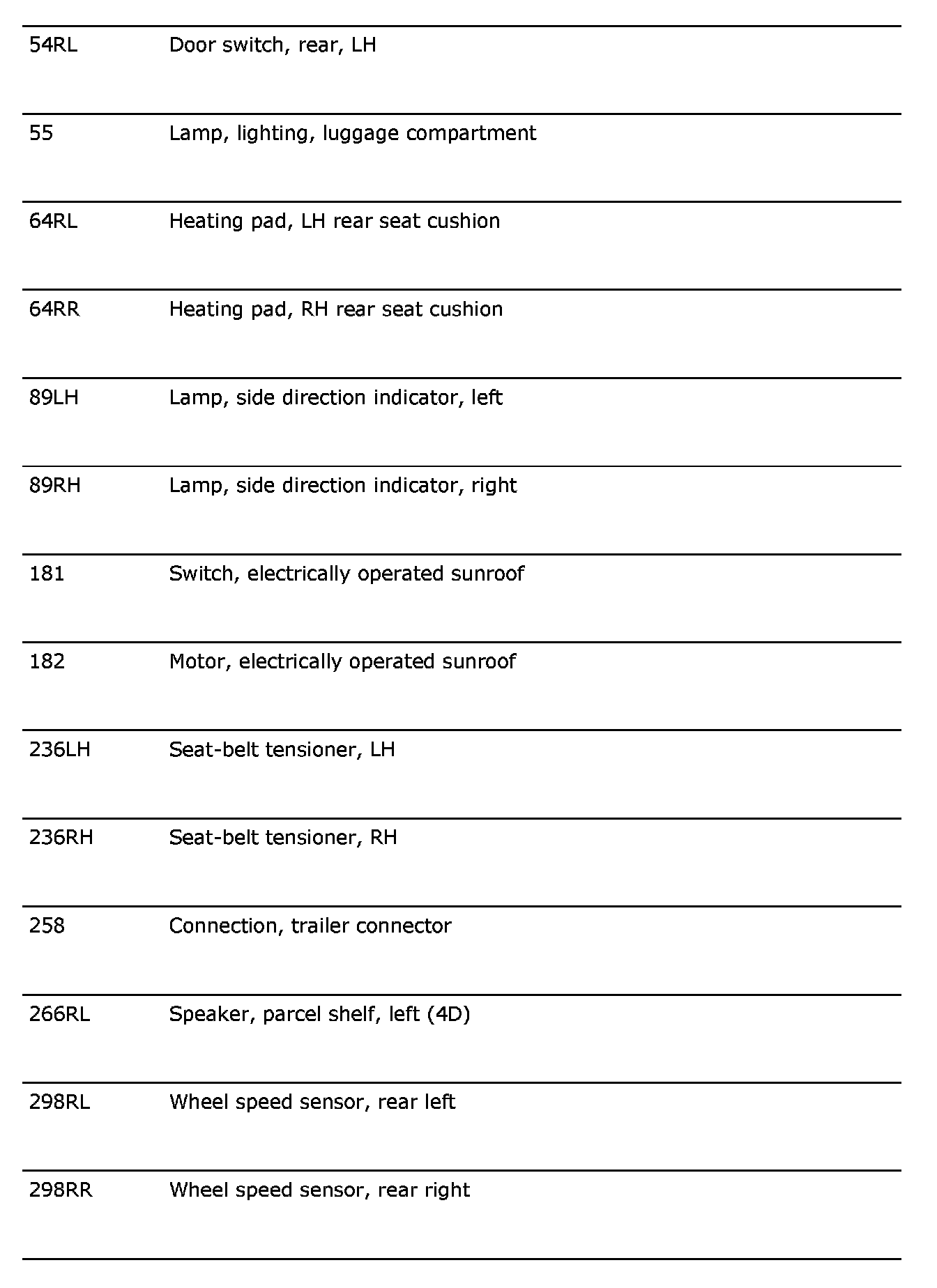

Connected Components Part 2:

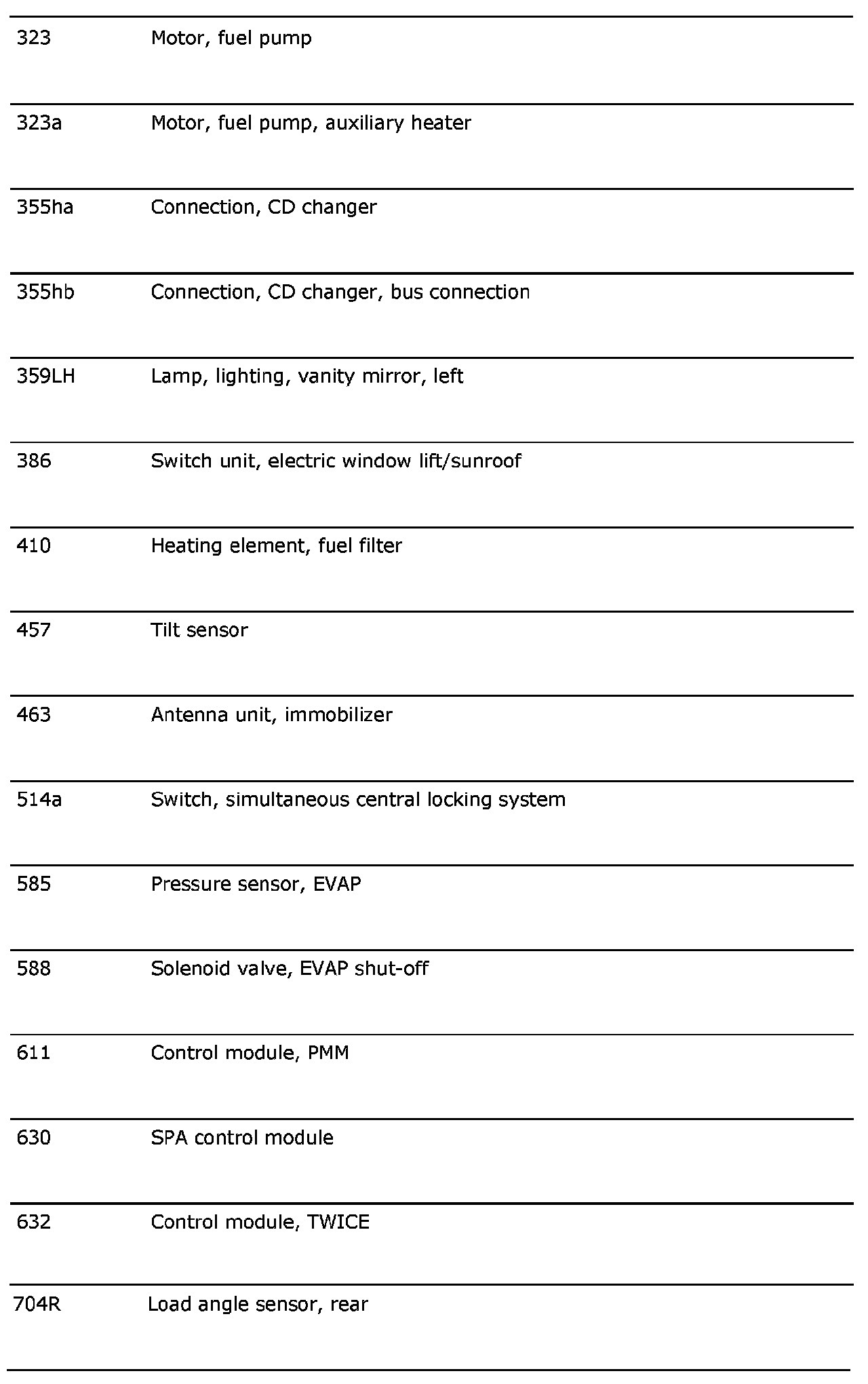

Connected Components Part 3:
