Amplifier
>>
Test Readings, Amplifier Connections
Test Readings, Amplifier Connections

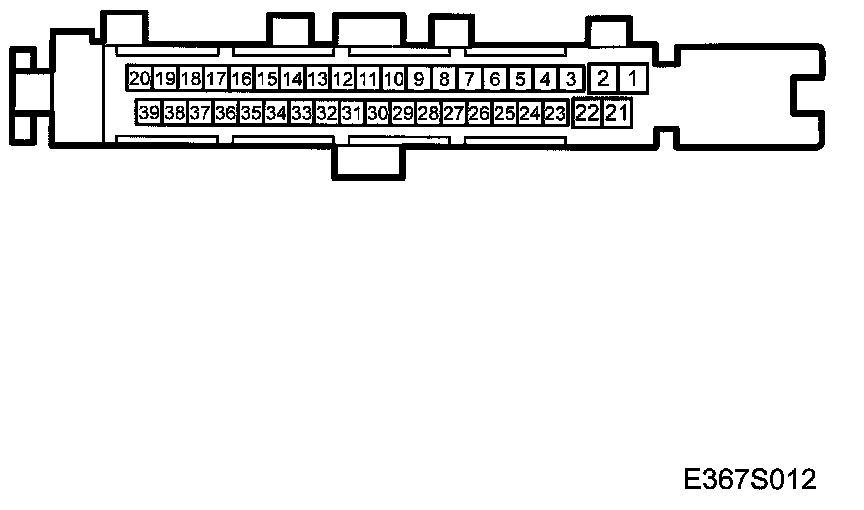

Test Readings,
Amplifier
Connections

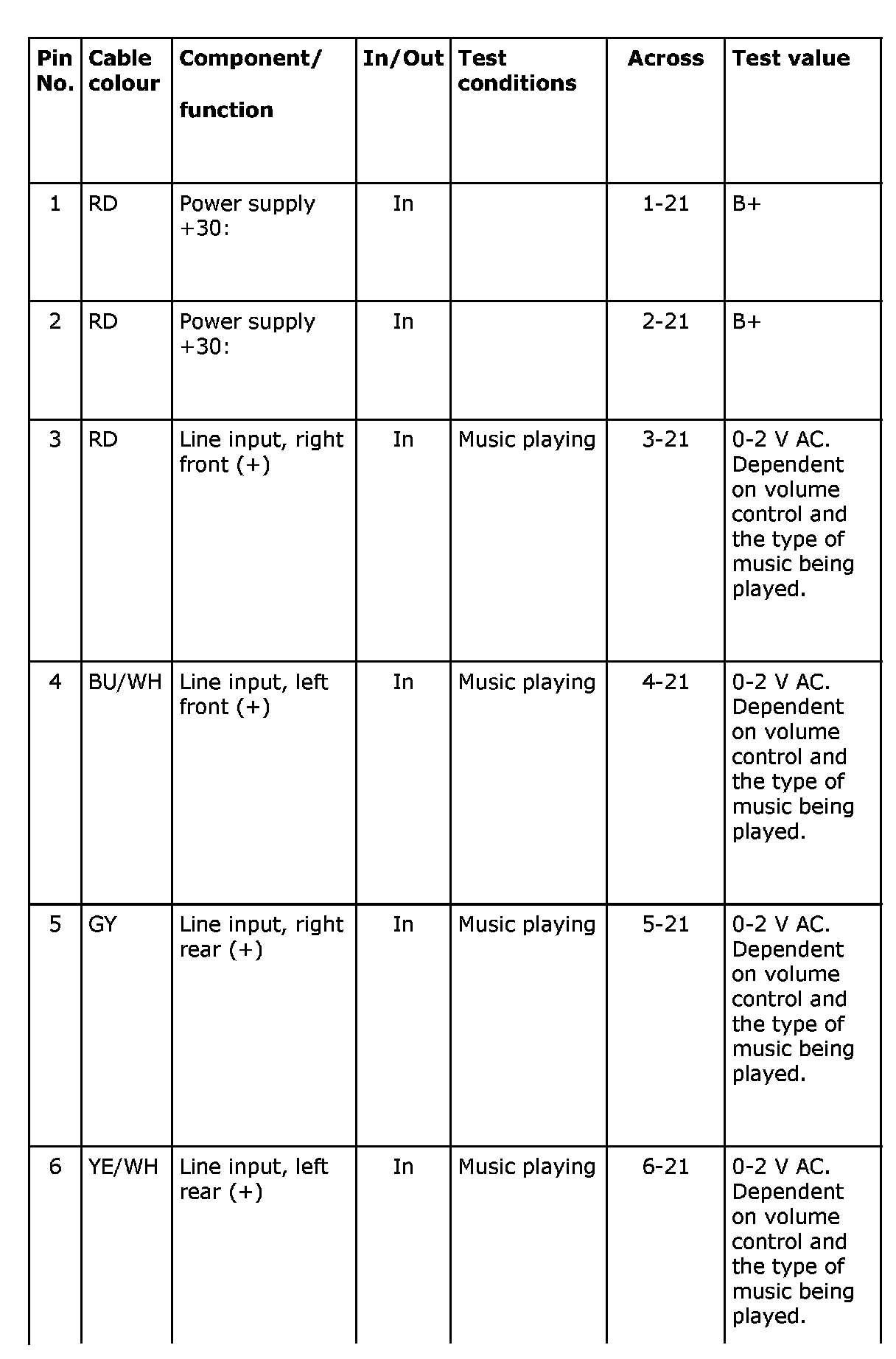

Pin No 1-6:

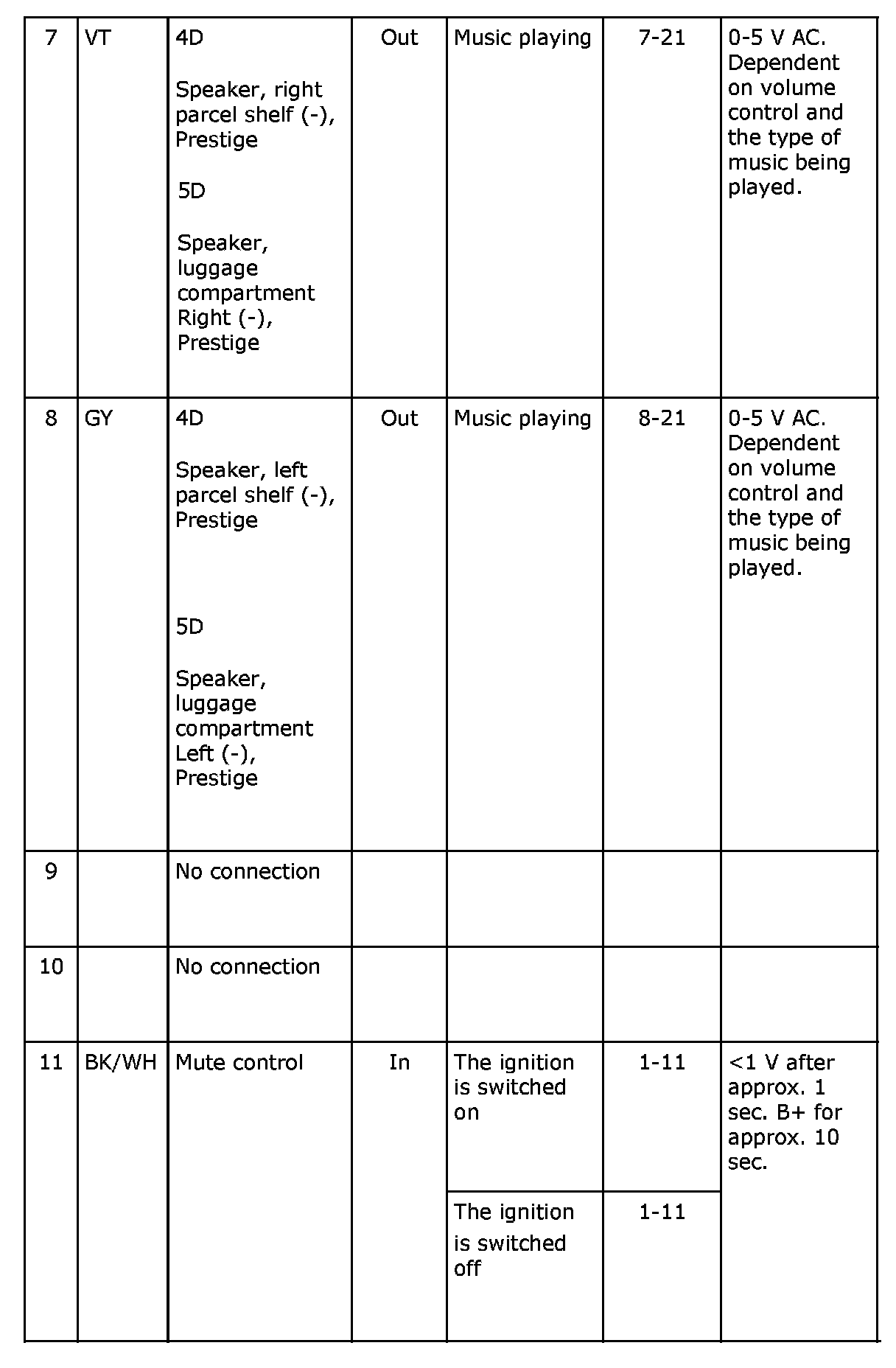

Pin No 7-11:

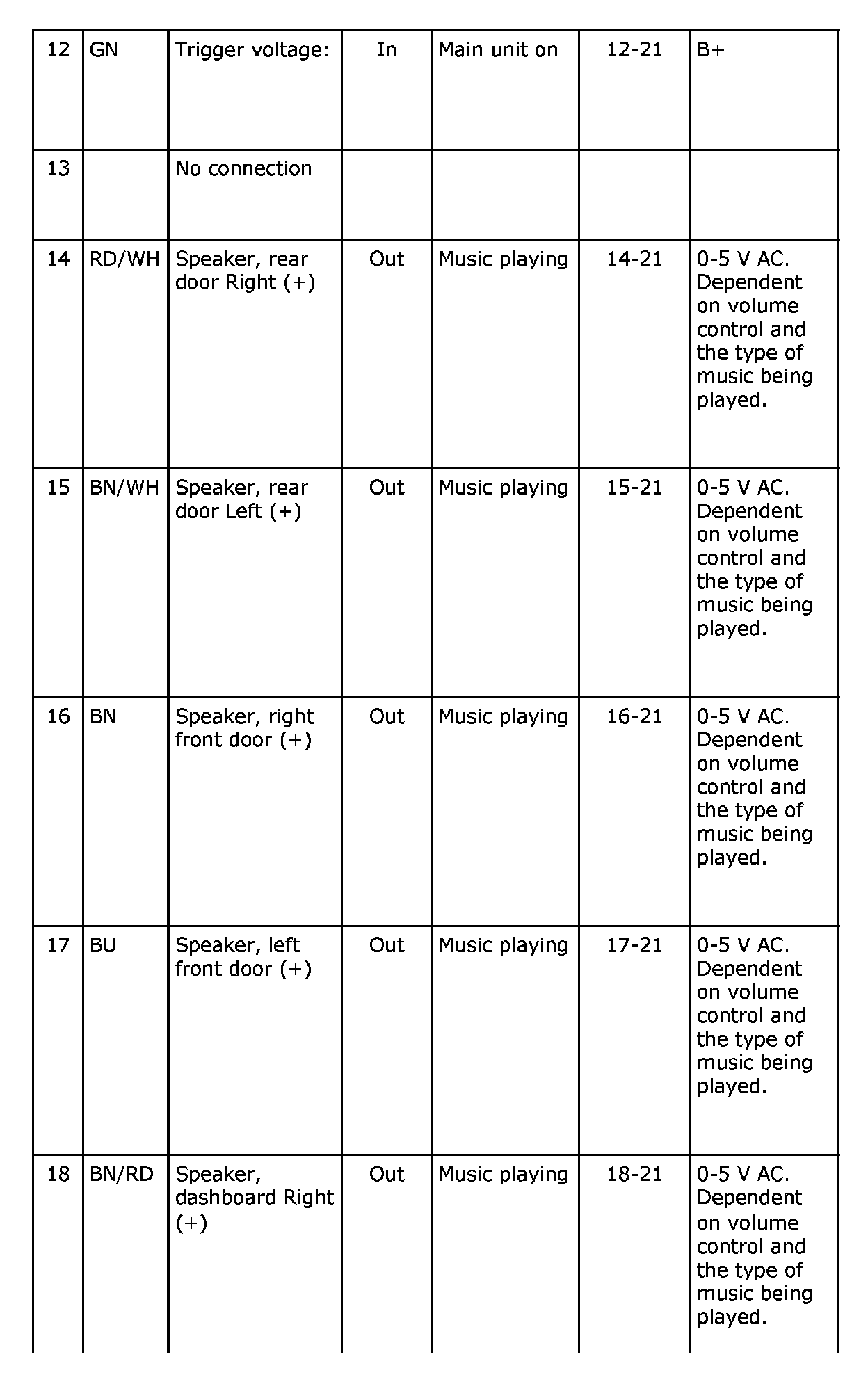

Pin No 12-18:

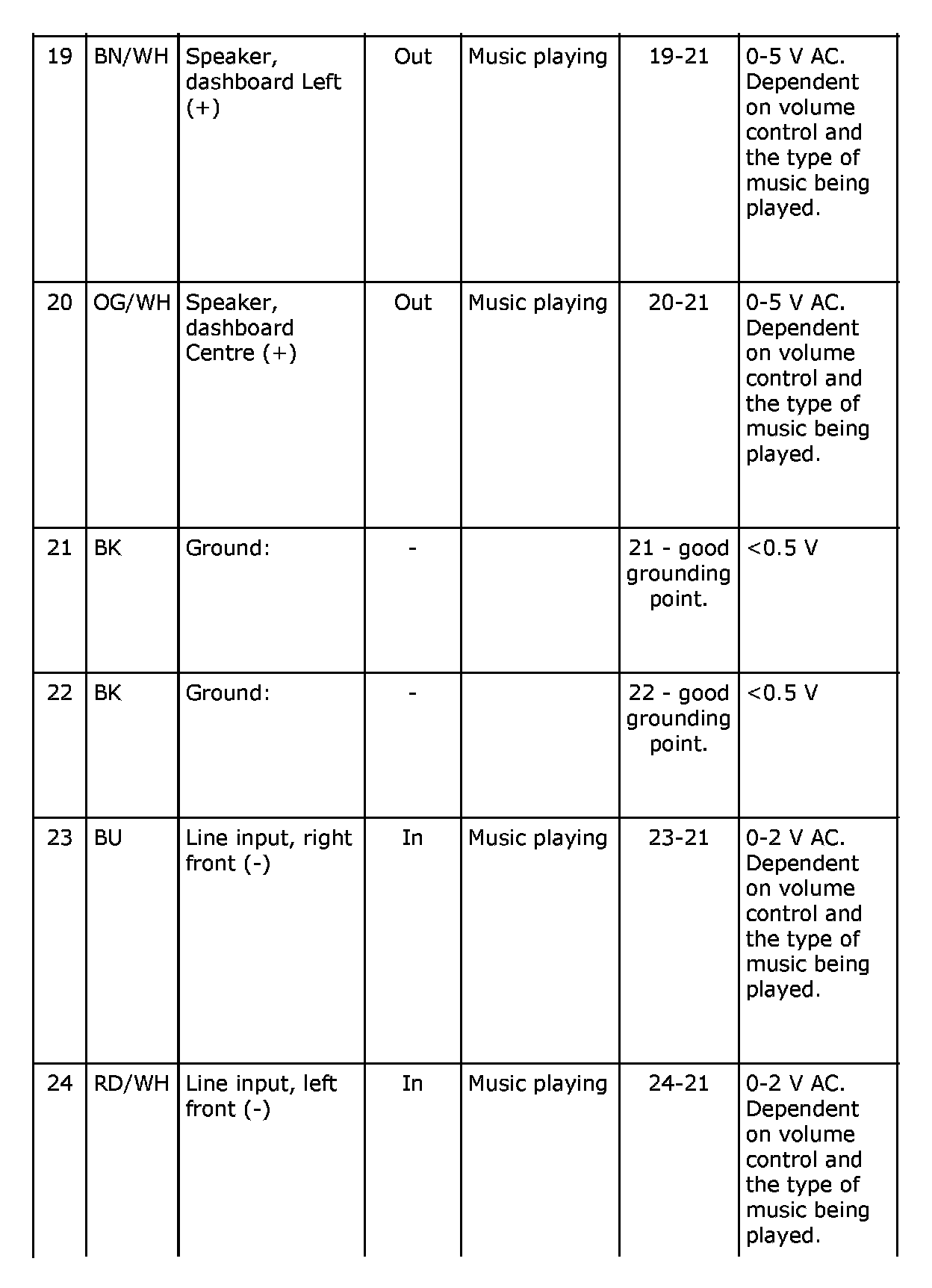

Pin No 19-24:

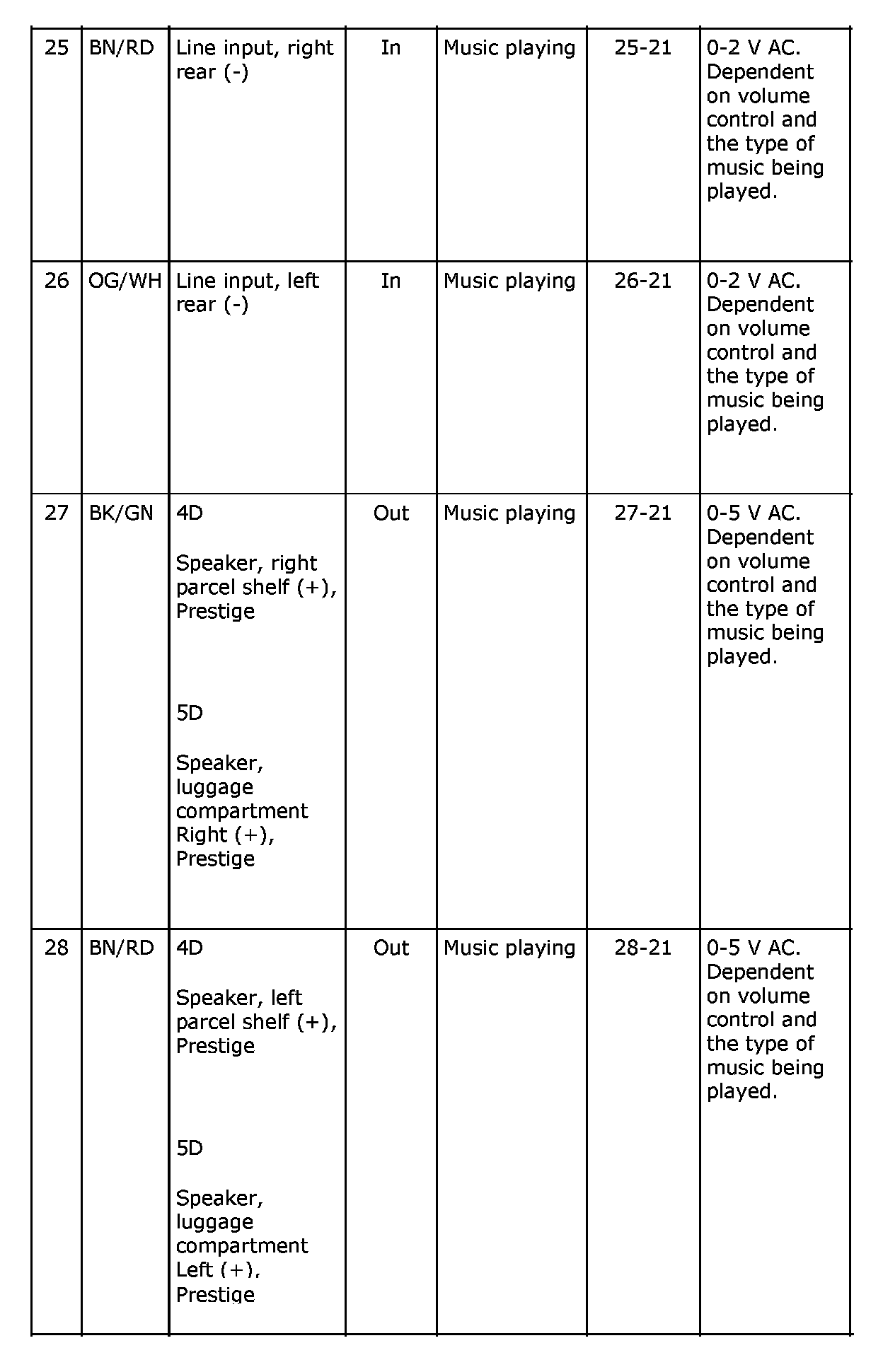

Pin No 25-28:

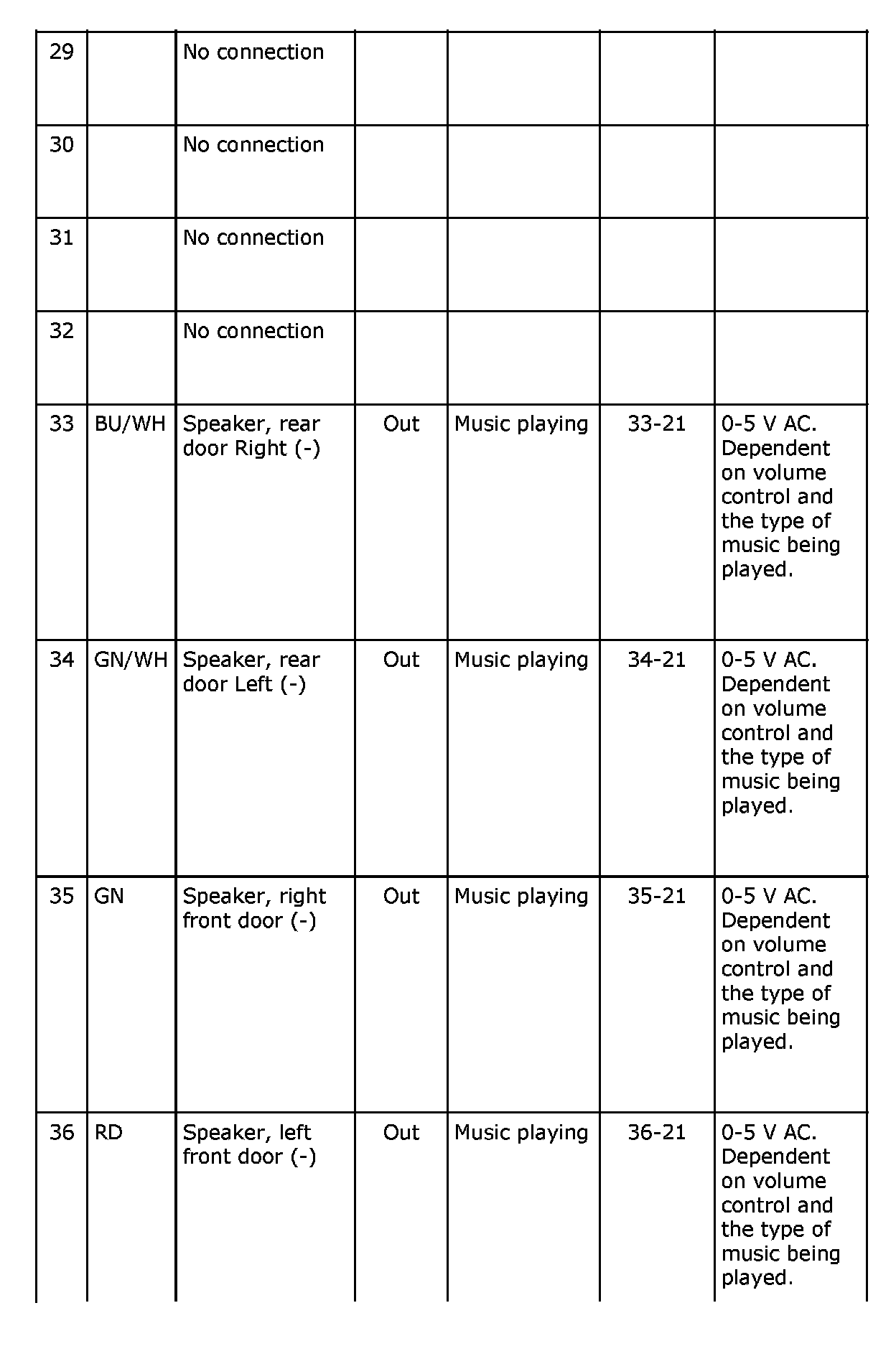

Pin No 29-36:

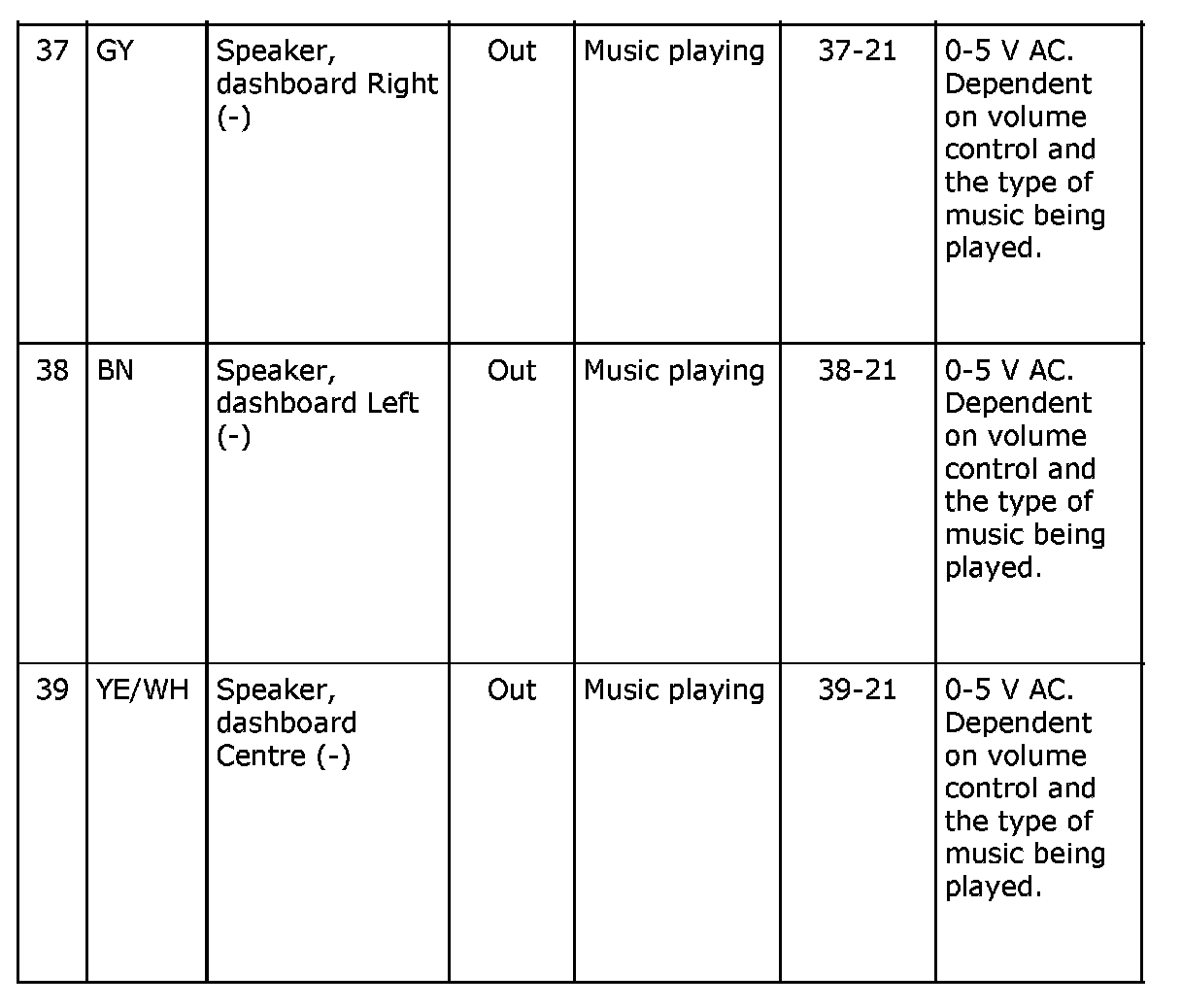

Pin No 37-39:
