Home >> Saab >> 2004 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Air Door Actuator / Motor, HVAC >> Stepping Motor, Air Mixture (222 LH/RH)

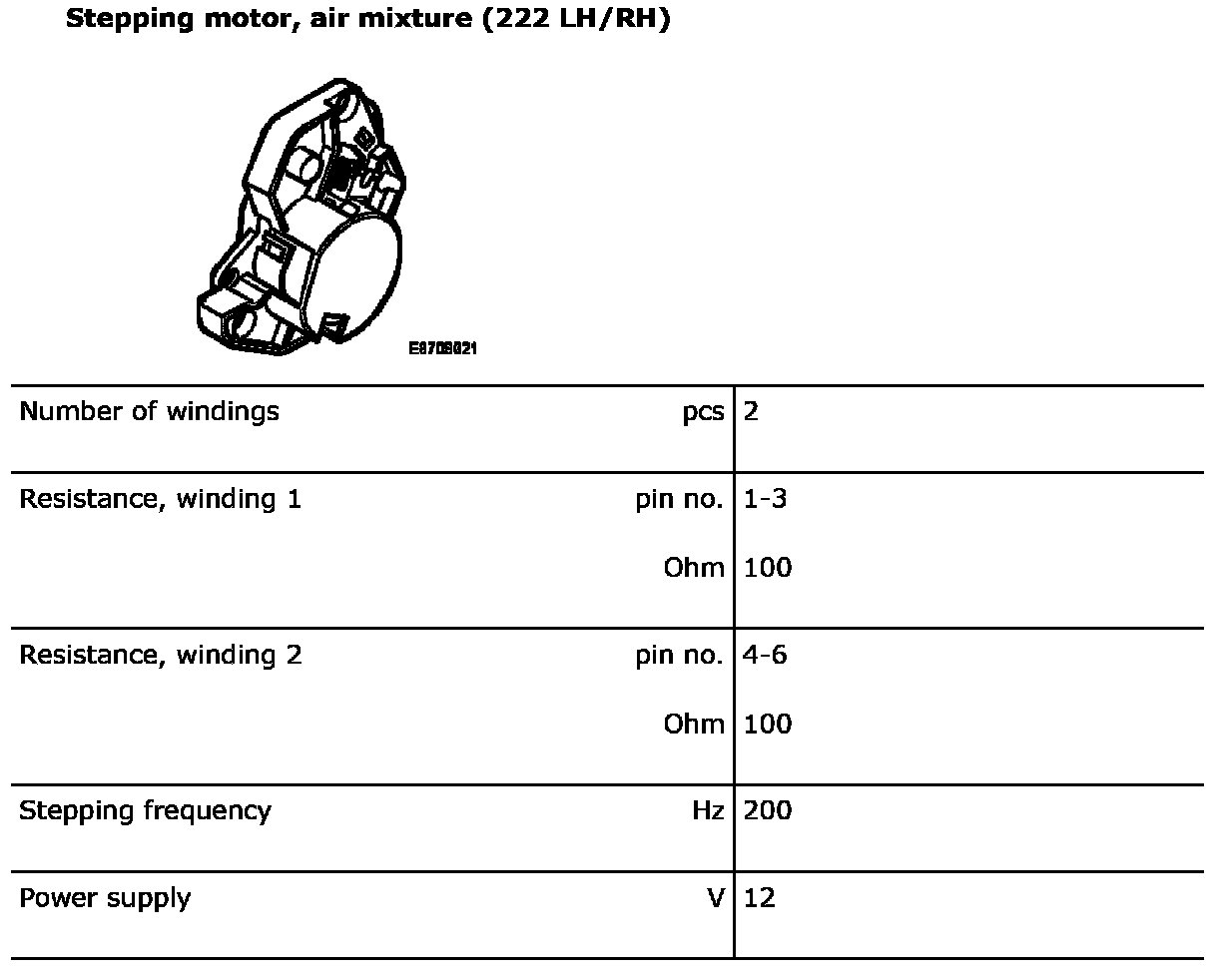

Stepping Motor, Air Mixture (222 LH/RH)

Stepping Motor, Air Mixture (222 LH/RH):
