Brake Fluid Pressure Sensor/Switch: Service and Repair

Brake pressure sensor

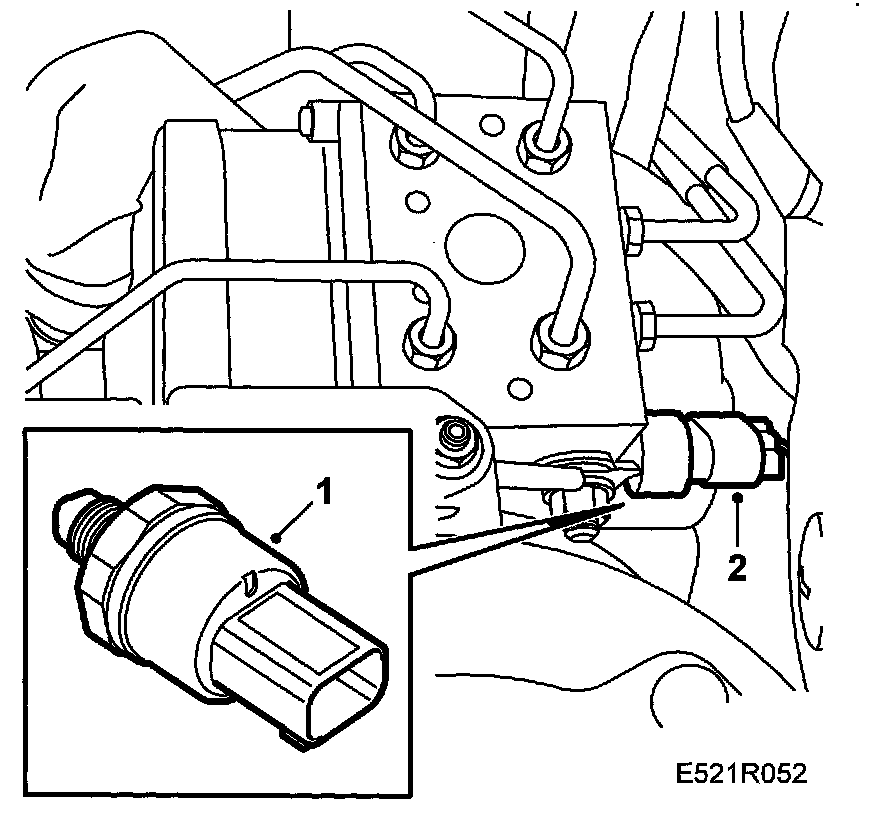

To remove





1. Unplug the connector from the pressure sensor.

Note: The connector has a locking device that must be released.

2. Remove the pressure sensor using a 24 mm open-ended spanner.

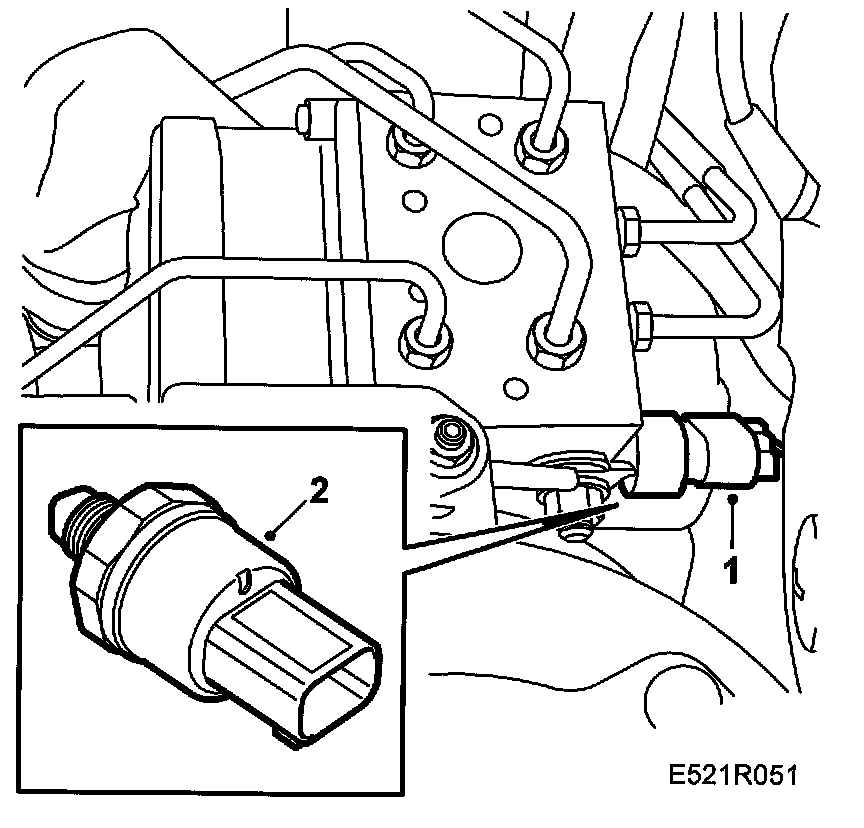

To fit





1. Remove the pressure sensor.
2. Plug in the connector to the pressure sensor.
3. Bleed the primary circuit (front left and rear right wheels).
