Home >> Saab >> 2004 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations >> Connector Locations >> Control Module Connectors (by Number) >> (628) DICE Control Module

(628) DICE Control Module

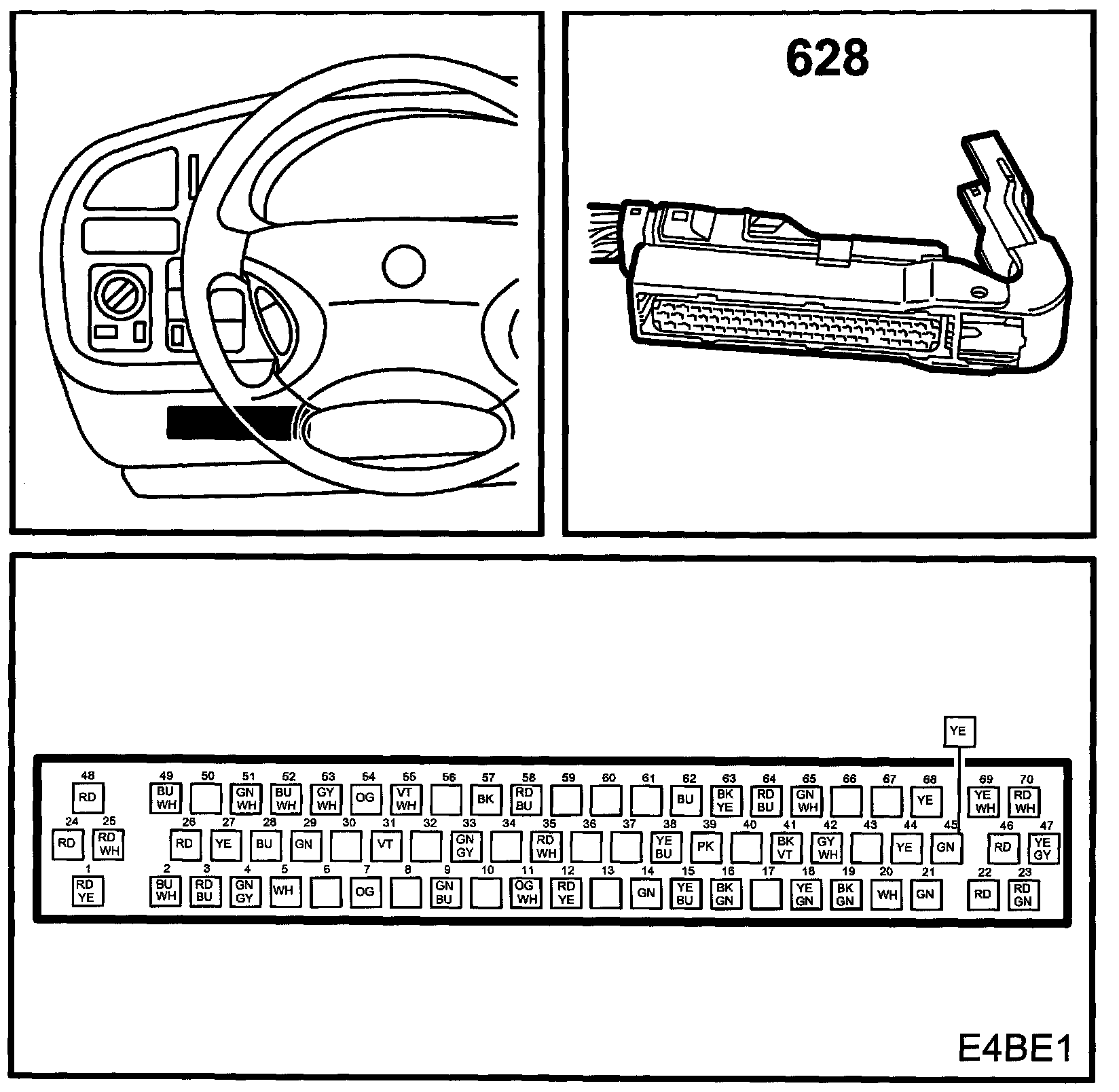

DICE Control Module (628):
