Home >> Saab >> 2004 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Lighting and Horns >> Parking Lamp >> Parking Light Bulb >> Diagrams >> Parking Light Bulb, Front Right (13FR)

Parking Light Bulb, Front Right (13FR)

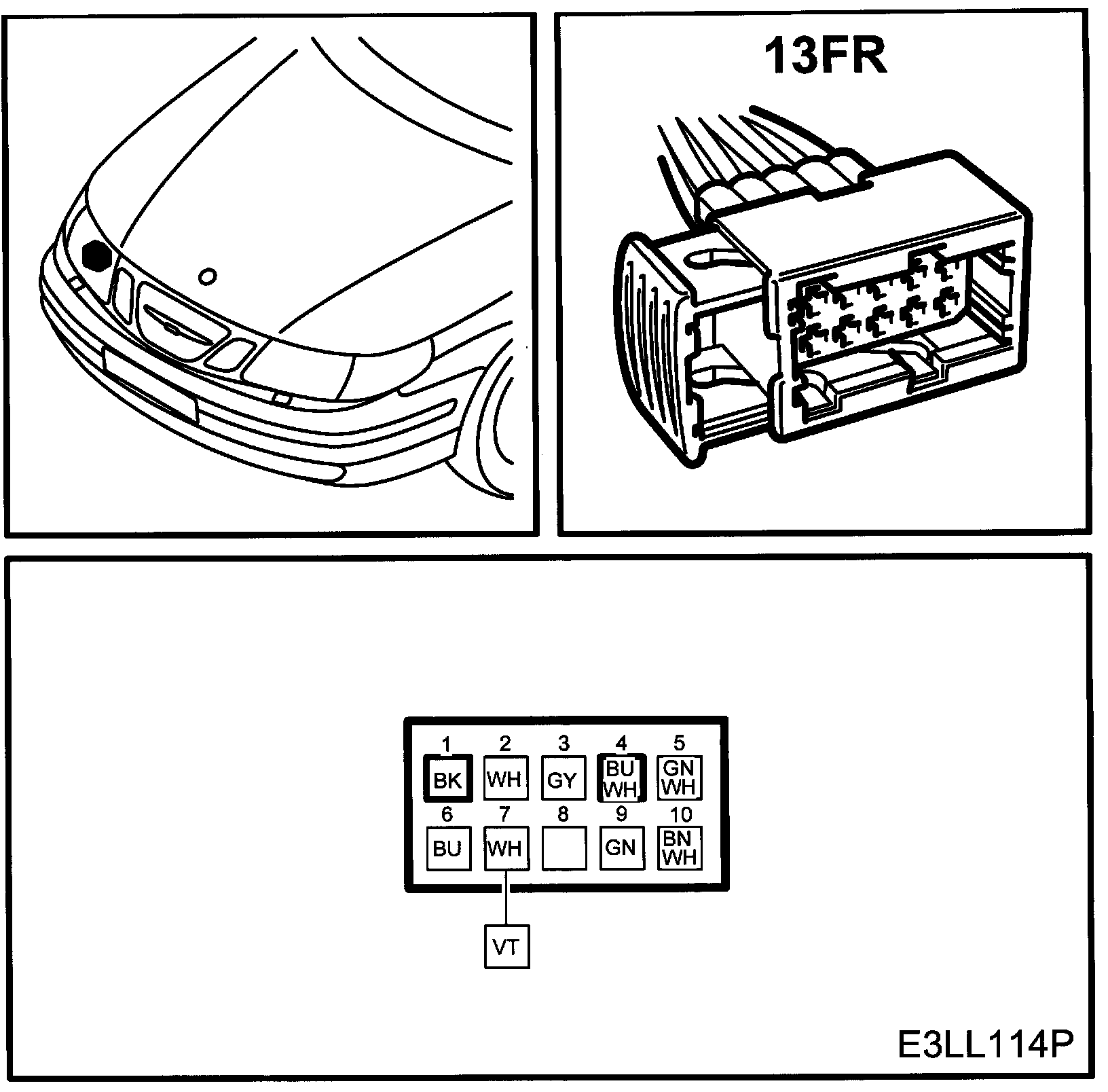

Parking Light Bulb, Front Right (13FR) (part 1):




Parking Light Bulb, Front Right (13FR) (Part 2):
