Stepping Motor, Air-Blending RH

Stepping Motor, Air-blending RH

To remove







Put the air-mix control to max cold or max heat before commencing removal.

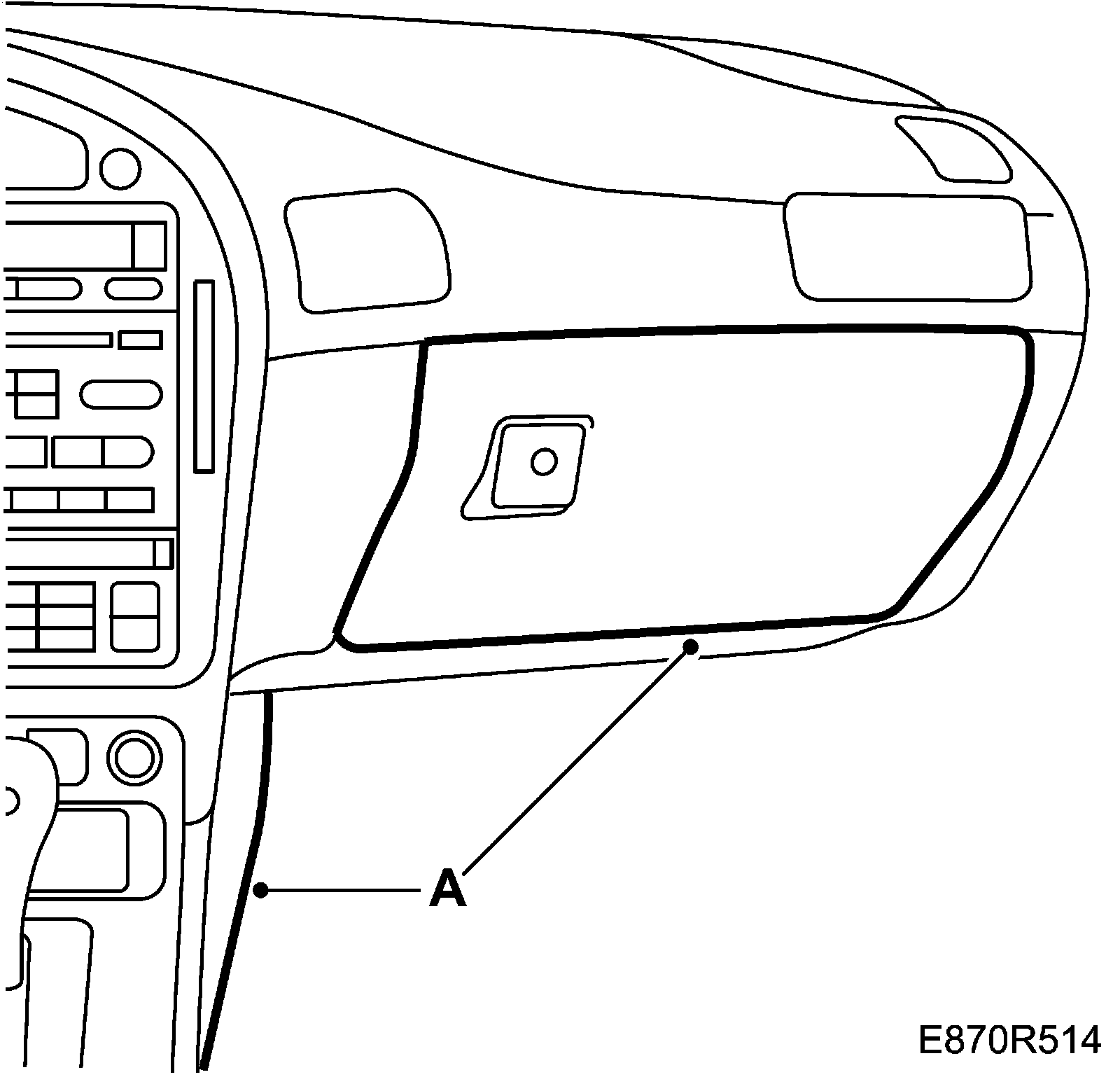

1. LHD: Remove the glove box (A) and centre console.

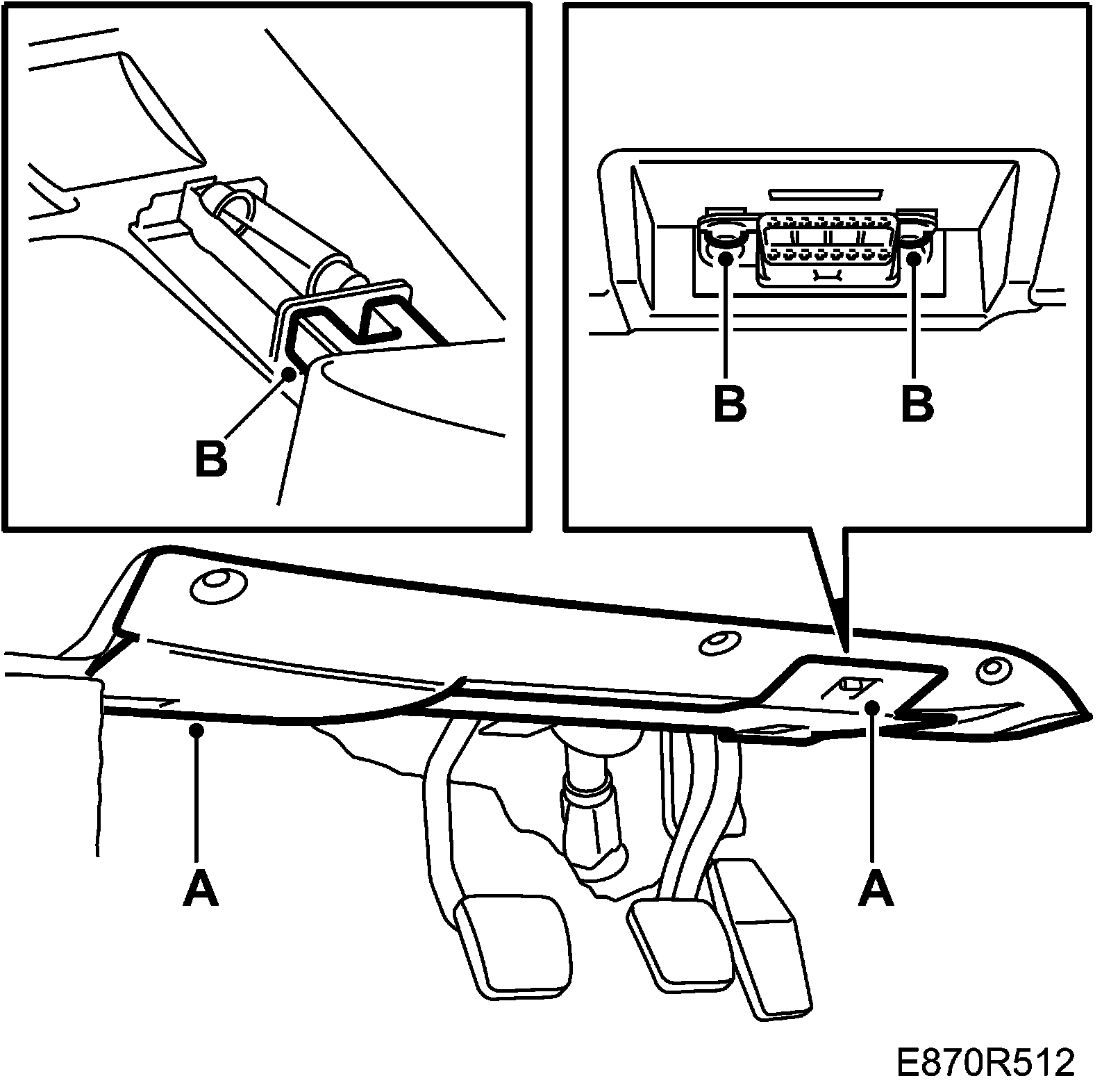

RHD: Remove the bottom of the panel (3 screws) (A) and detach the diagnostics socket (2 screws) and the floor lighting (B).

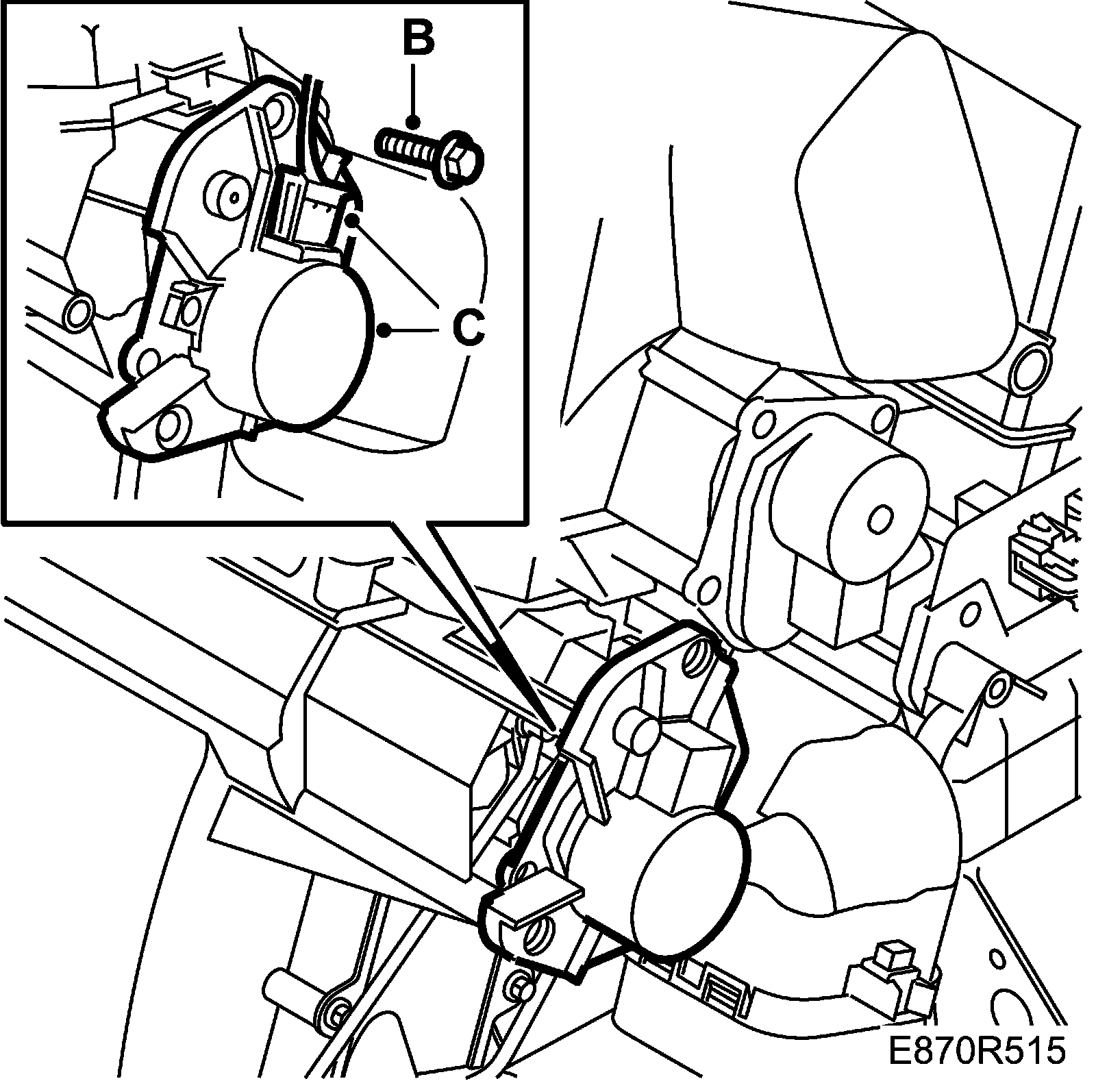

2. Remove the stepping motor, 2 screws (B).







3. Uncouple the connection (C).

To fit

1. Fit the stepping motor, 2 screws (B).







2. Couple in the stepping motor connection (C).

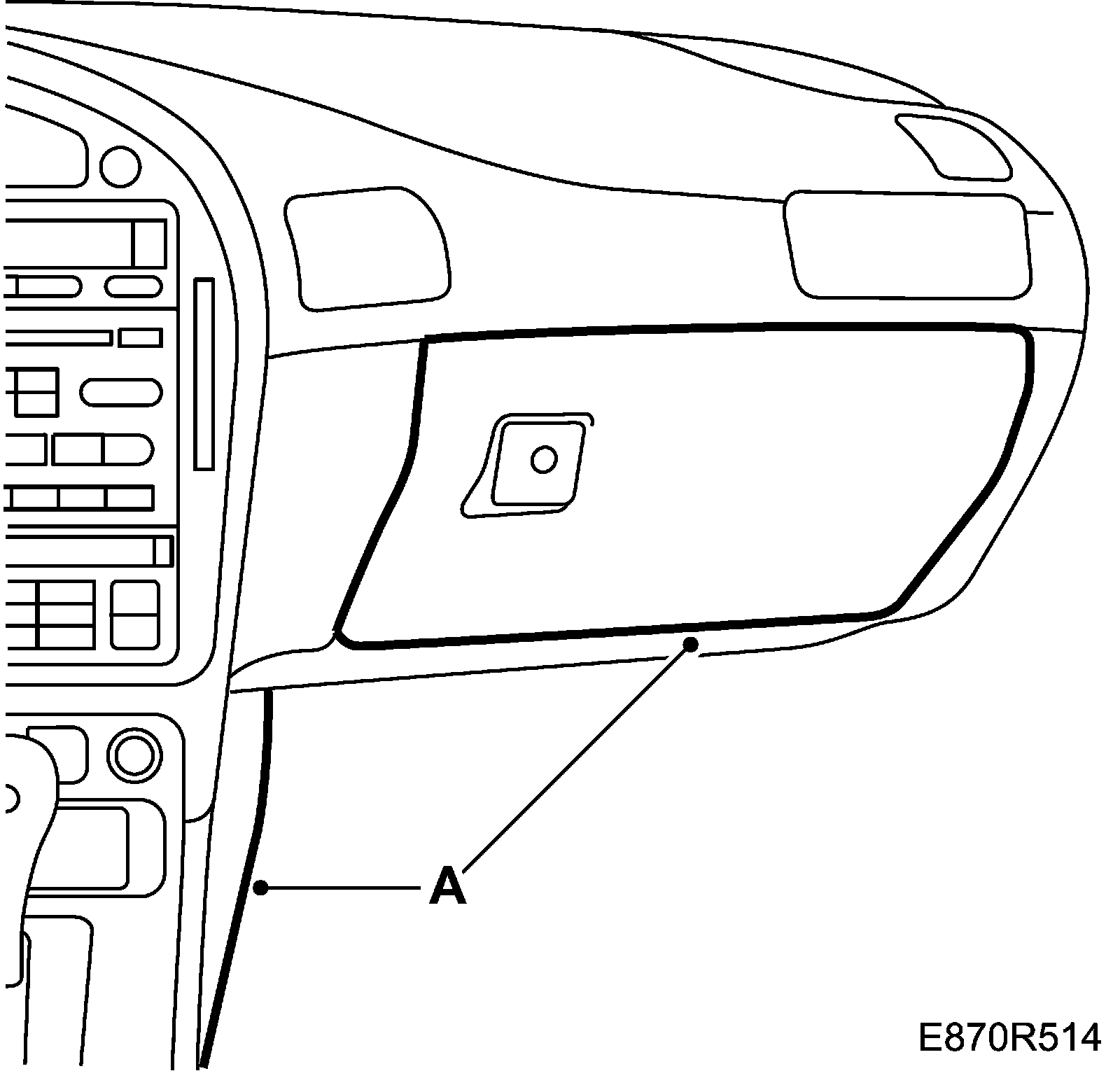

3. LHD: Fit the glove box (A).

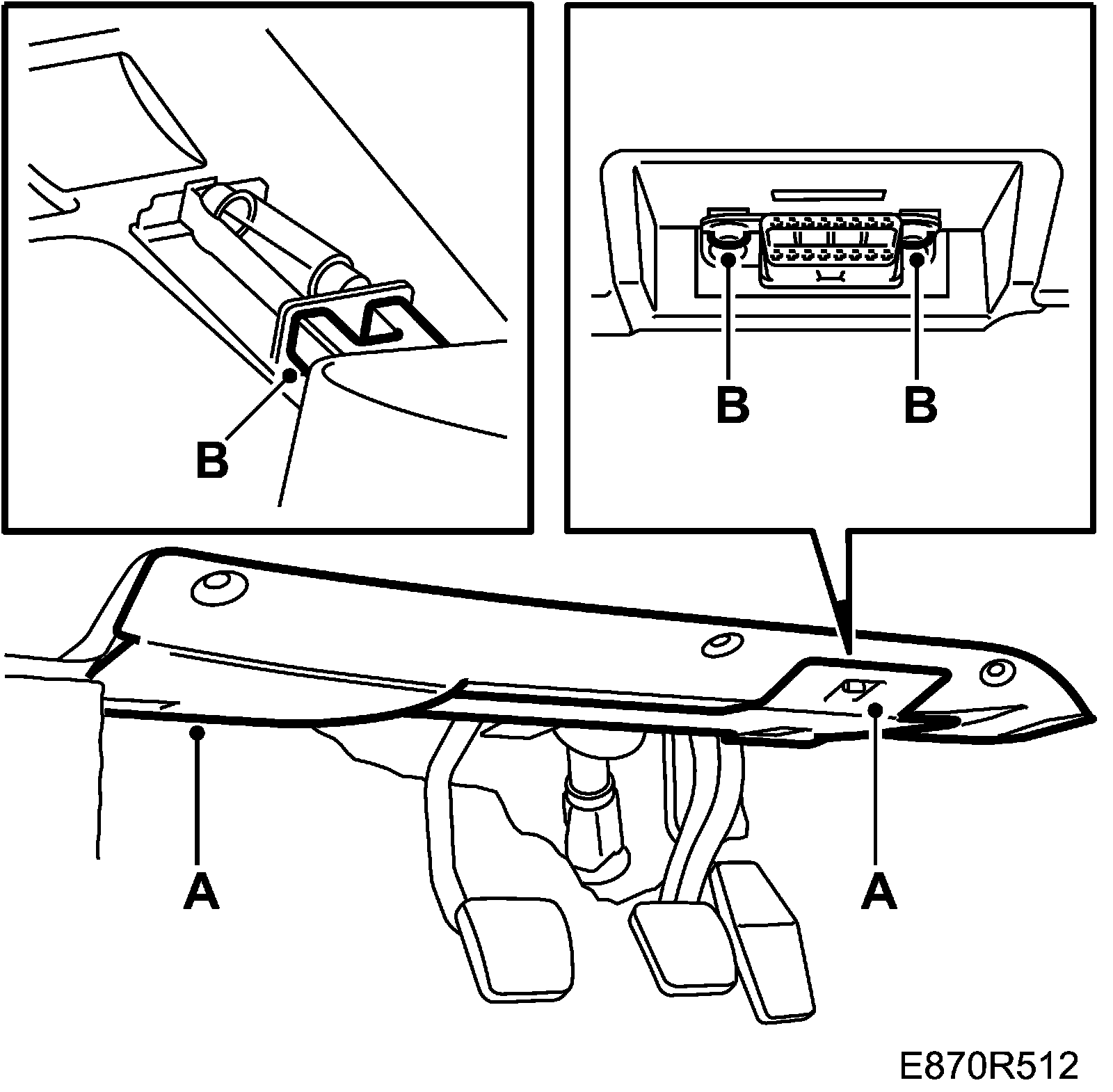

RHD: Fit the diagnostics socket (2 screws) and floor lighting (B).







4. RHD: Fit the lower part of the panel, 3 screws (A).
