Stepping Motor, Air-Blending LH

Stepping Motor, Air-Blending LH

To remove
Put the air-mix control to max cold or max heat before commencing removal.

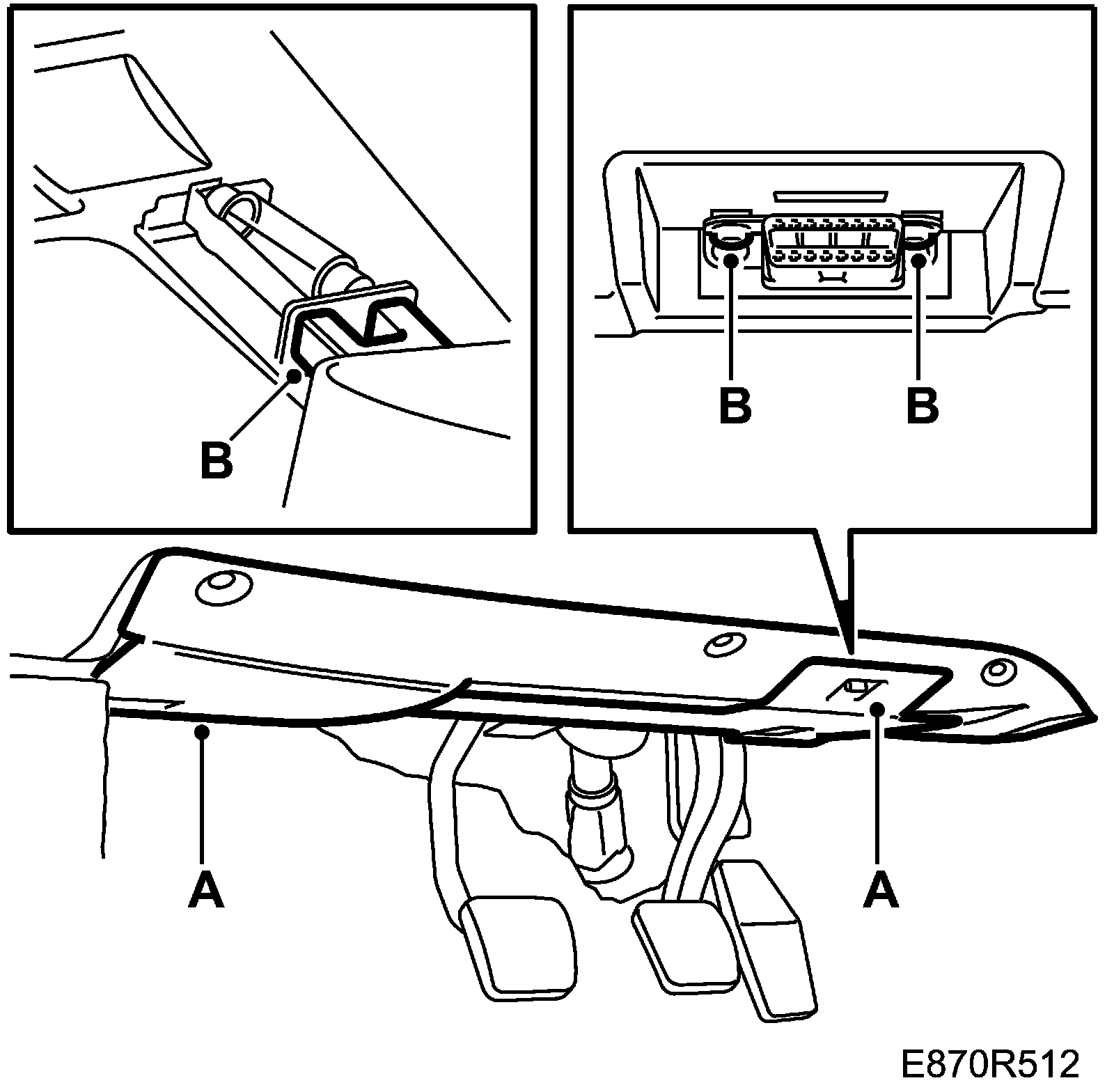

1. LHD: Remove the bottom of the panel (3 screws) (A) and detach the diagnostics socket (2 screws) and the floor lighting (B).

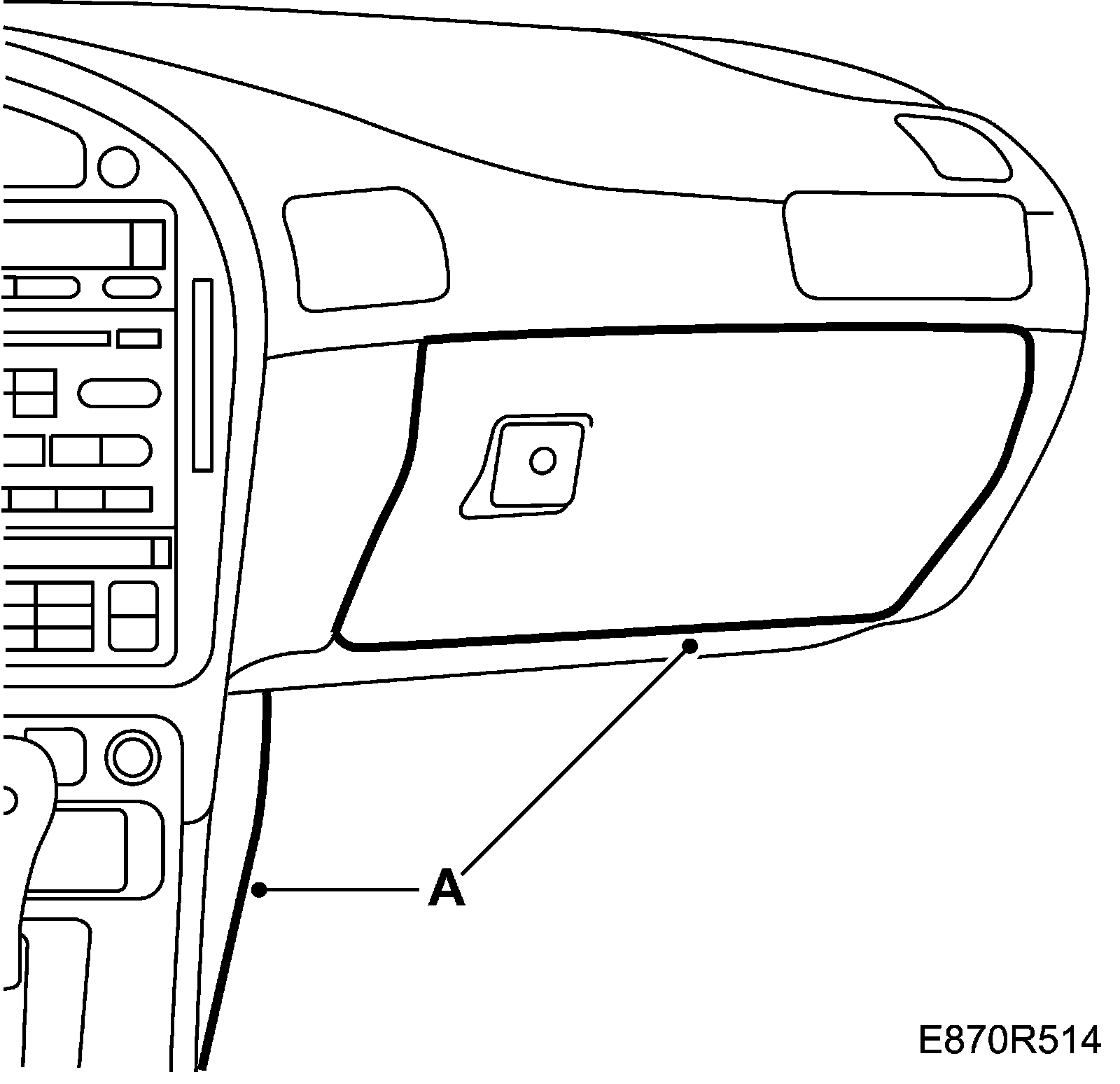

RHD: Remove the glove box and centre console (A).

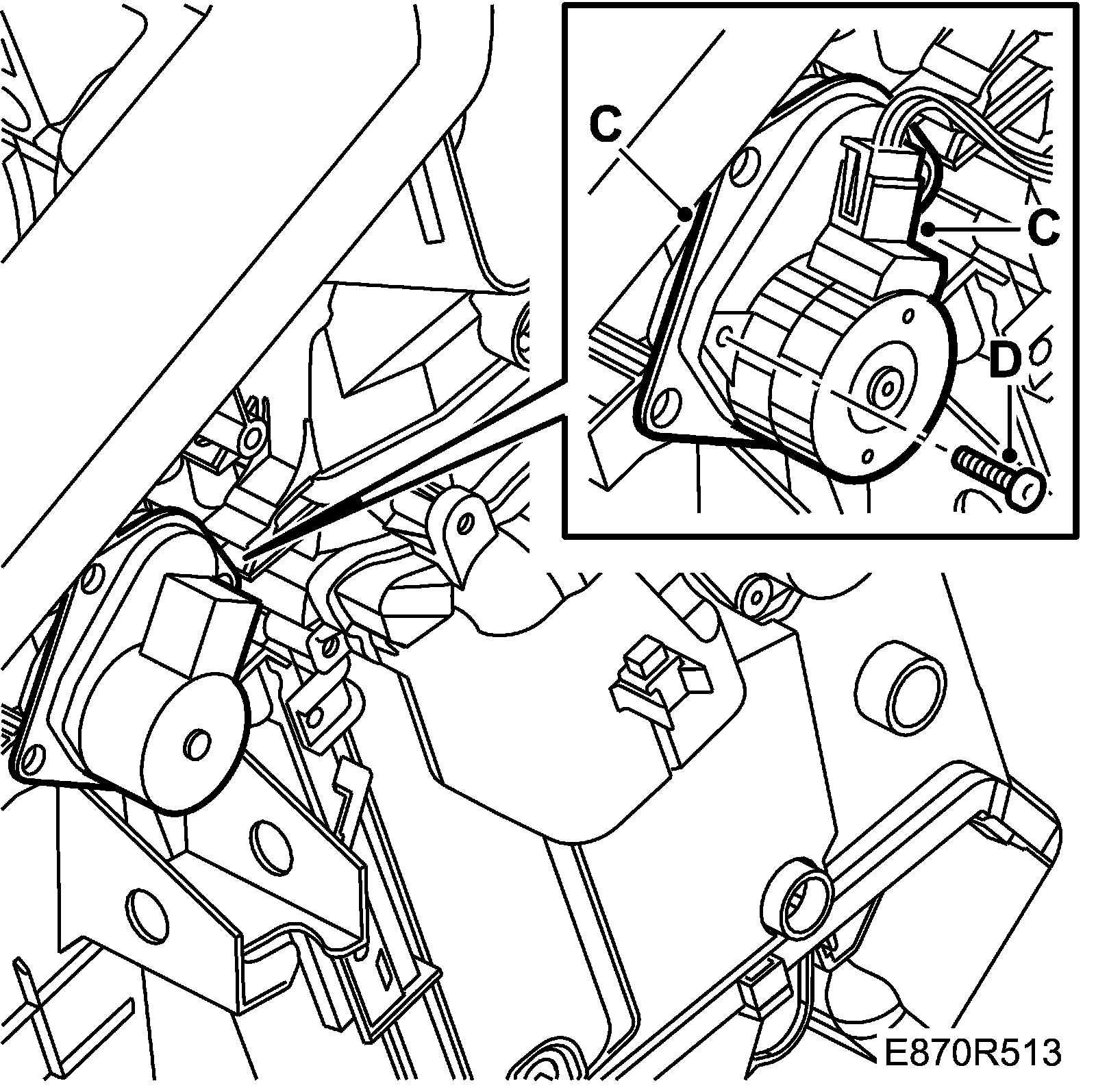

2. Uncouple the stepping motor connection (C).







3. Remove the stepping motor (D), 2 screws.

To fit

1. Fit the stepping motor (D), 2 screws.







2. Couple in the stepping motor connection (C).

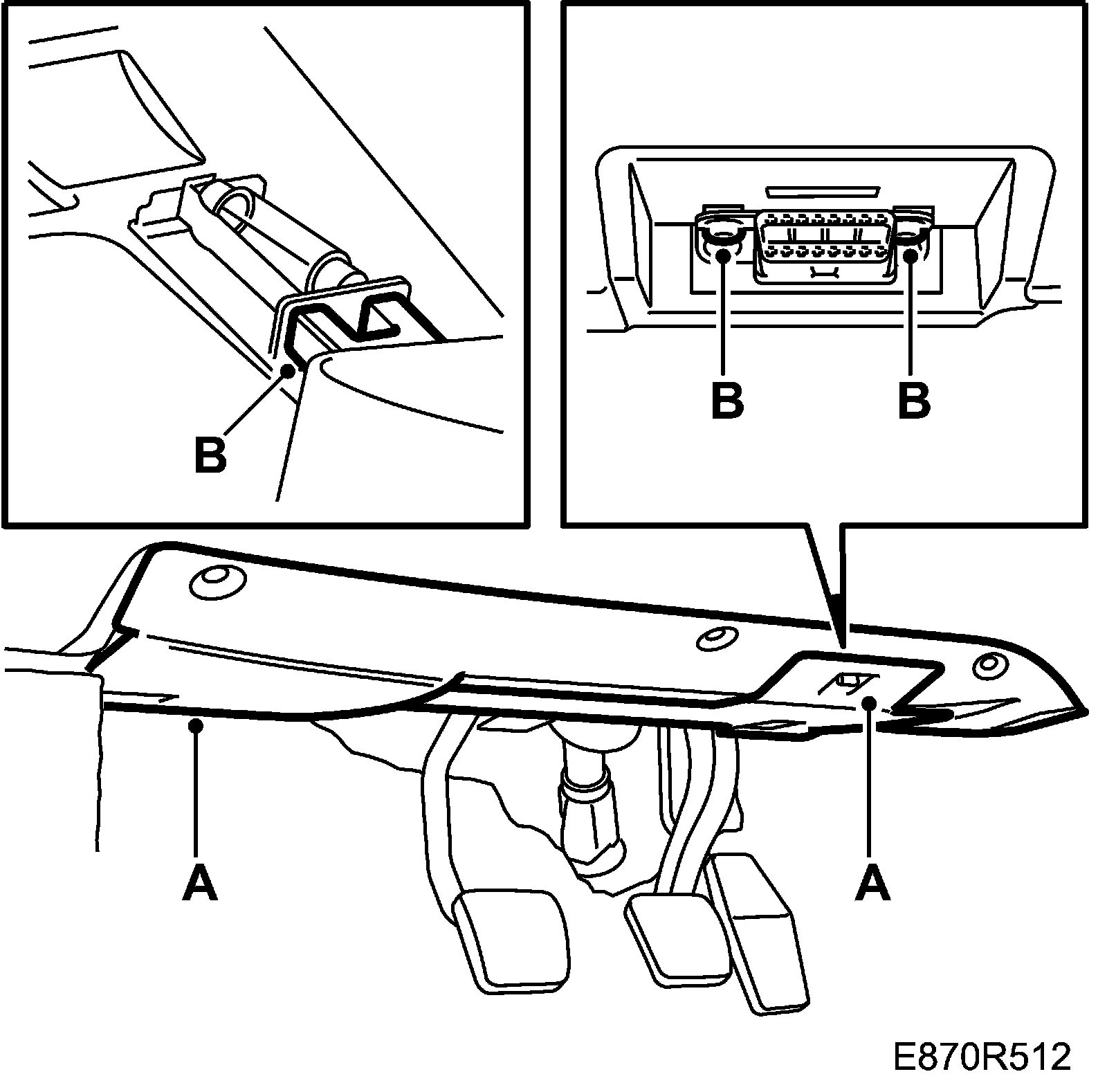

3. LHD: Fit the diagnostics socket (2 screws) and floor lighting (B).







4. LHD: Fit the lower part of the panel (3 screws) (A).
RHD: Fit the glove box and centre console (A).
