Stepping Motor, Air Distribution

Stepping Motor, Air Distribution

To remove

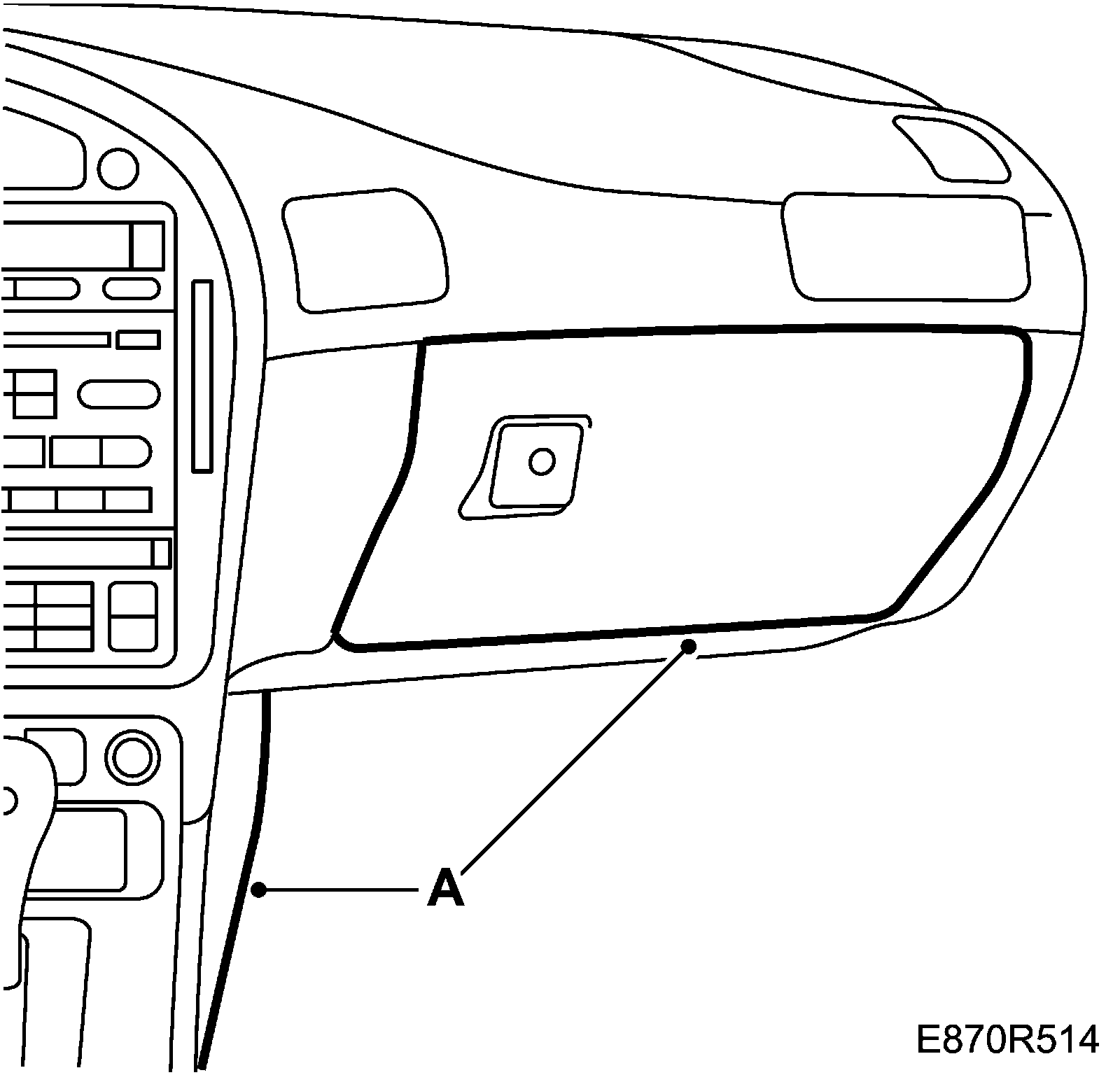

1. Remove the glove box (A).

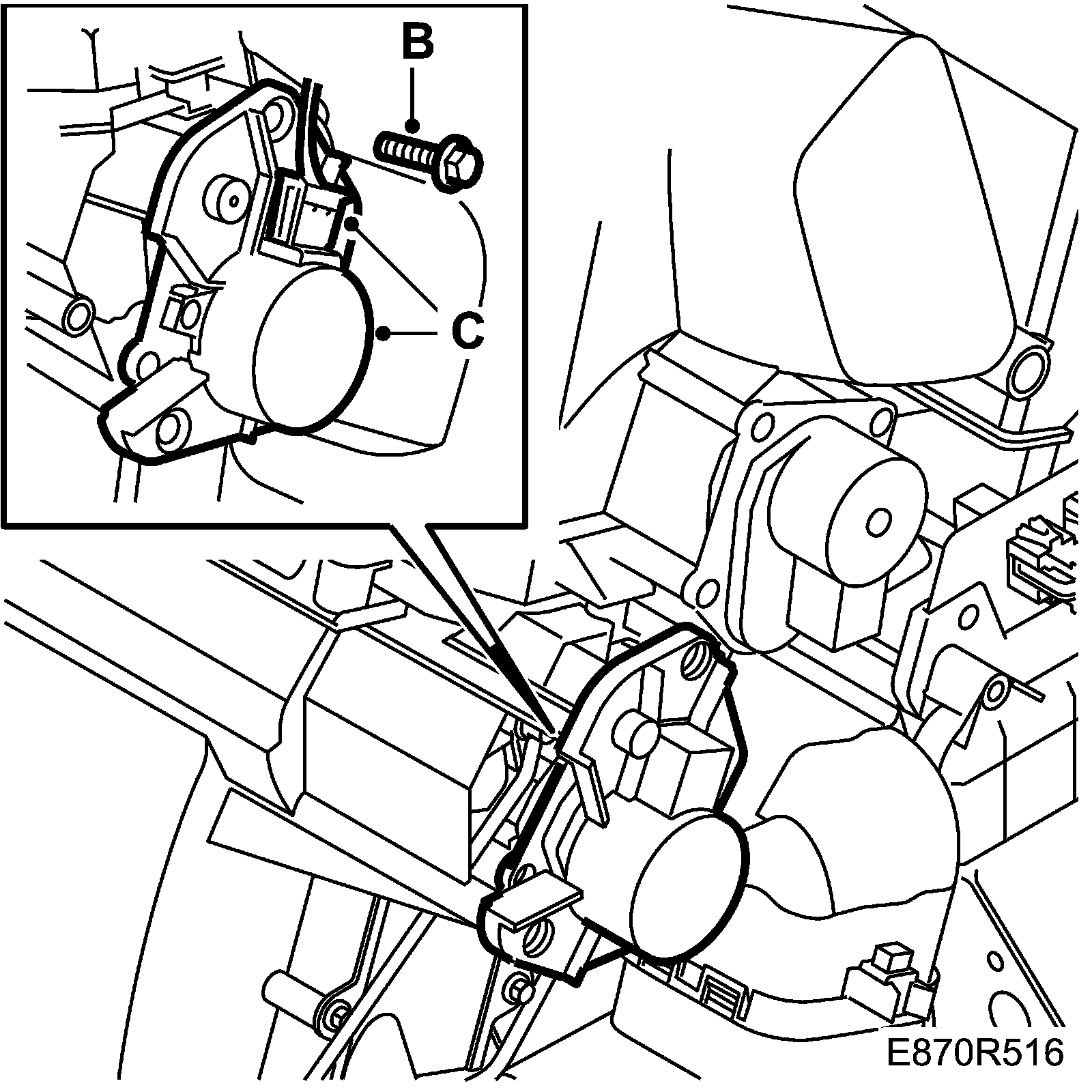

2. Remove the stepping motor (B), 2 screws.







3. Uncouple the connection (C).

To fit

1. Couple in the connection (C).

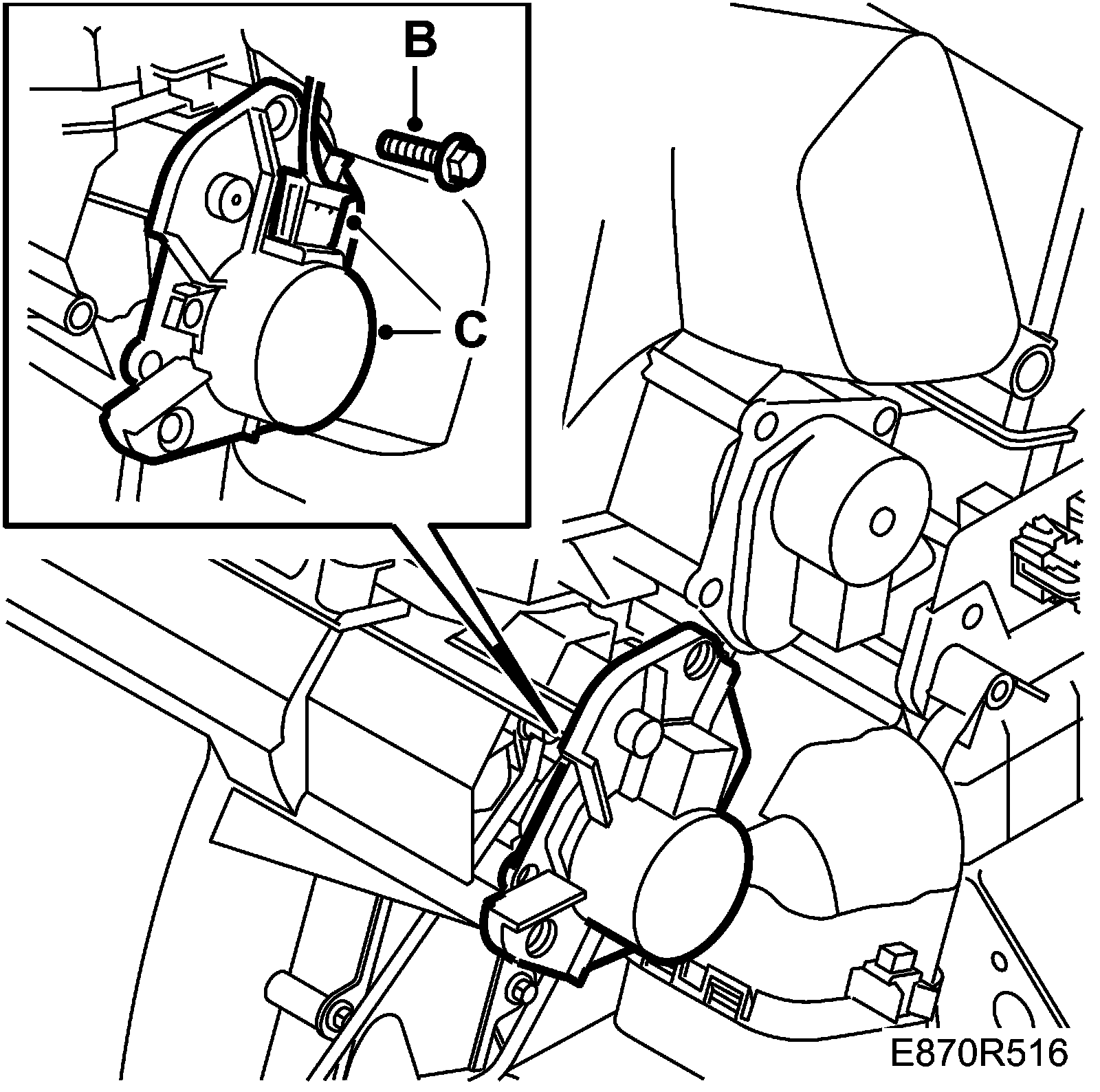

2. Fit the stepping motor (B), 2 screws.







3. Fit the glove box (A).







Both air distribution dampers must be closed when refitting.
