Saab
>>
2004
>>
9-5 Linear (9600) L4-2.3L Turbo (2.3t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
Splices
Crimp Connections

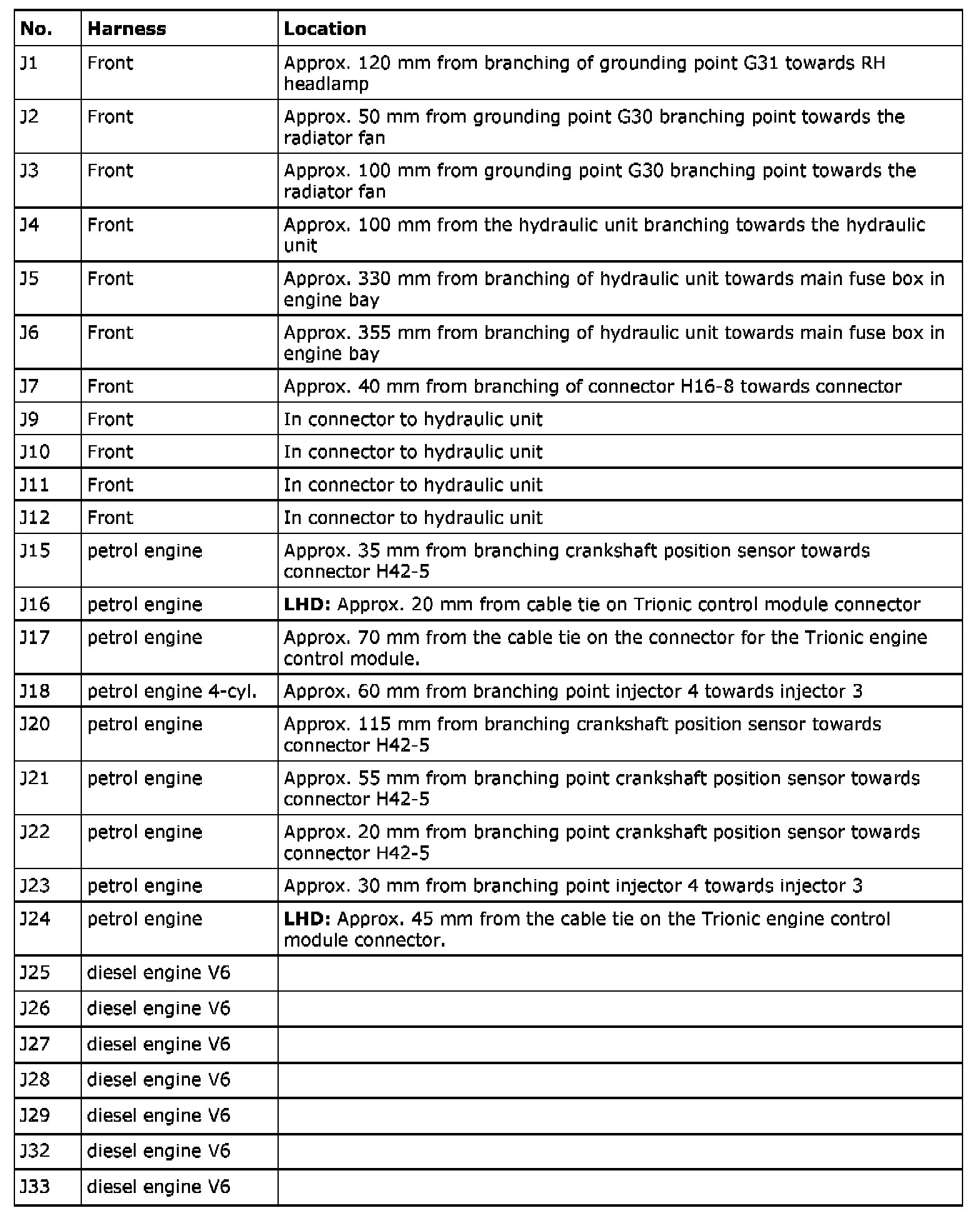

J1 To J33:

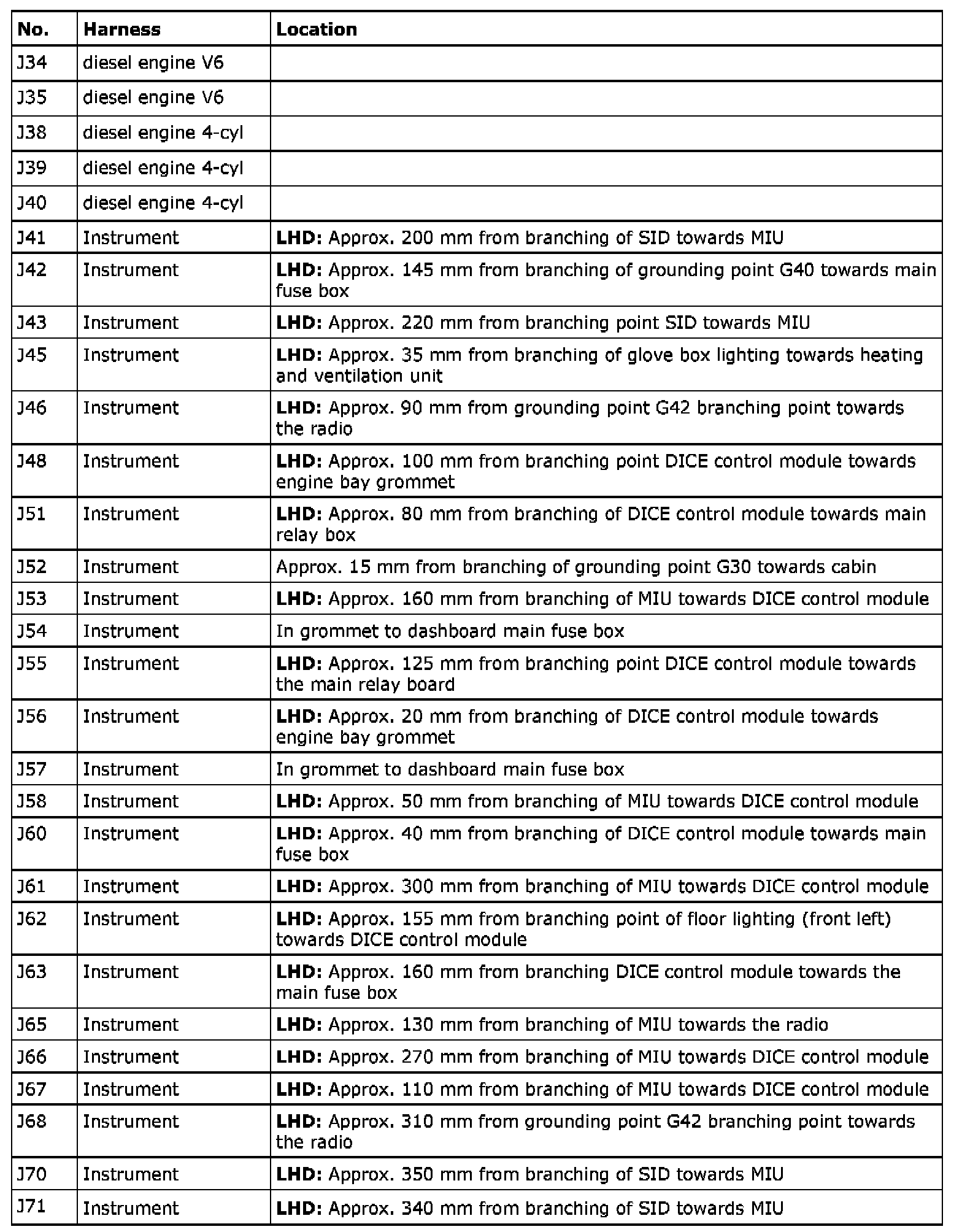

J34 To J71:

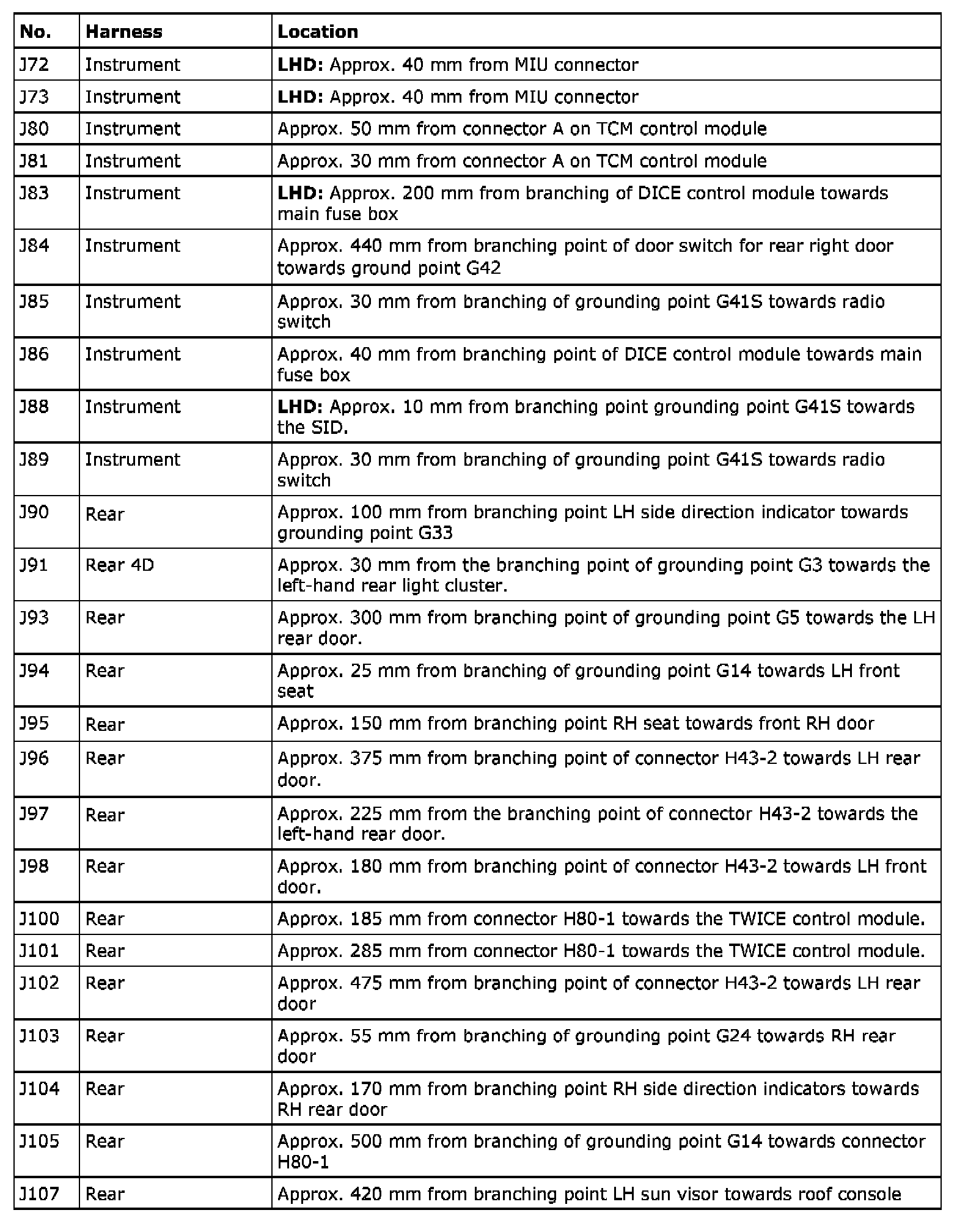

J72 To J107:
J108 To J142:

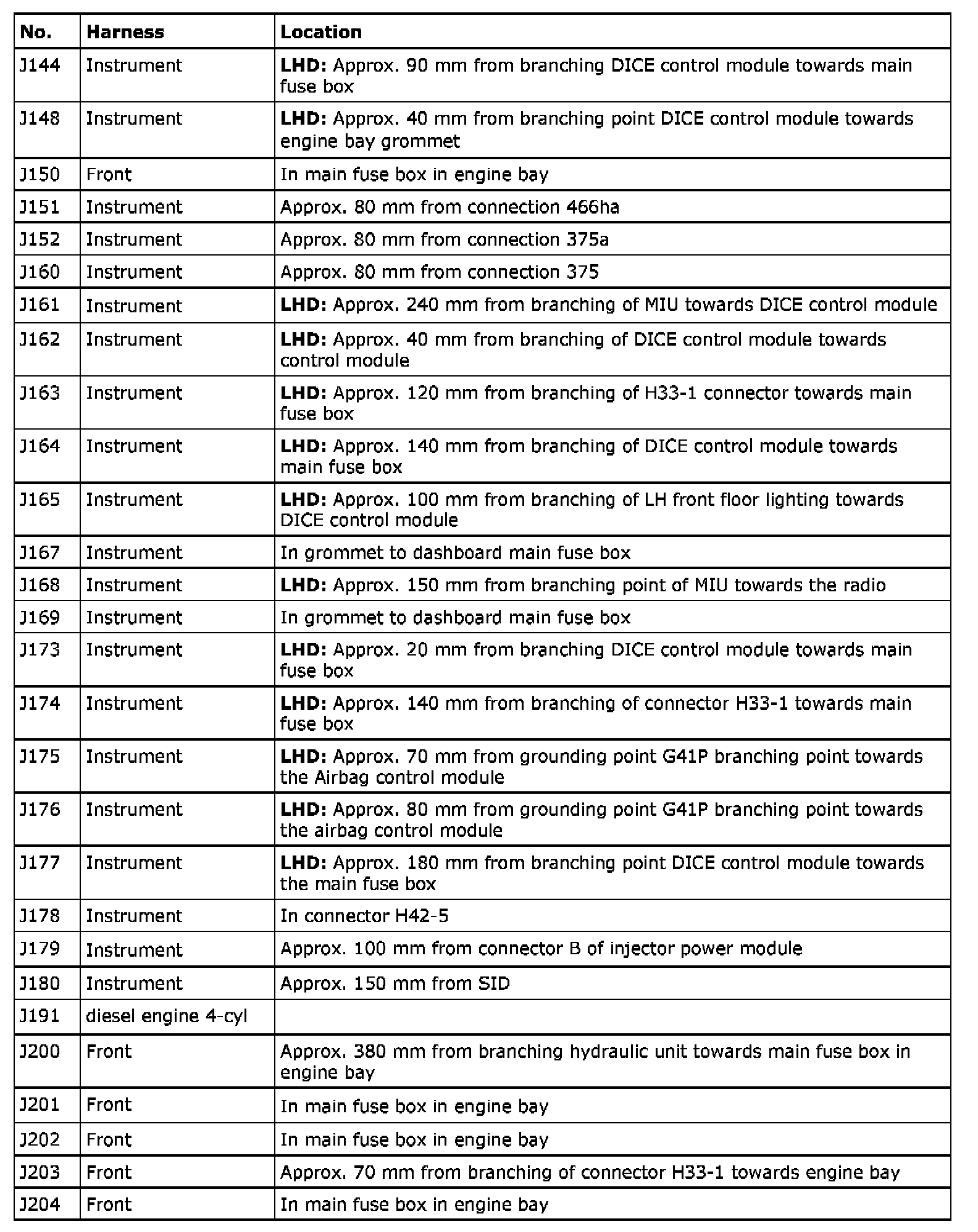

J144 To J204:

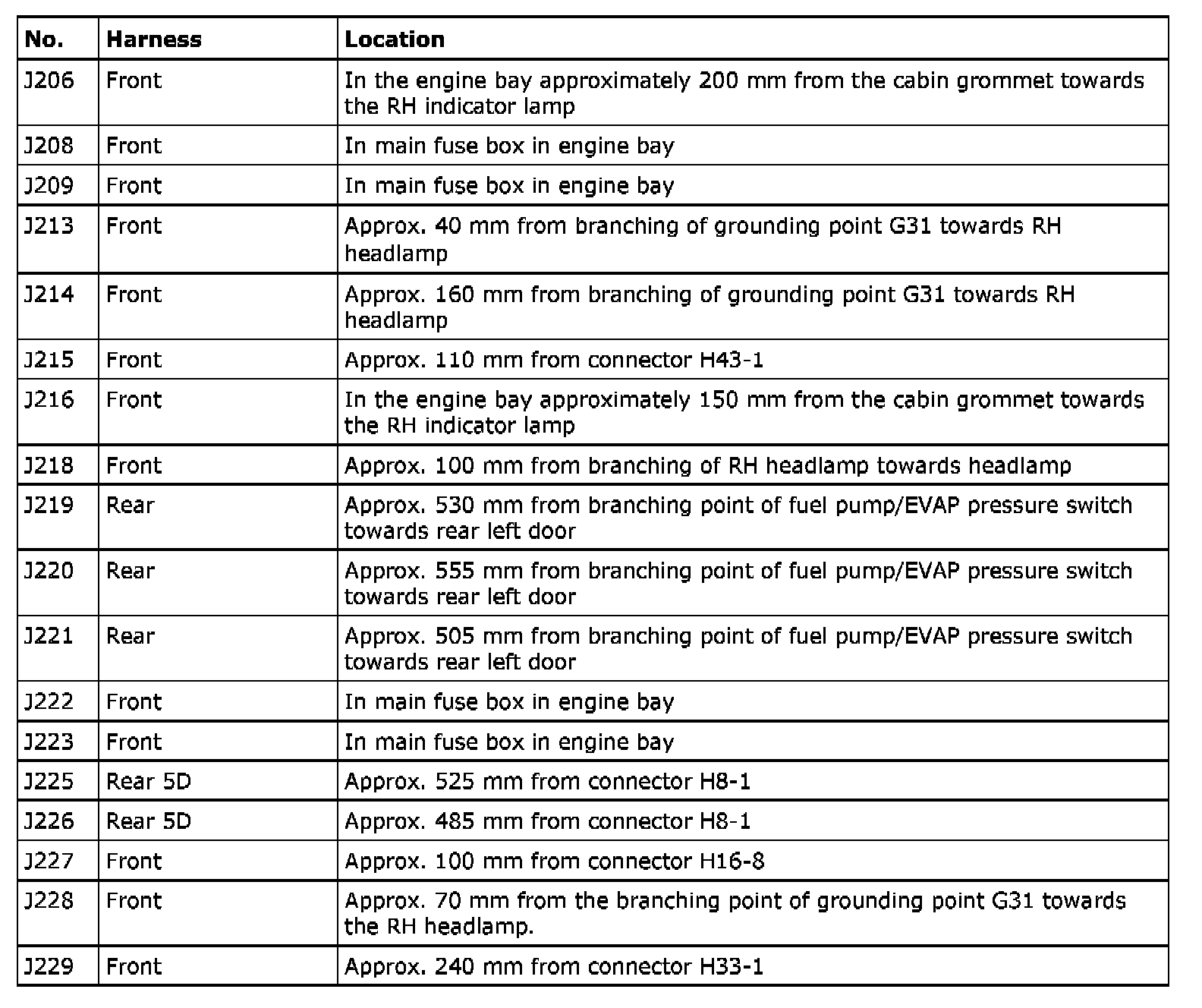

J206 To J229:
