Grounding Point G33
Grounding Point G33
Location:
Below left-hand A pillar.
Grounding Point, G33:

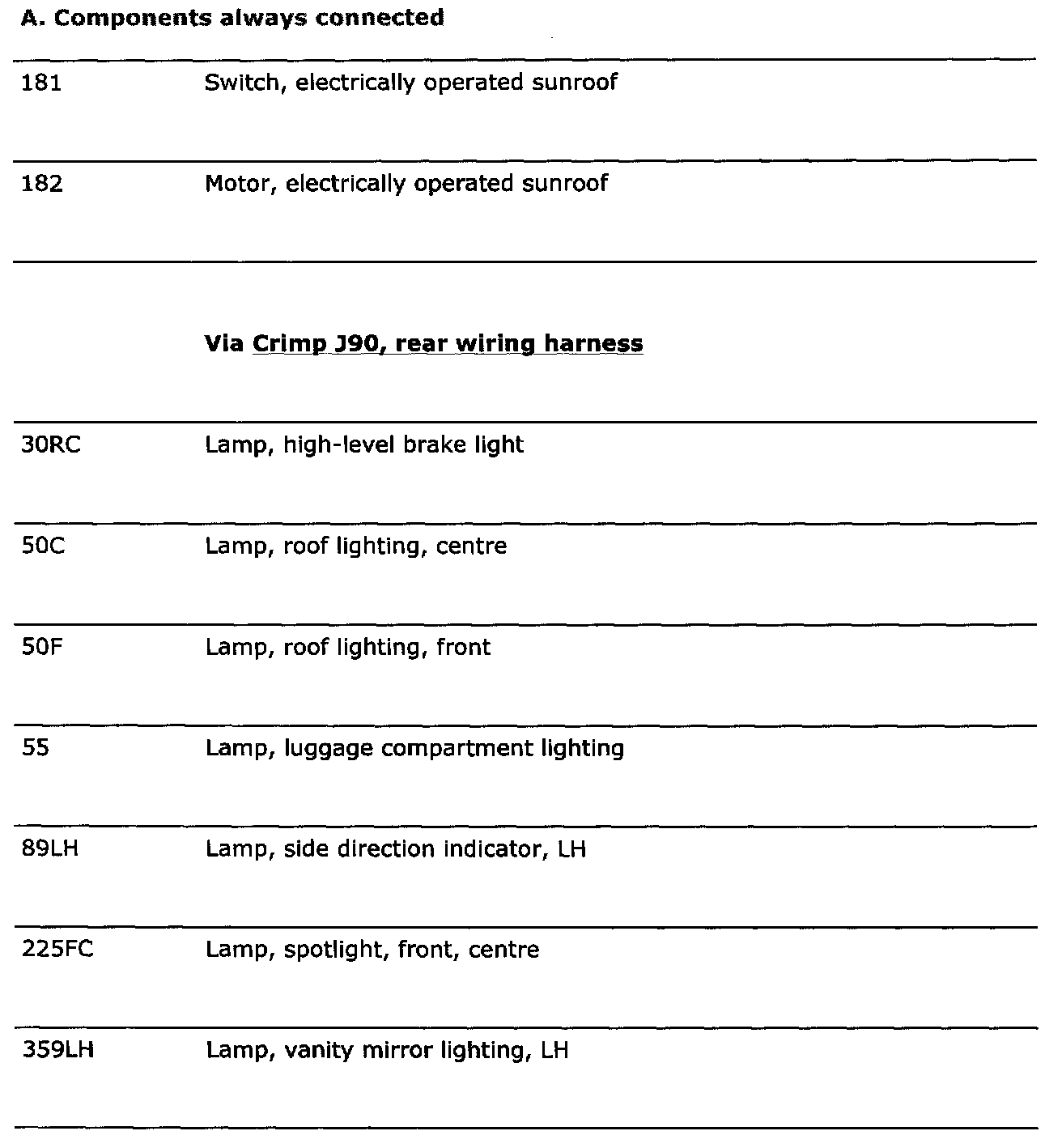

A. Components Always Connected:

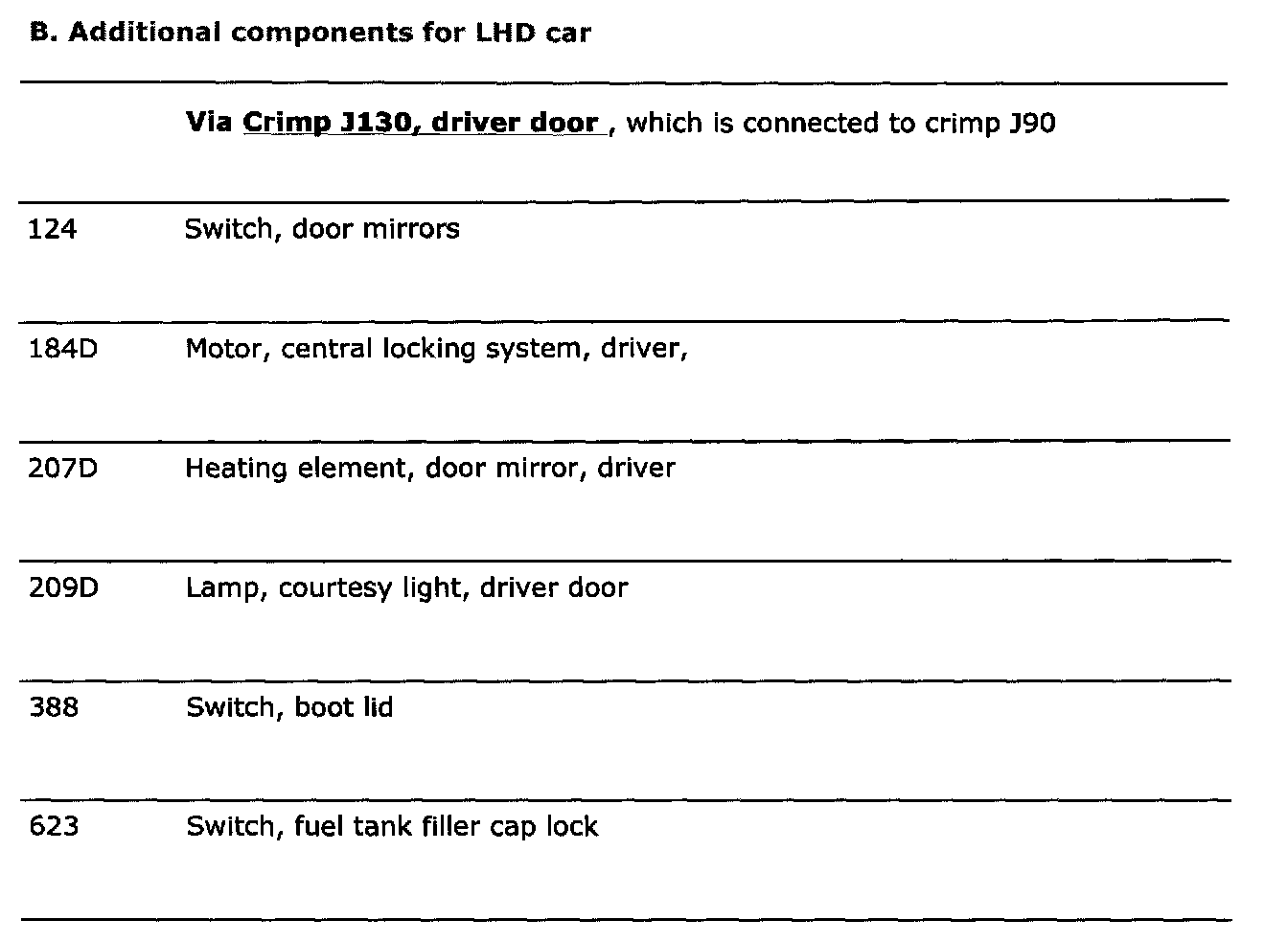

B. Additional Components For LHD Car:

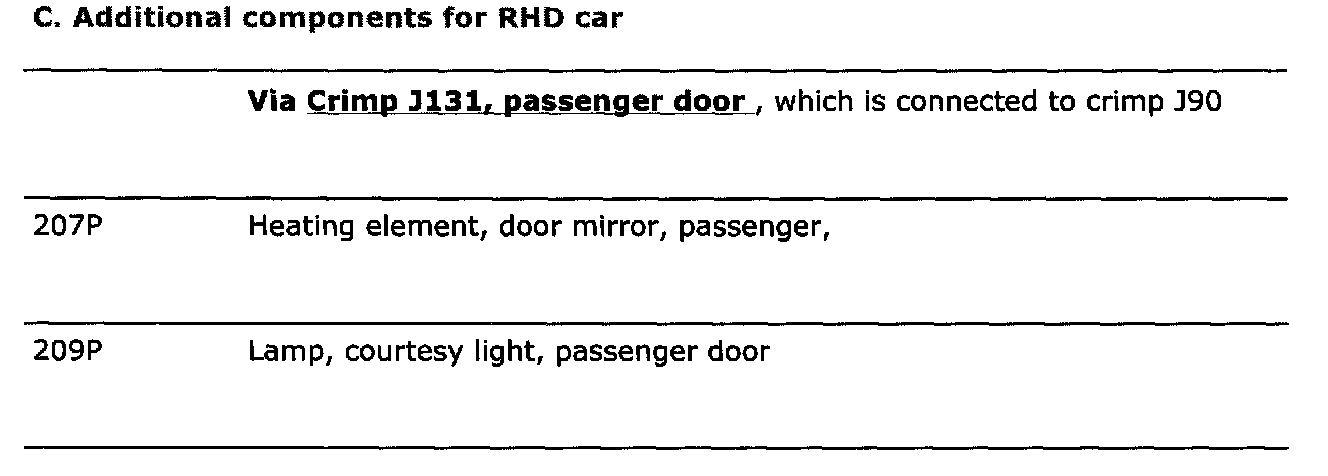

C. Additional Components For RHD Car:
