Home >> Saab >> 2004 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Related Crimp Connection Diagrams >> ABS With ESP and TCS Related Crimp Connections >> Crimp Connection J41, Instrument Harness

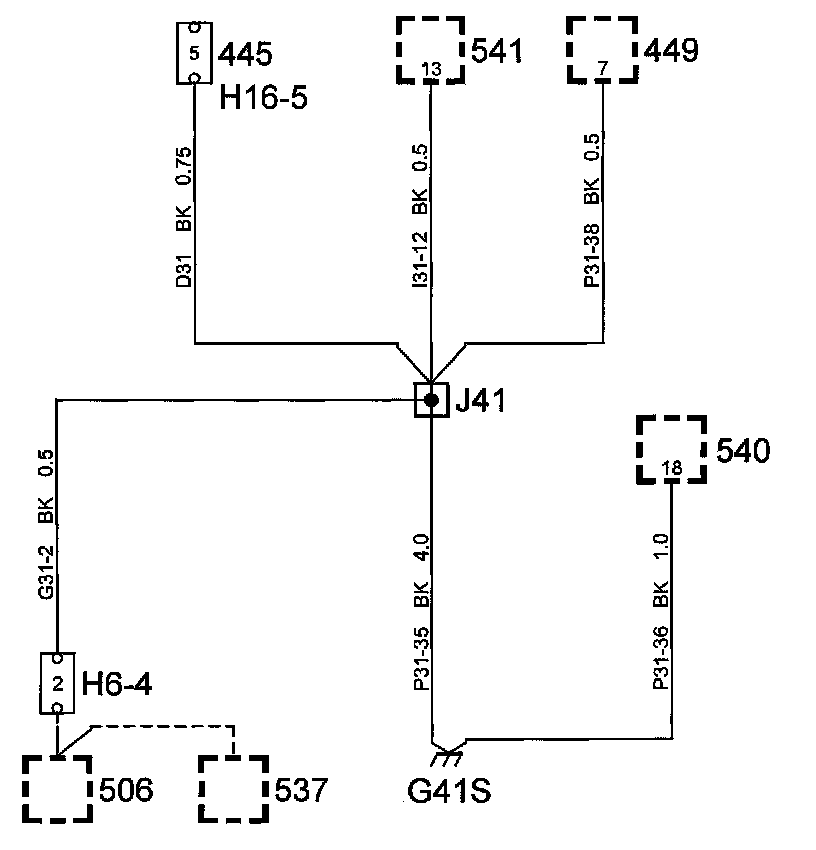

Crimp Connection J41, Instrument Harness
