Home >> Saab >> 2004 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signal Lamp >> Lamp, RR Direction Indicator (27RR)

Lamp, RR Direction Indicator (27RR)

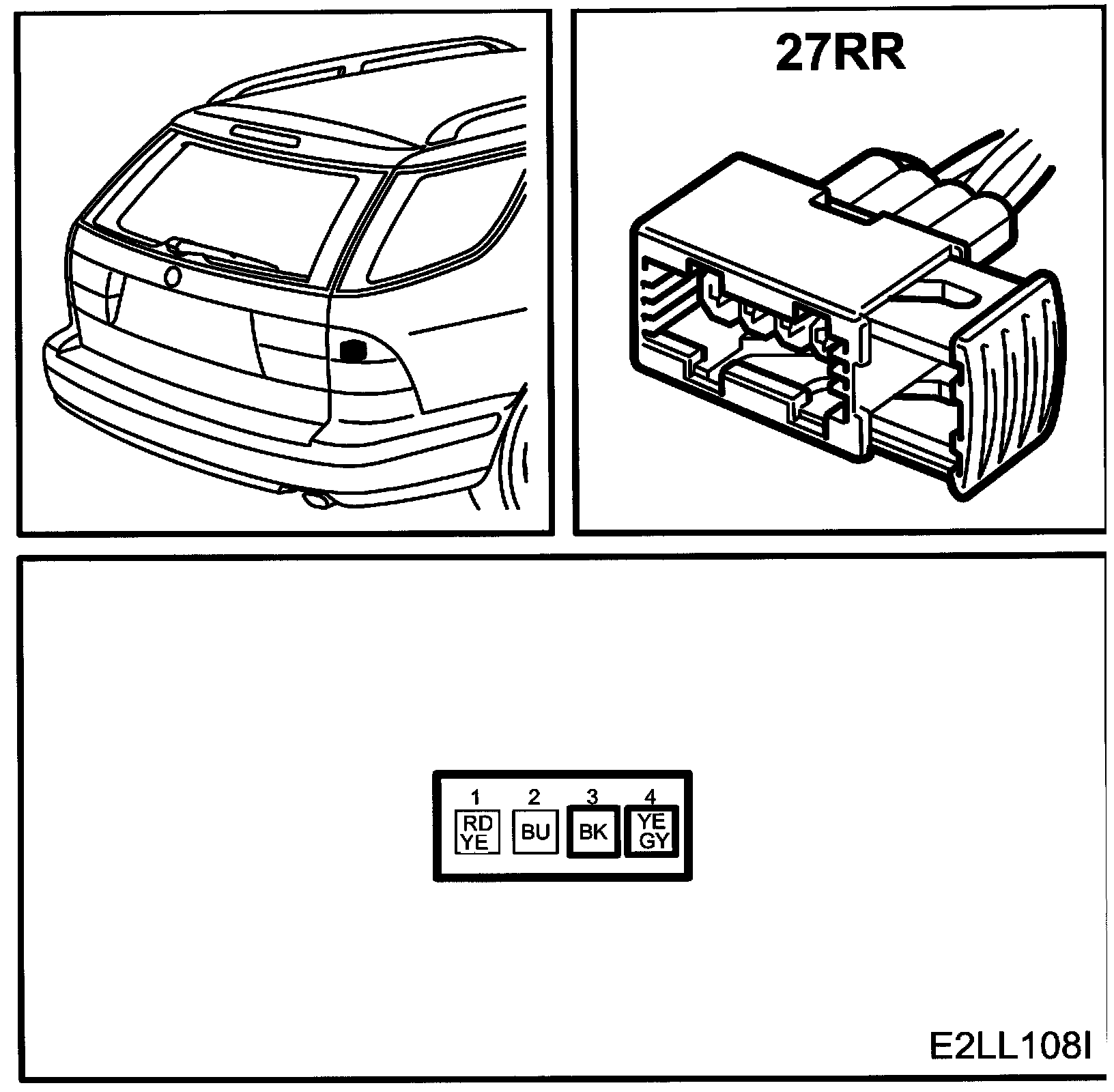

Lamp, RR Direction Indicator (27RR) (Part 1):

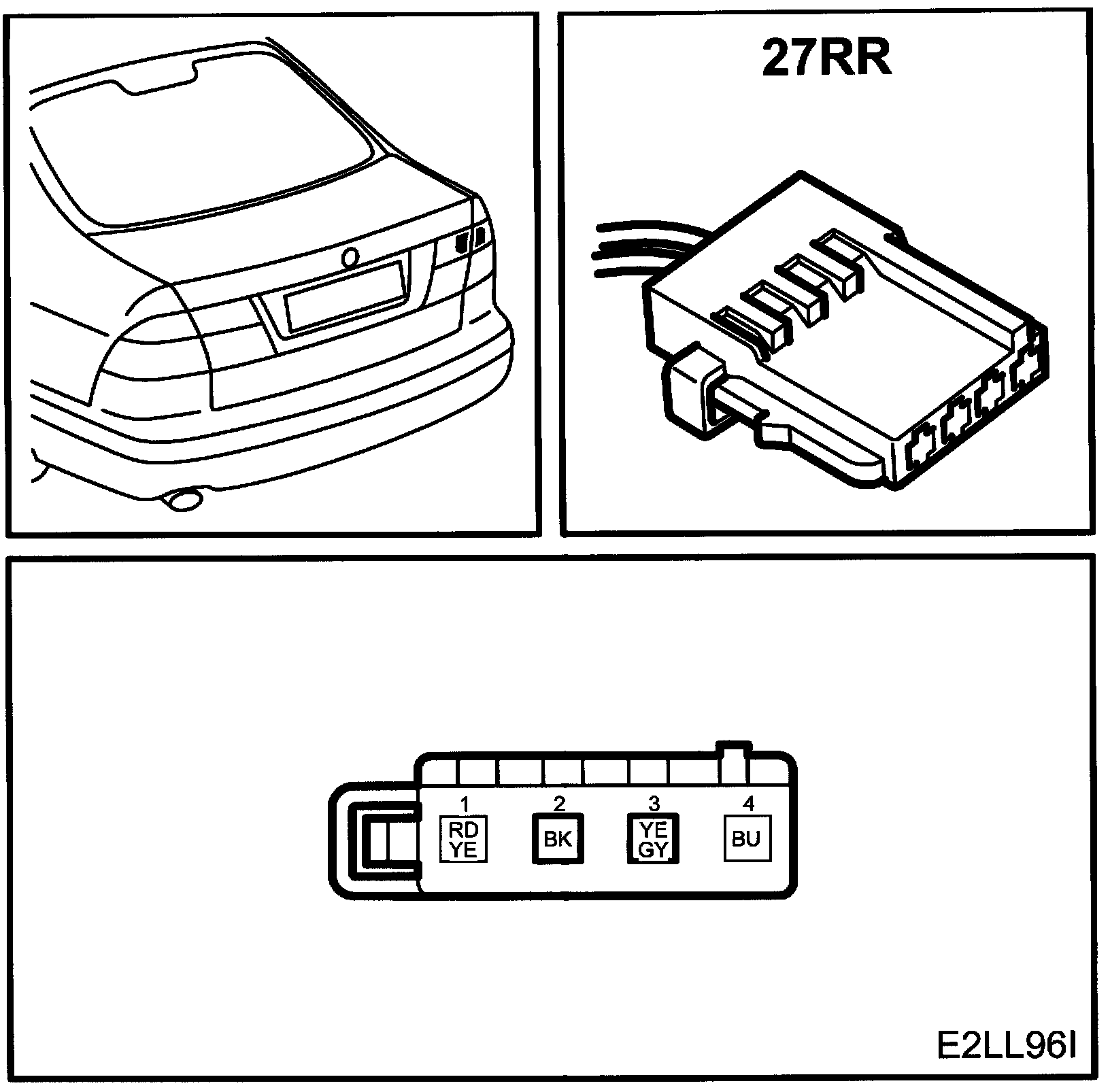

Lamp, RR Direction Indicator (27RR) (Part 2):
