Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk)

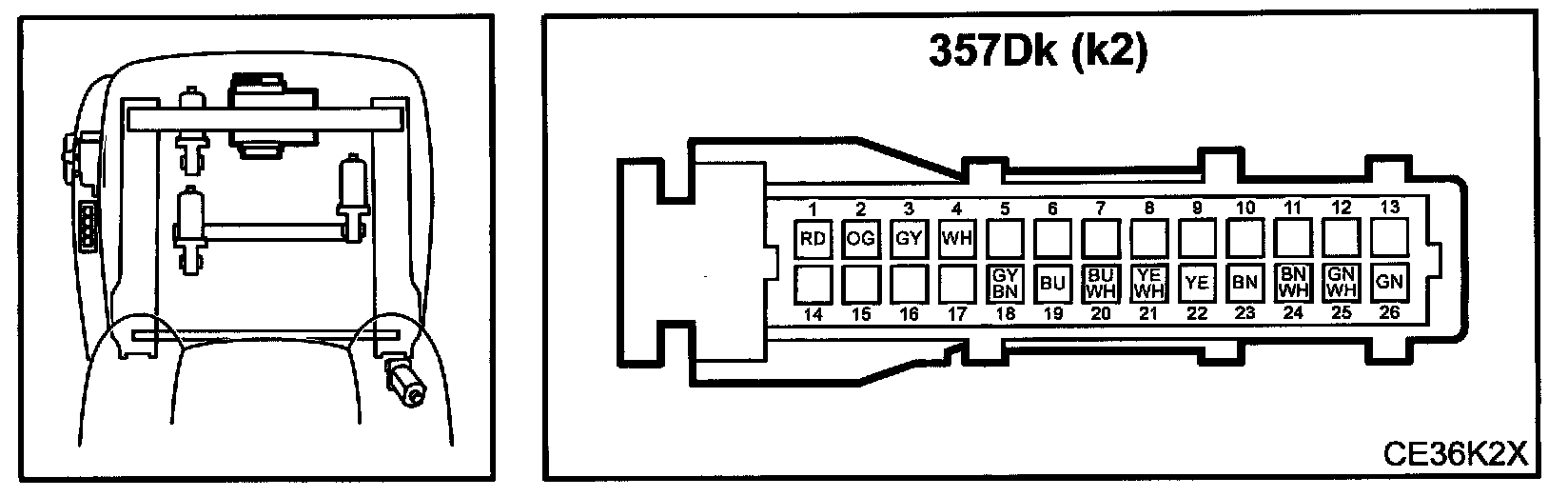

Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk) (Part 1):

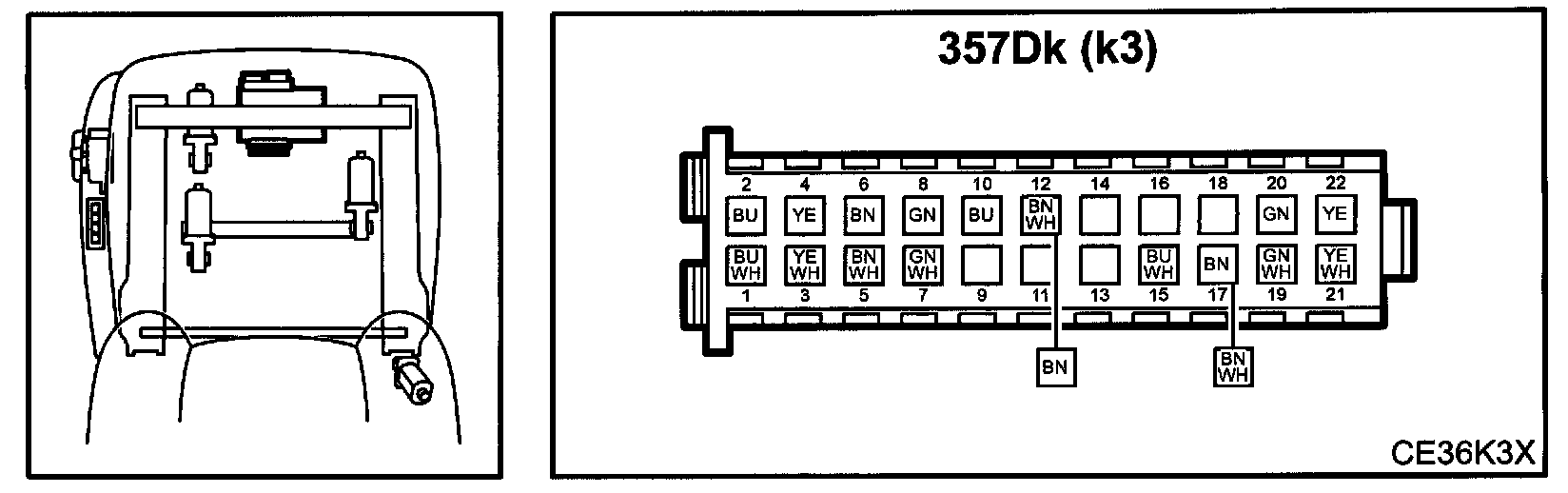

Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk) (Part 2):

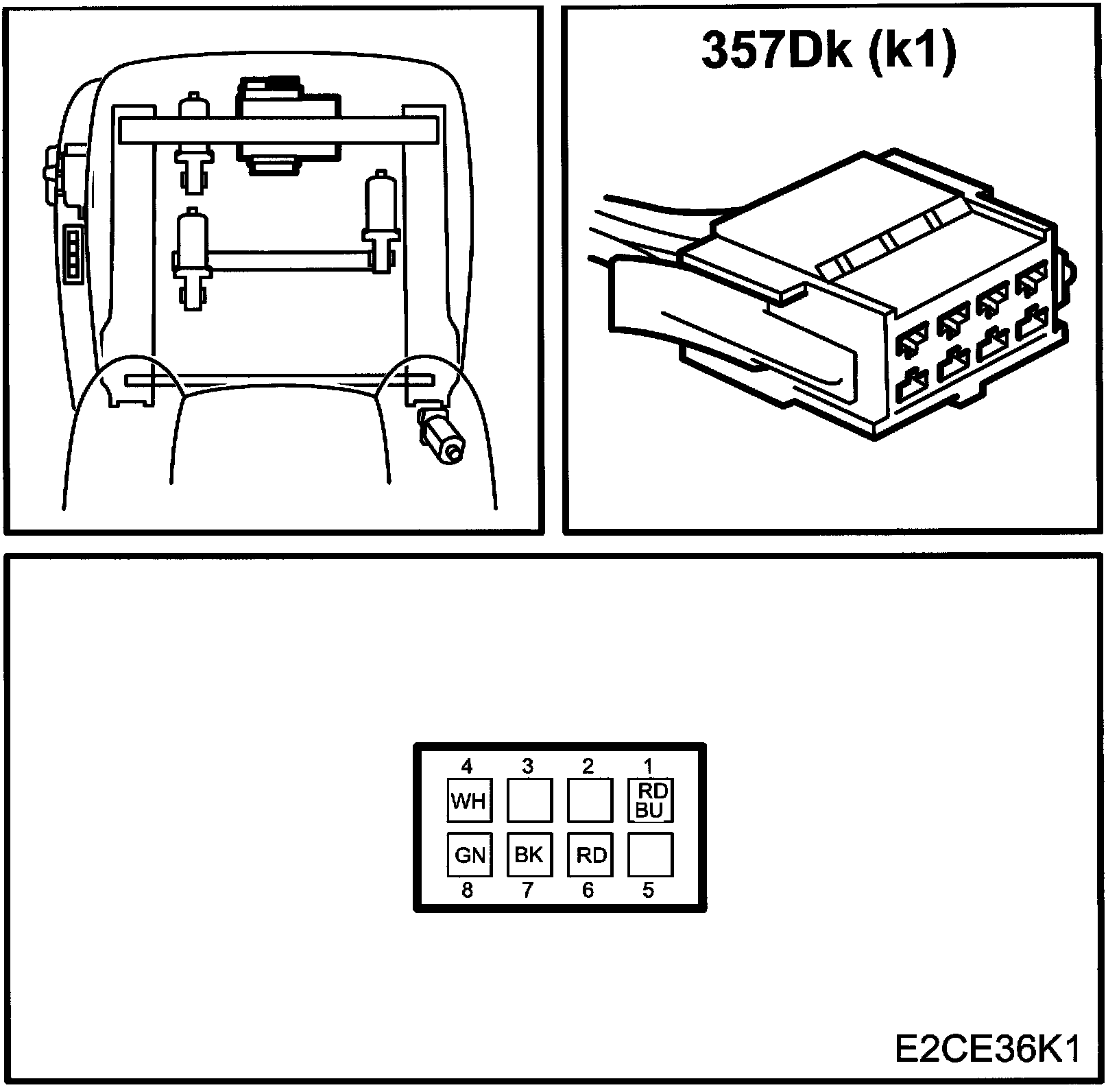

Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk) (Part 3):
