FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2004
>>
9-5 Linear (9600) L4-2.3L Turbo (2.3t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fog/Driving Lamp
>>
System Diagram
>>
Lamp, LH Rear Fog Light (33HL)
Lamp, LH Rear Fog Light (33HL)

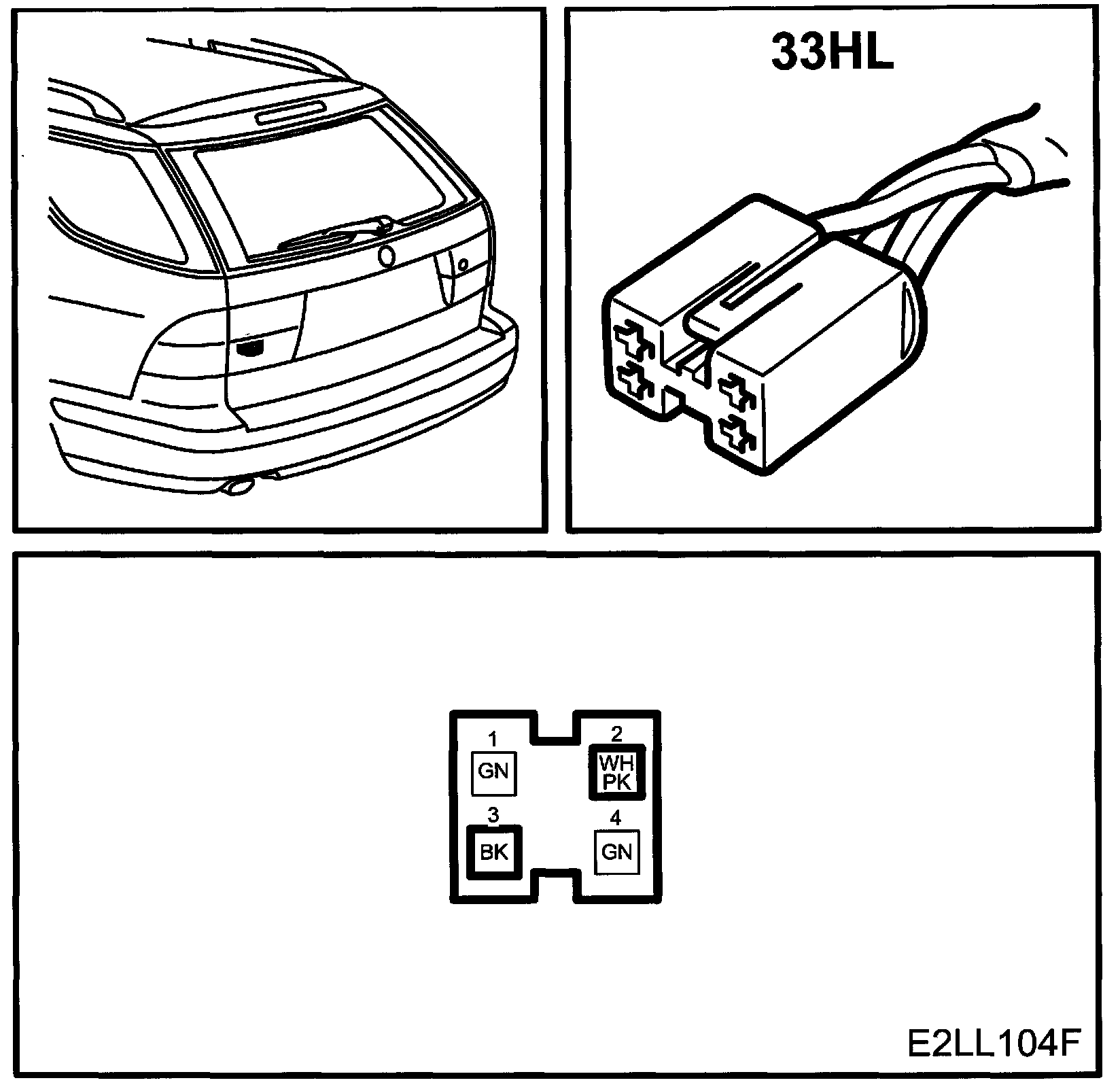

Lamp, LH Rear Fog Light (33HL) (Part 1):

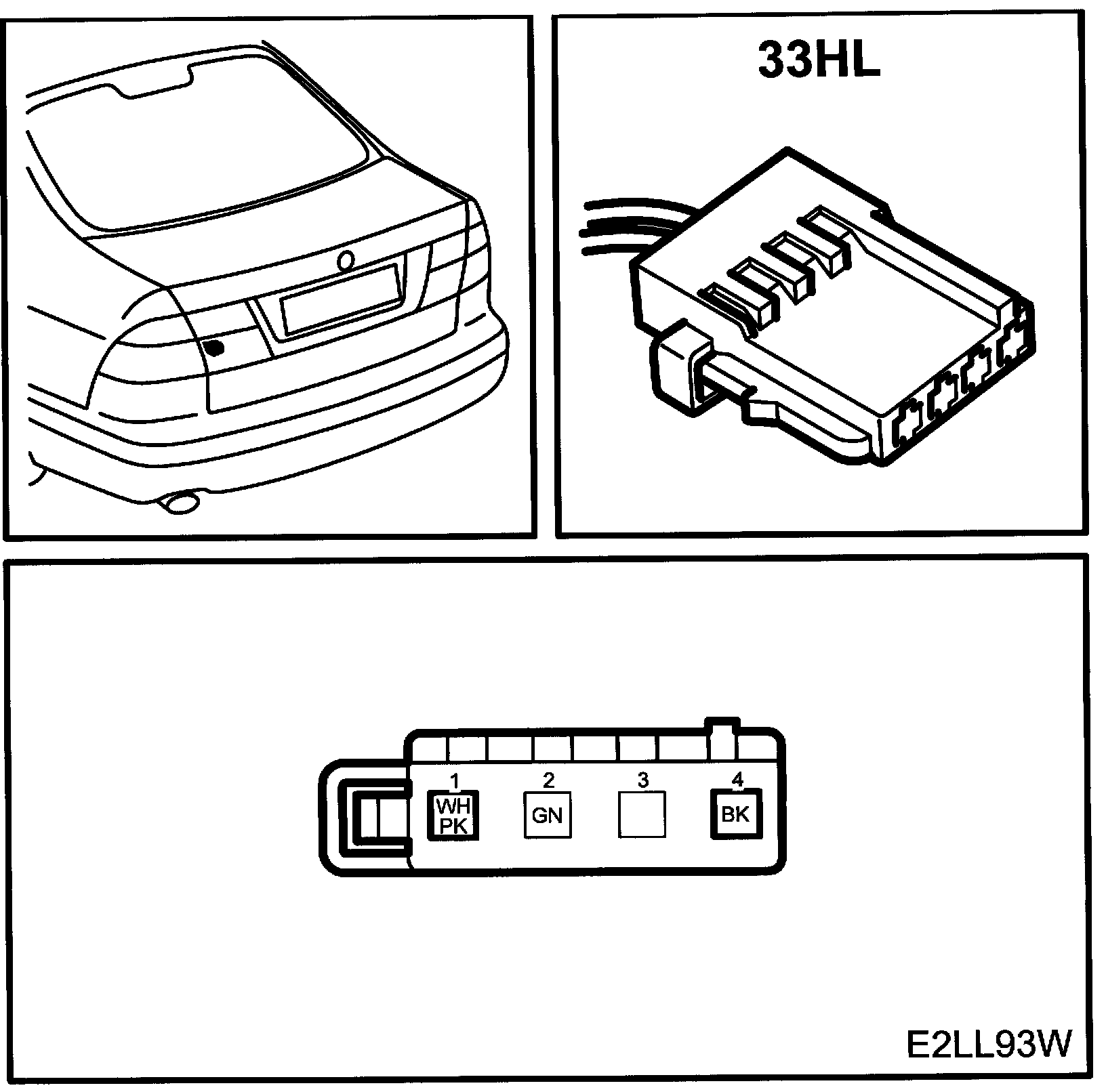

Lamp, LH Rear Fog Light (33HL) (Part 2):
