Home >> Saab >> 2004 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp >> System Diagram >> Lamp, LH Reversing Light (32HL)

Lamp, LH Reversing Light (32HL)

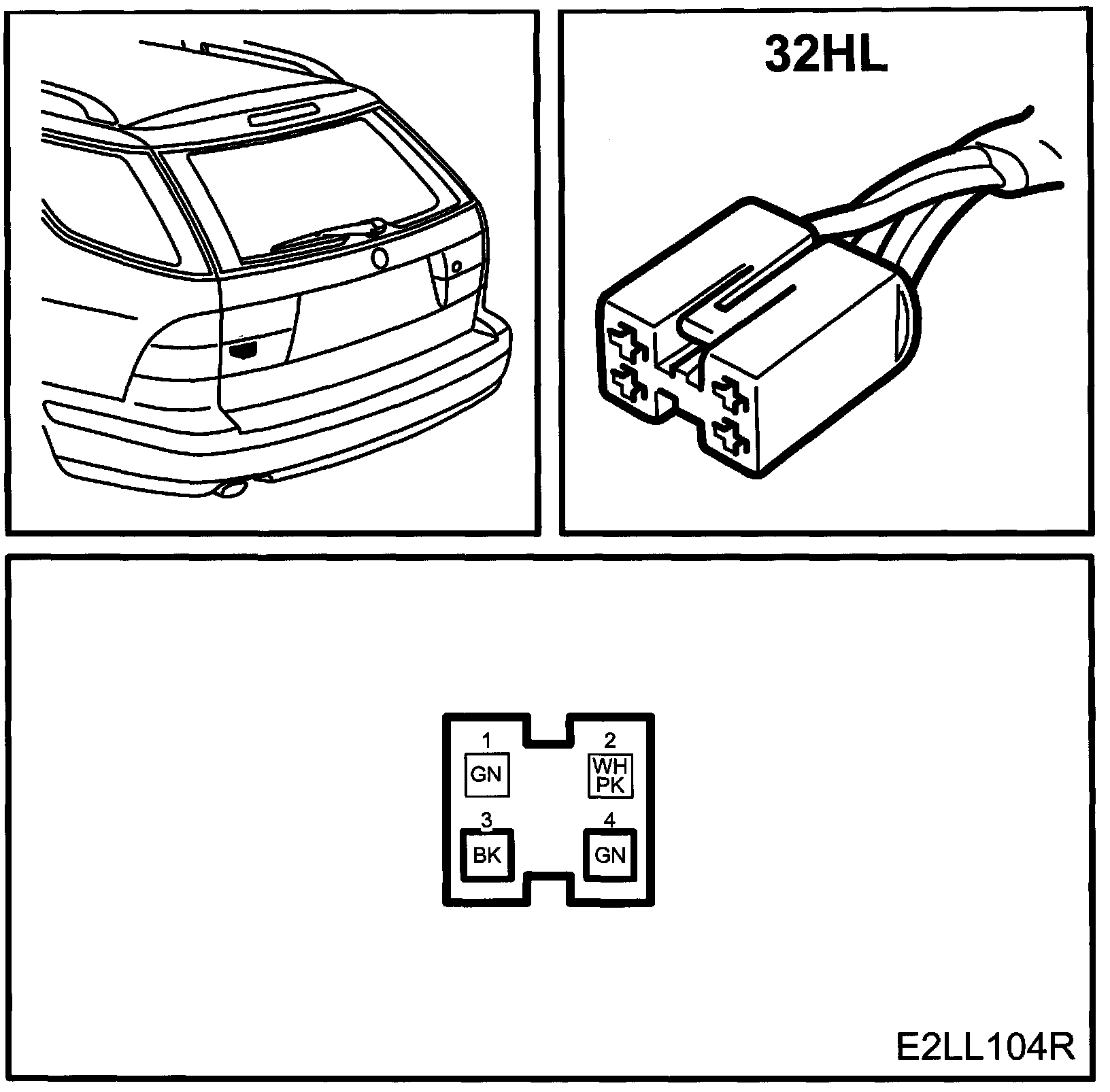

Lamp, LH Reversing Light (32HL) (Part 1):

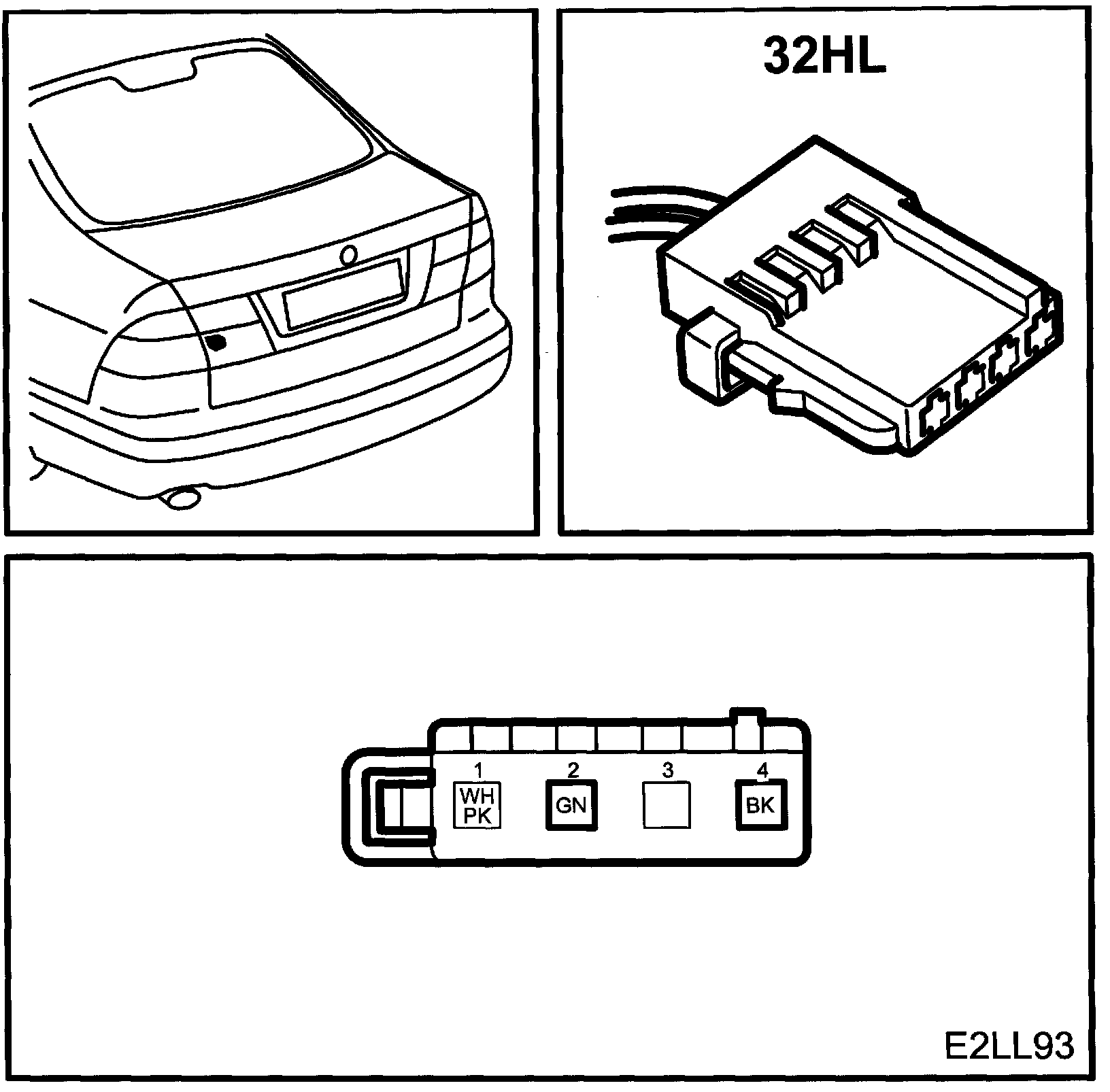

Lamp, LH Reversing Light (32HL) (Part 2):
