Home >> Saab >> 2004 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Navigation System >> Navigation/Telephone Switch (693)

Navigation/Telephone Switch (693)

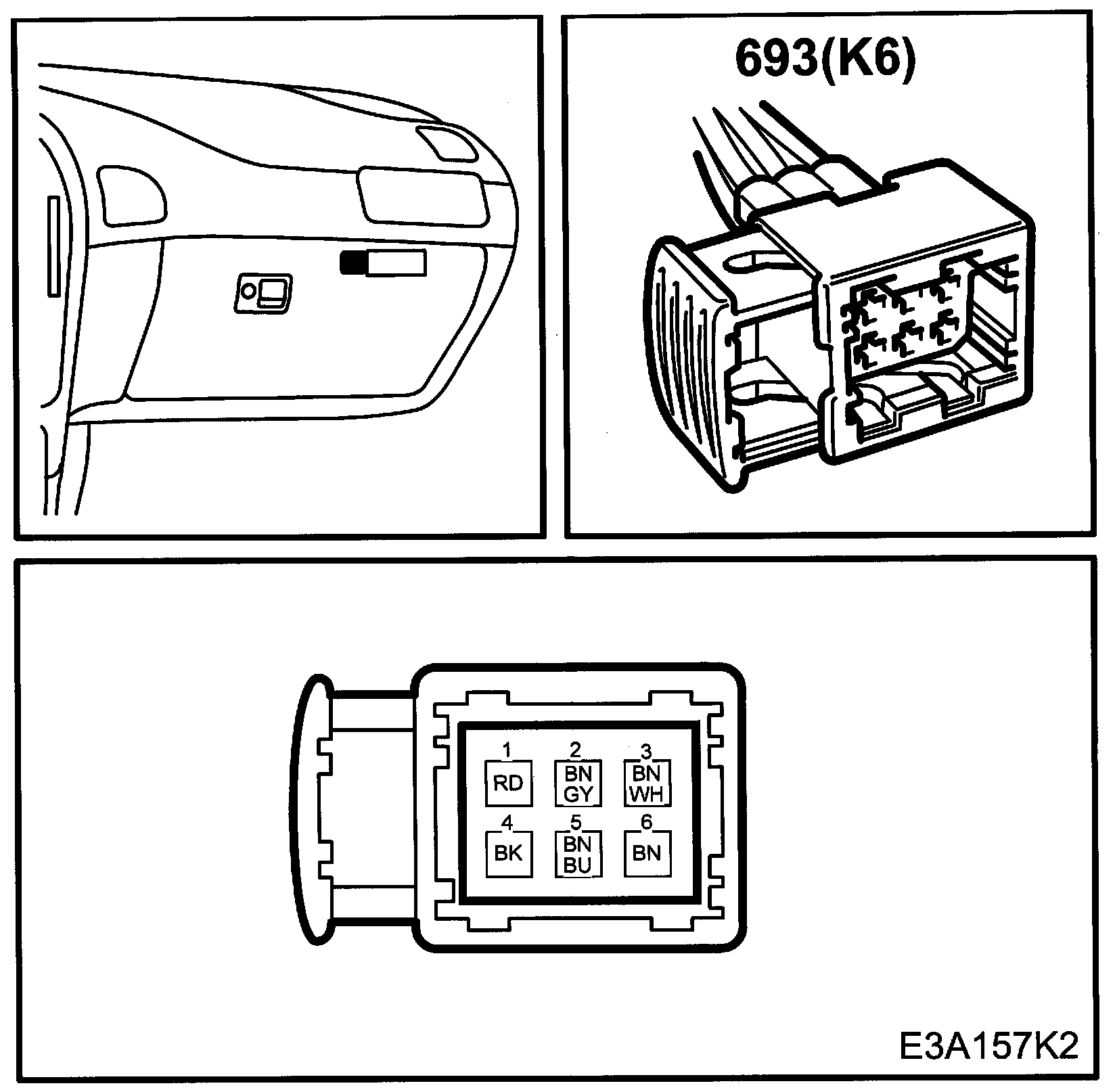

Switch, Navigation/Telephone (693) (Part 1):

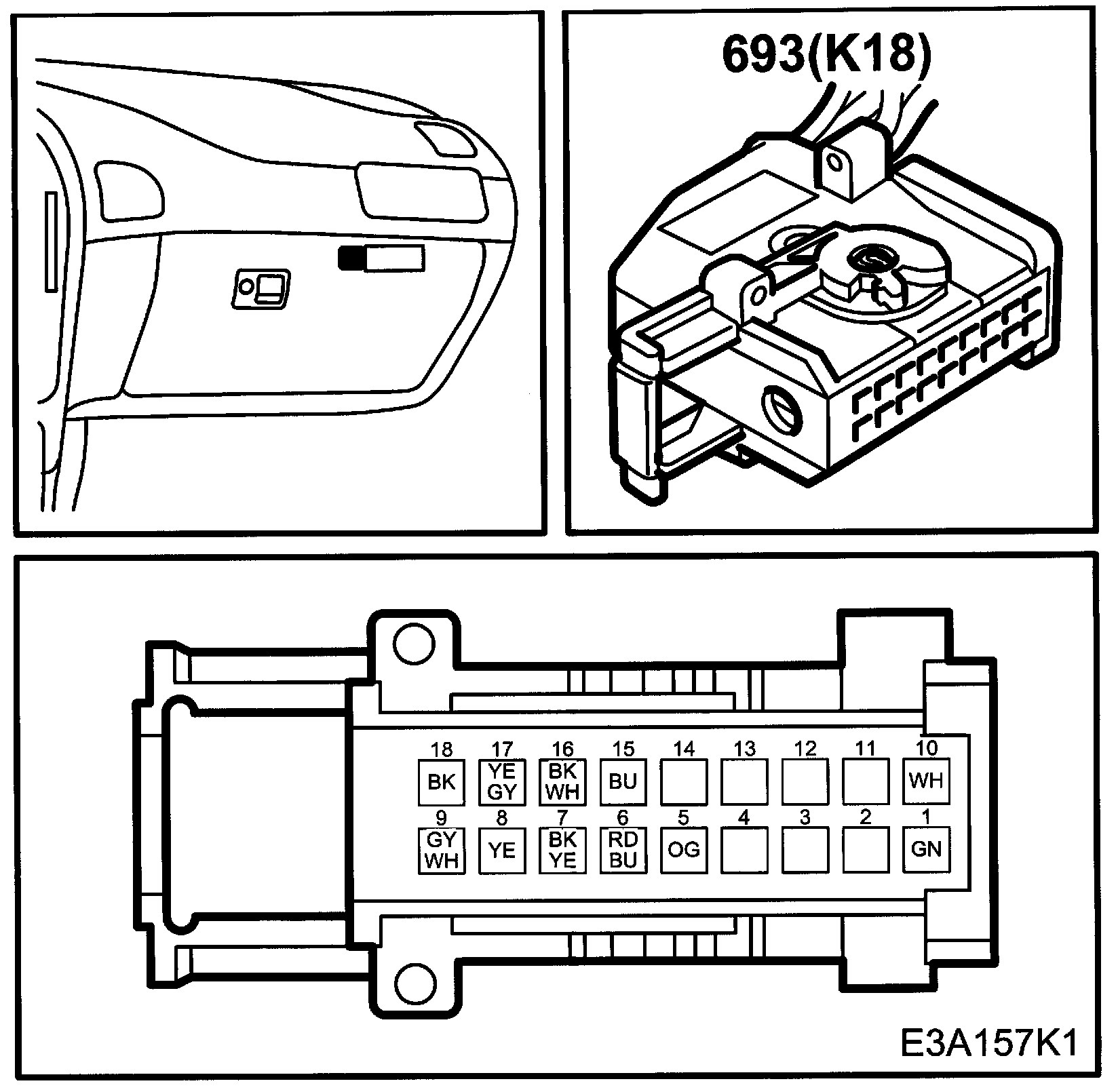

Switch, Navigation/Telephone (693) (Part 2):
