ABS Warning Lamp Constantly ON

ABS lamp shines constantly





Fault symptoms
ABS lamp shines constantly.
No DTCs generated.

Conditions

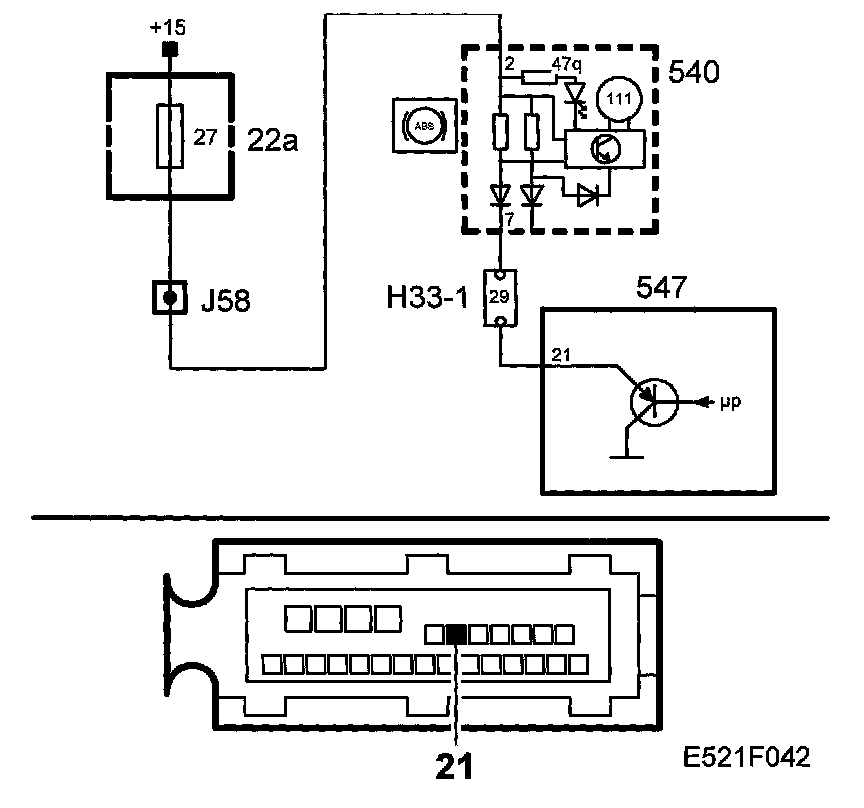

^ Circuit between pin 21 on the ABS control module and pin 7 on the MIU shorting to ground.
^ Short-circuit contact strip in connector defective.

Diagnostic help
The ABS warning lamp can be activated using the diagnostic tool.
- Select "Activate"
- Select "ABS warning lamp".
