ABS Warning Lamp Does Not Come ON

ABS warning lamp does not come on





Fault symptoms
Lamp test is conducted when the ignition is turned on. ABS warning lamp should light for about 3 seconds. ABS warning lamp does not come on.

Conditions

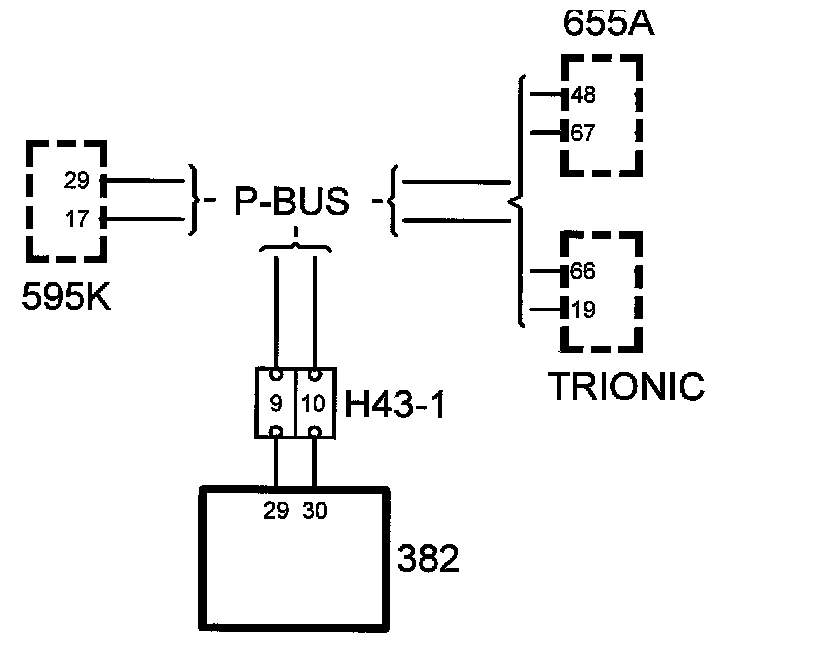

Bus communication must be functioning.

Diagnostic help
The ABS warning lamp can be activated with the diagnostic tool.
^ Select "Activate"
^ Select "ABS lamp"
