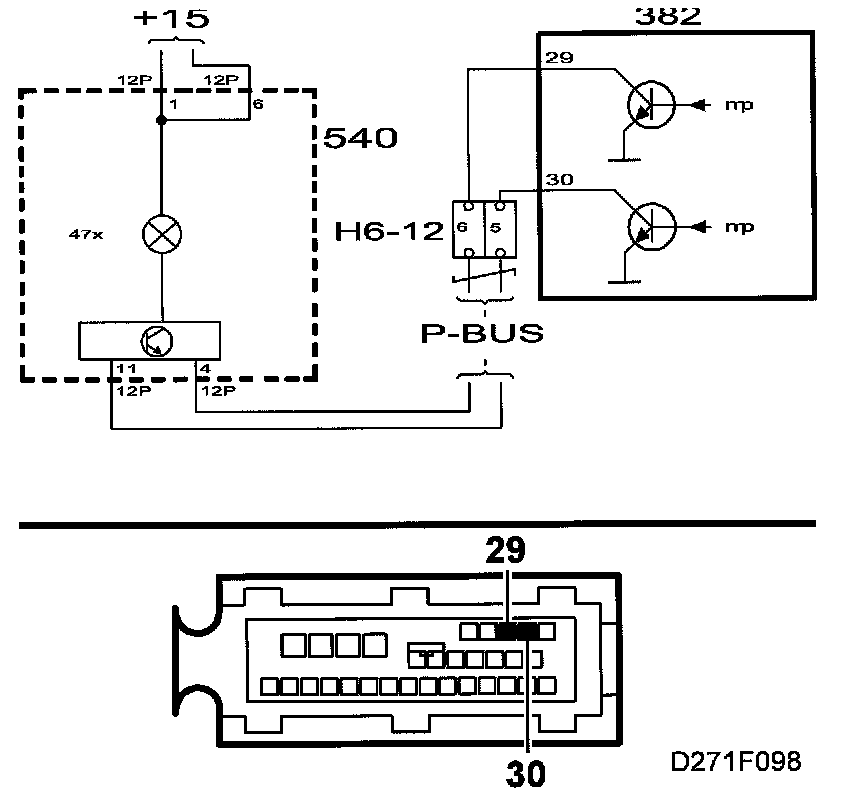

The Lamp For ESP Operative Does Not Light

The lamp for ESP operative does not light





Fault symptoms
When the ignition is turned on, a bulb test is performed. The lamp for ESP operative should come on for 3 seconds. The ESP lamp does not come on.

Conditions
Bus communication must be functioning.

Diagnostic help
The ESP indicator lamp can be activated with the diagnostic tool.
^ Select "Activate".
^ Select "ESP Lamp"
