Grounding Point G30

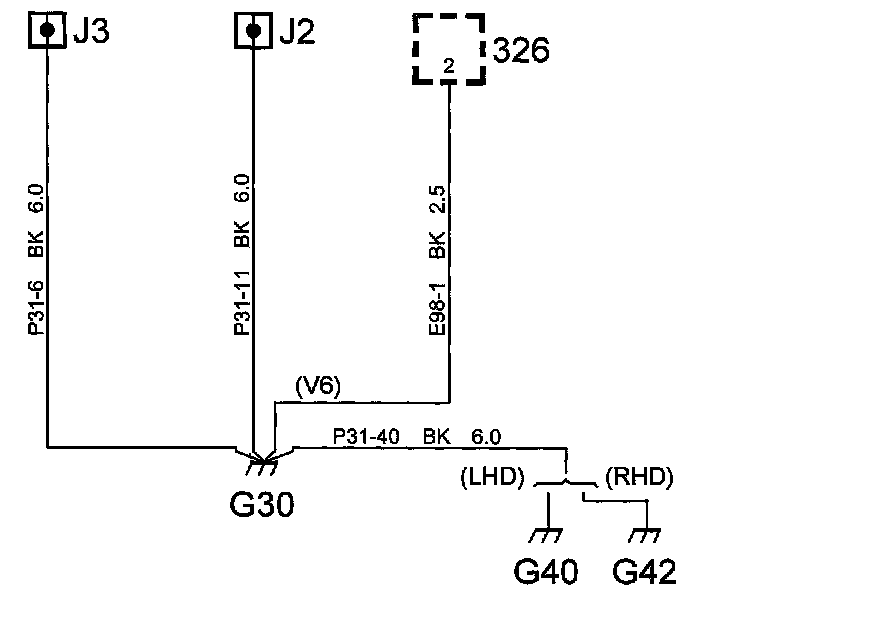

Grounding point G30








Location: In the engine bay on the side panel in front of the left-hand wheel housing

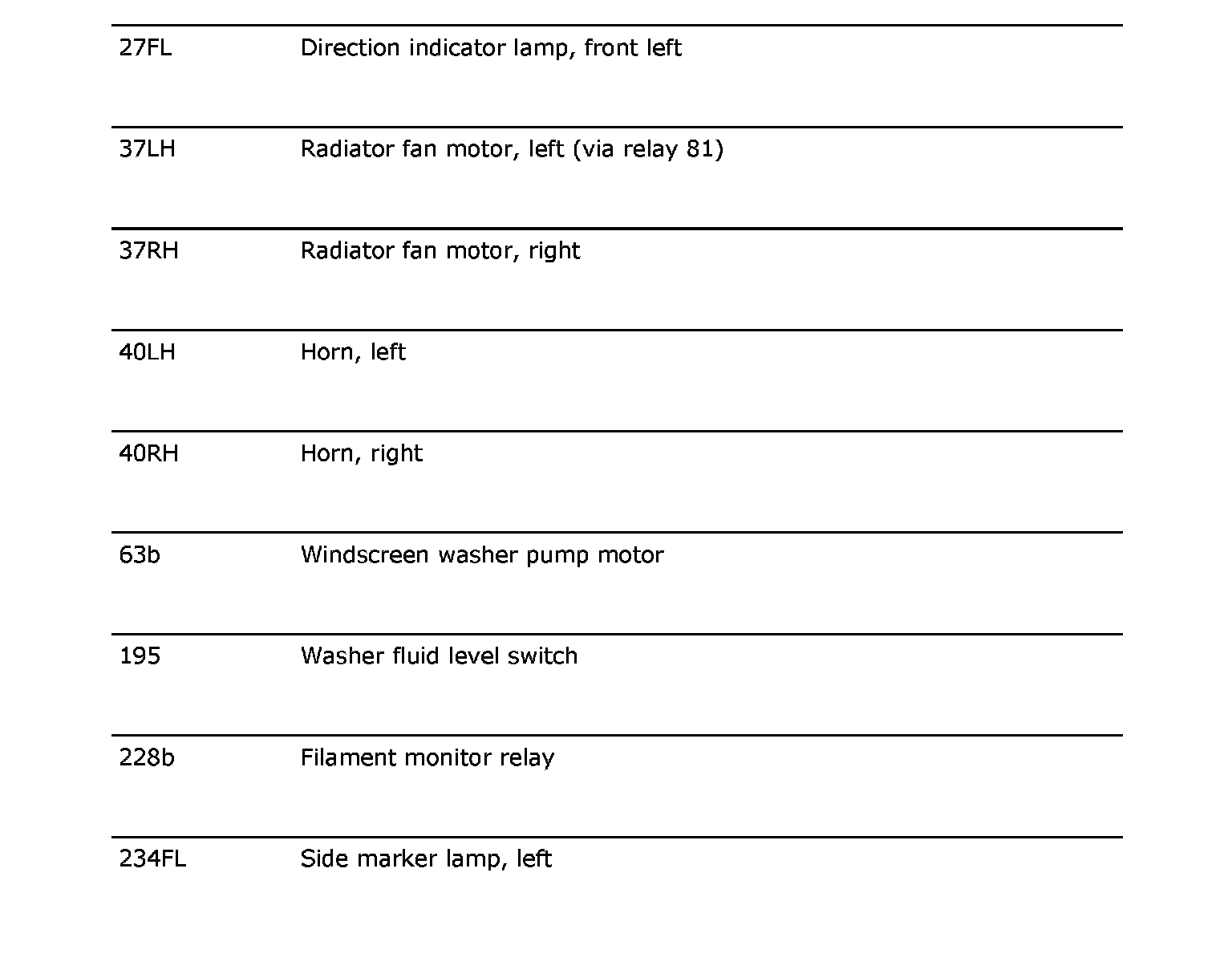

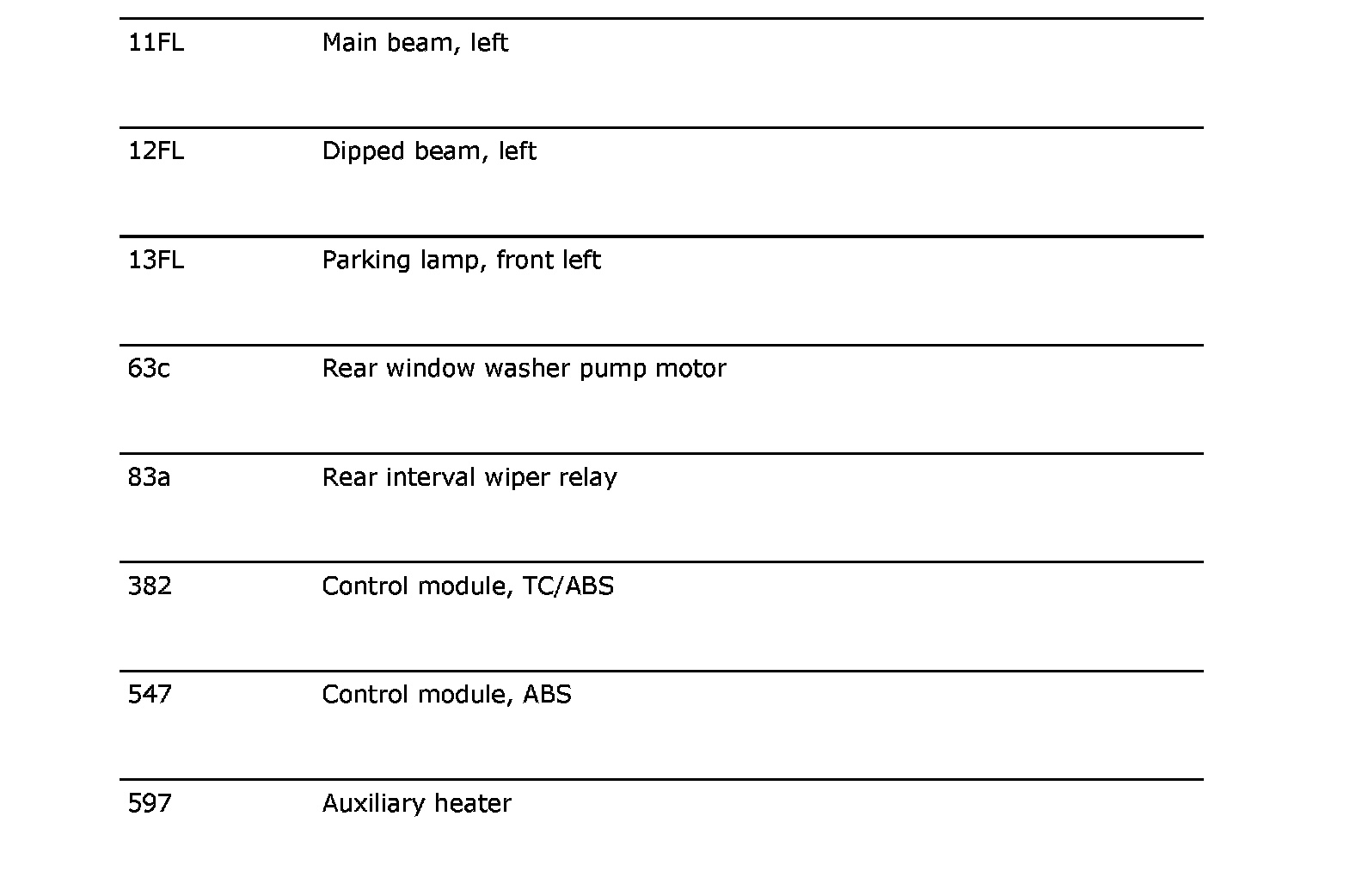

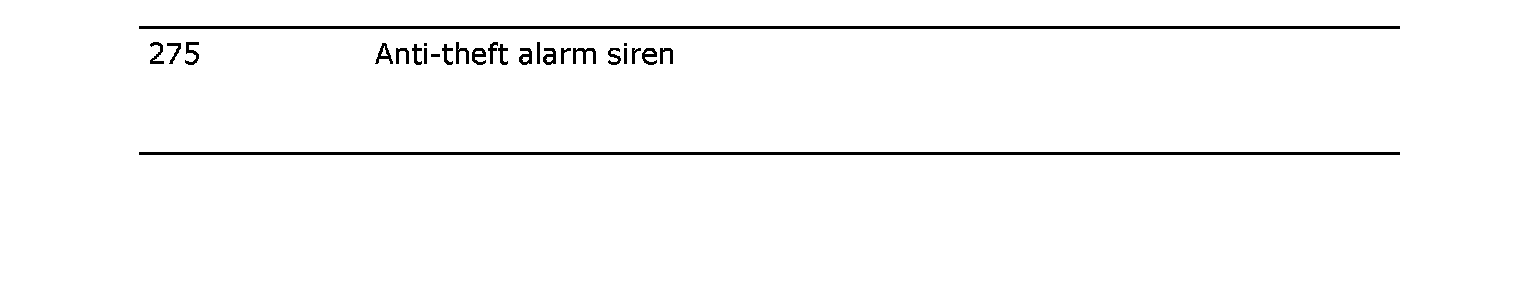

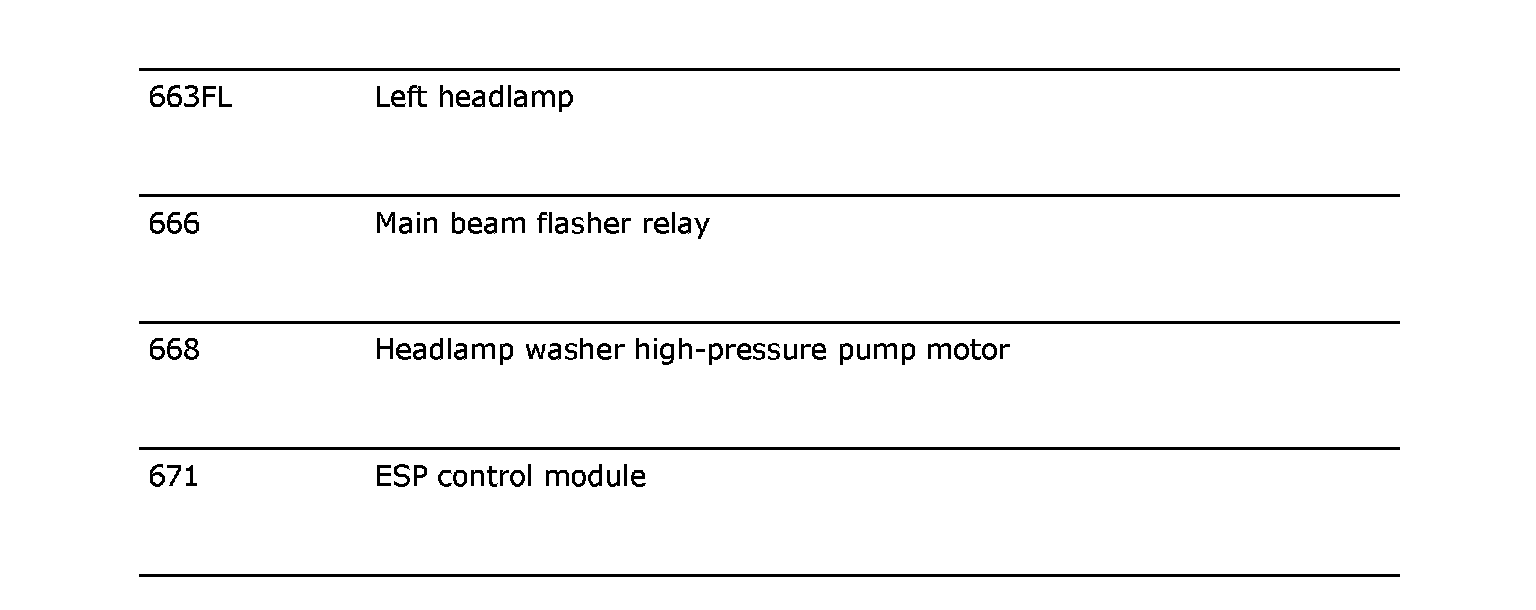

Connected components








Via Crimp, J2, front harness








Via Crimp, J3, front harness
