Grounding Point G42

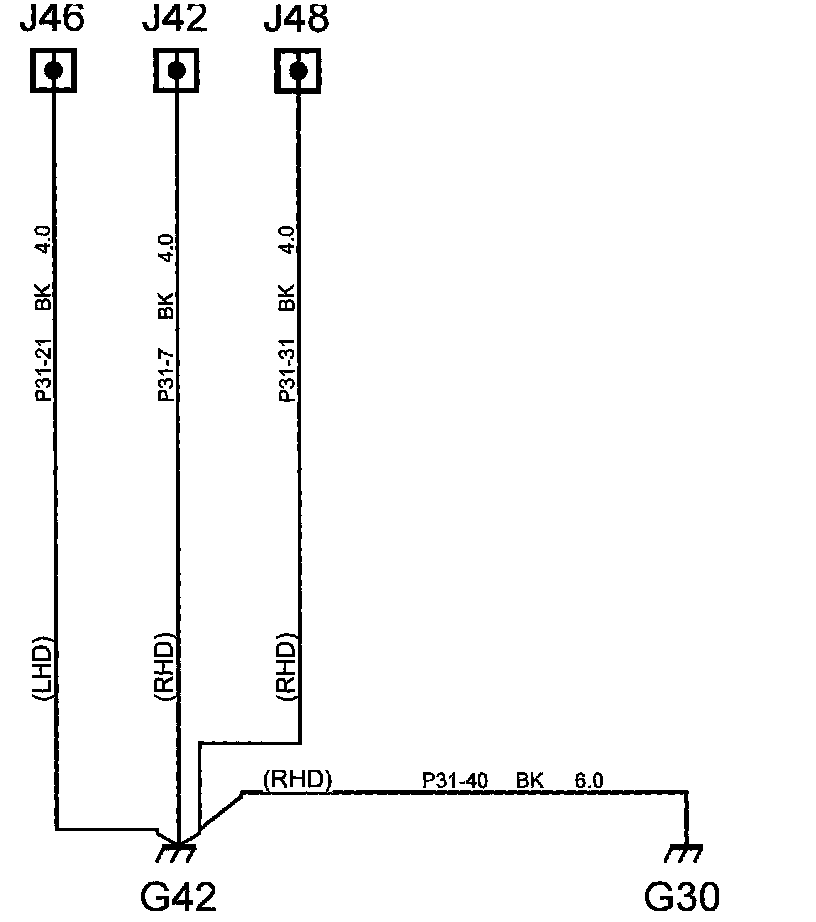

Grounding point G42

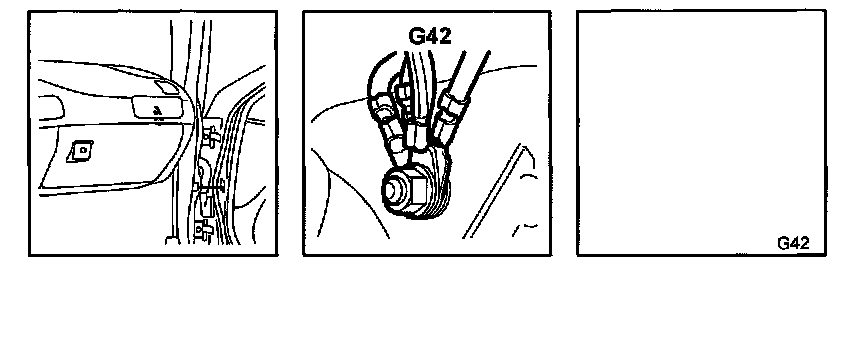

Location: On right-hand side of knee member.

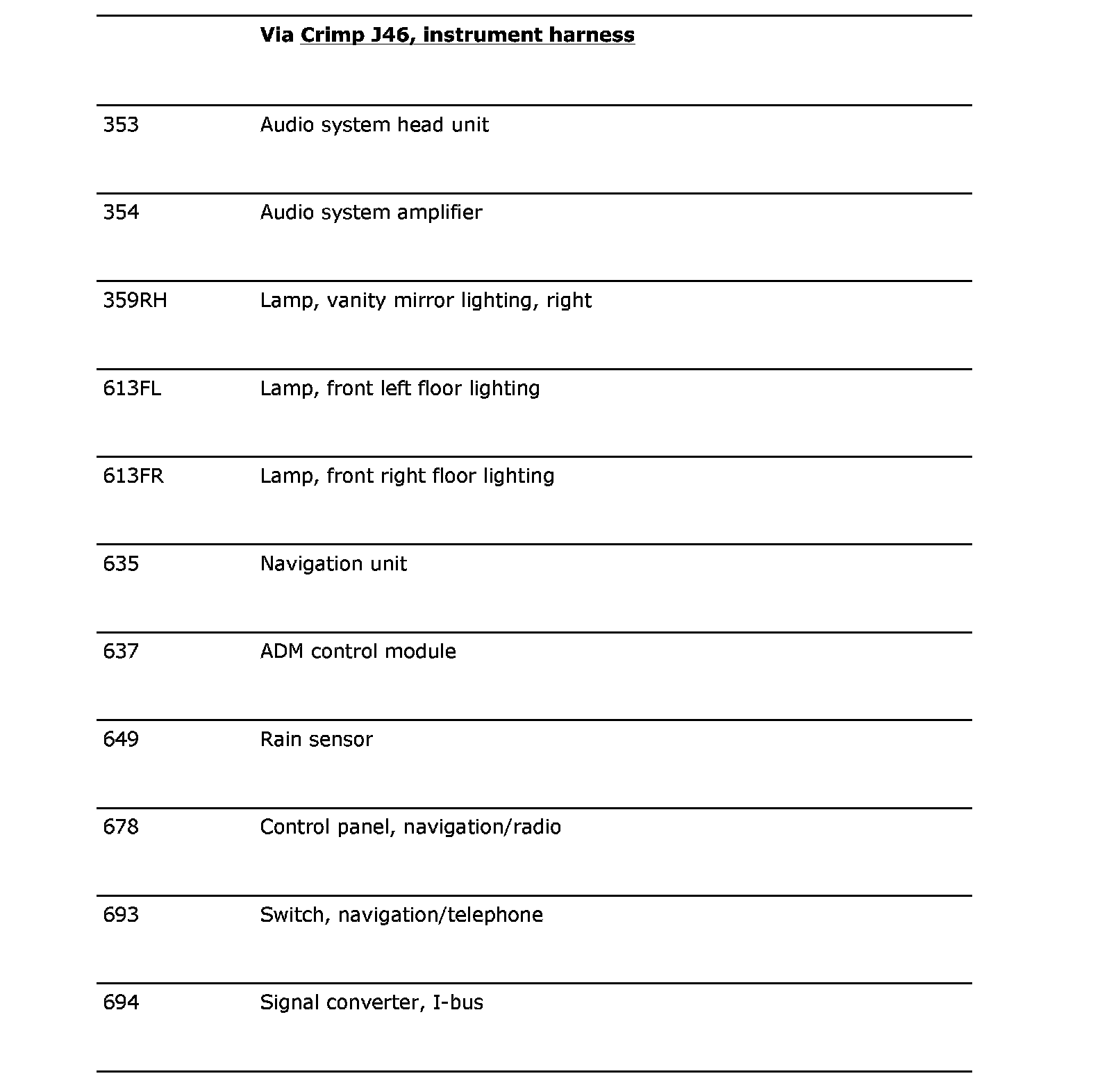

A. Connected components of LHD car

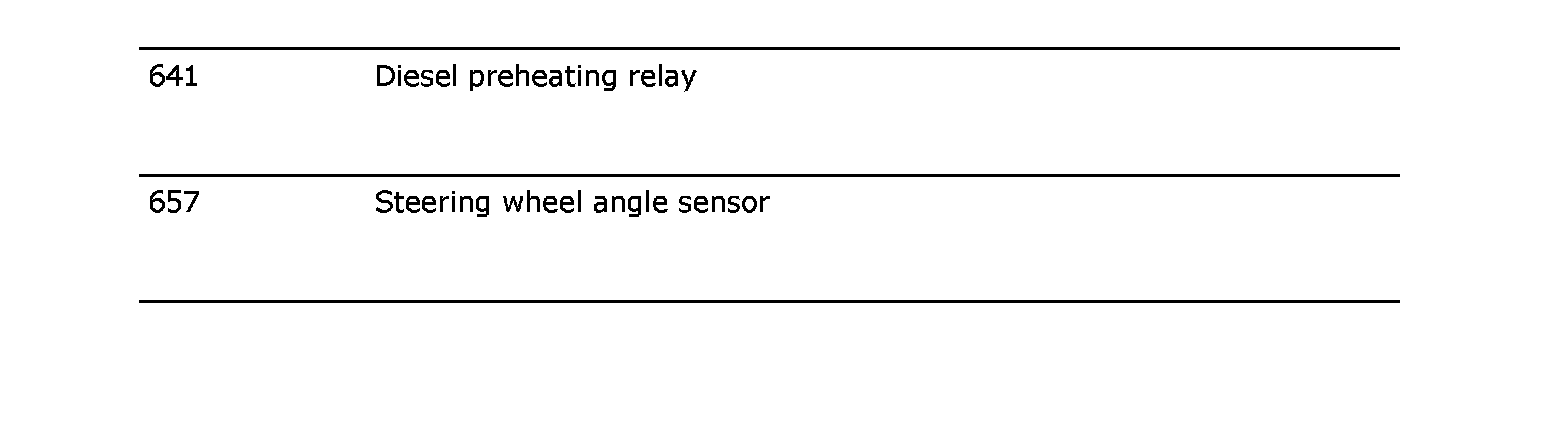

B. Connected components of RHD car

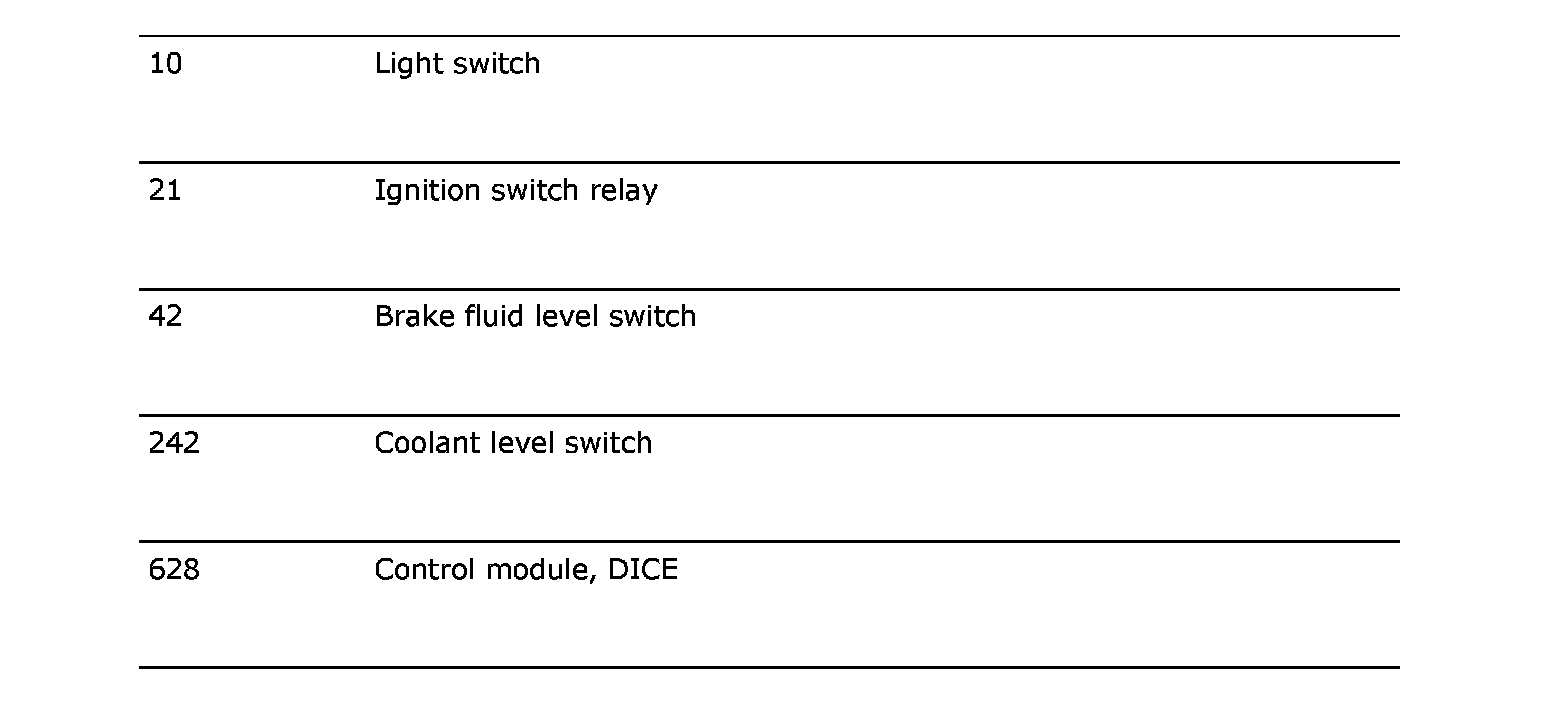

Via Crimp J42, instrument harness

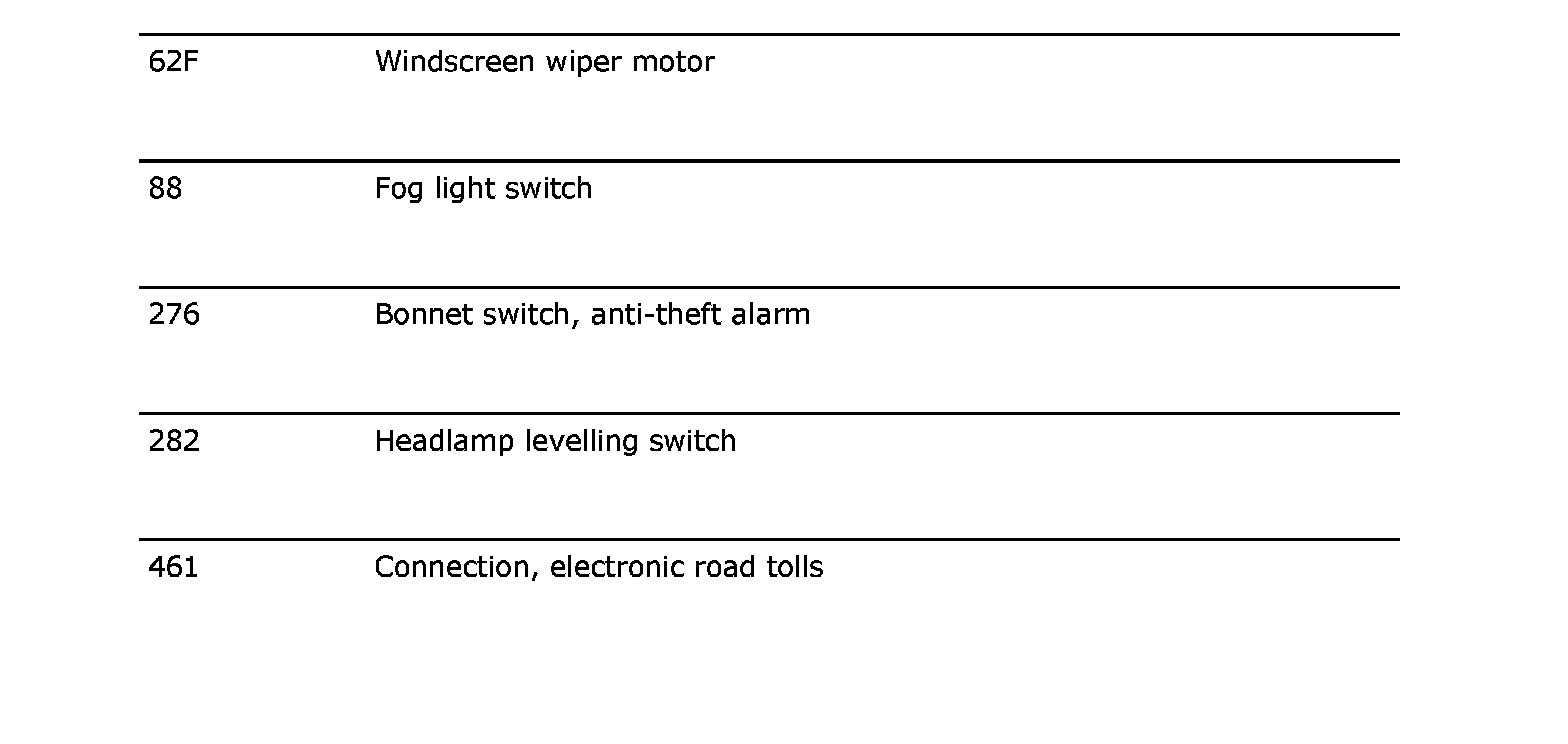

Via Crimp J48, instrument harness
