Grounding Point G41S

Grounding point G41S

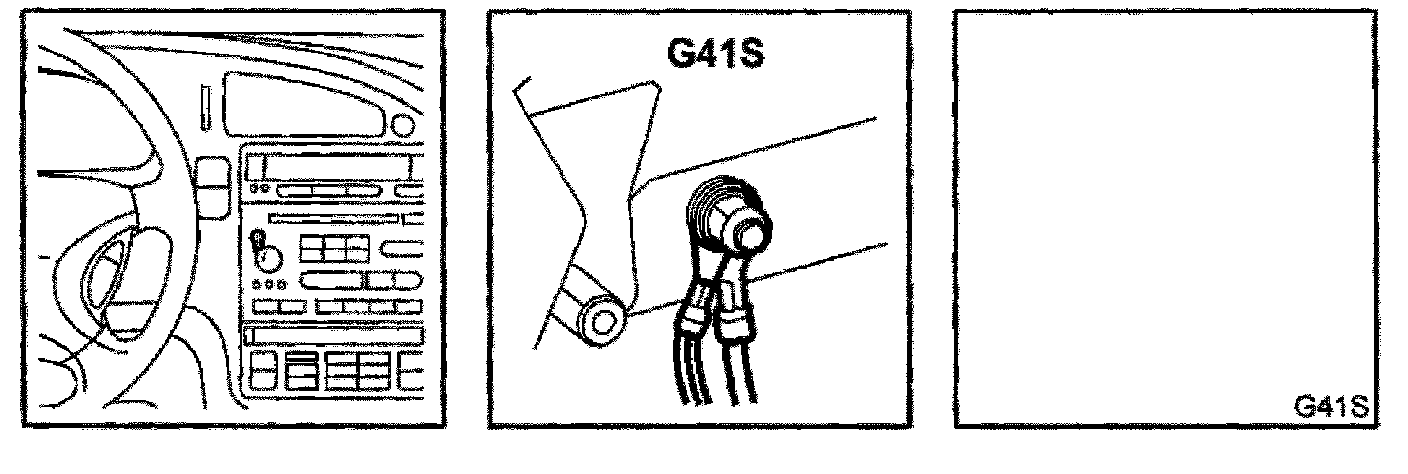

Location: Left-hand grounding screw in centre of knee protection bar (in cabin)

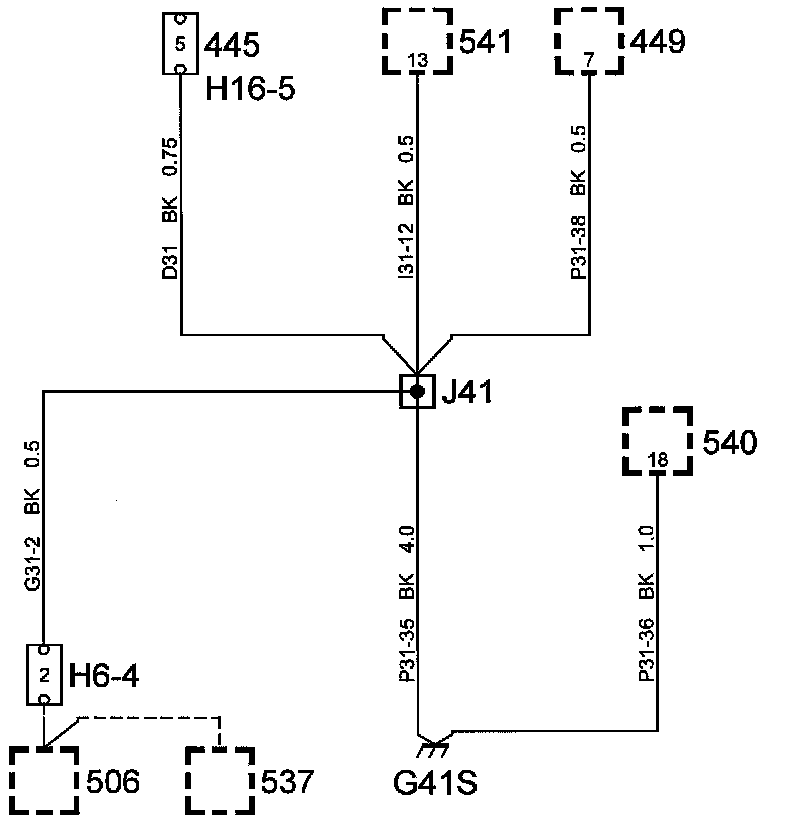

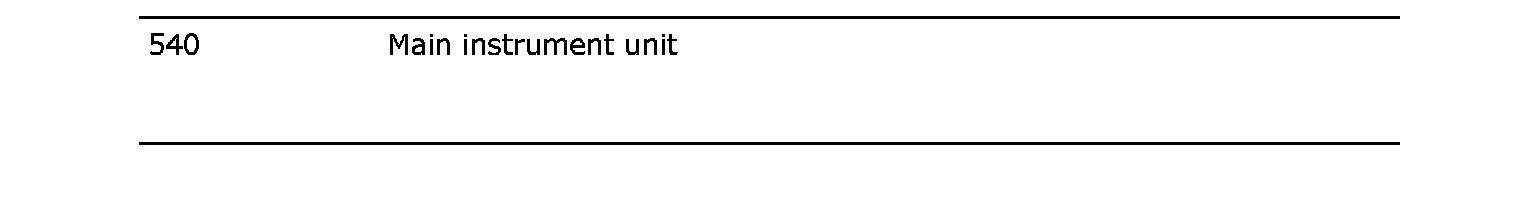

Connected components





Via Crimp J41, instrument harness
