Grounding Point G40

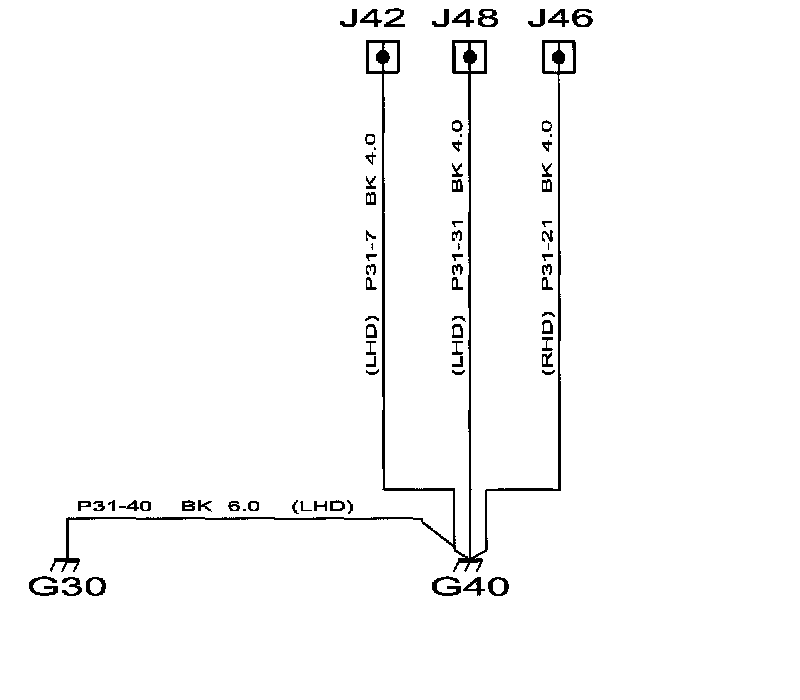

Grounding point G40

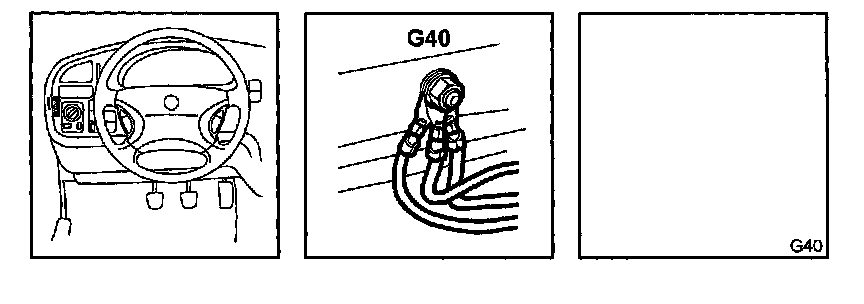

Location: In passenger compartment on left-hand side of knee member.

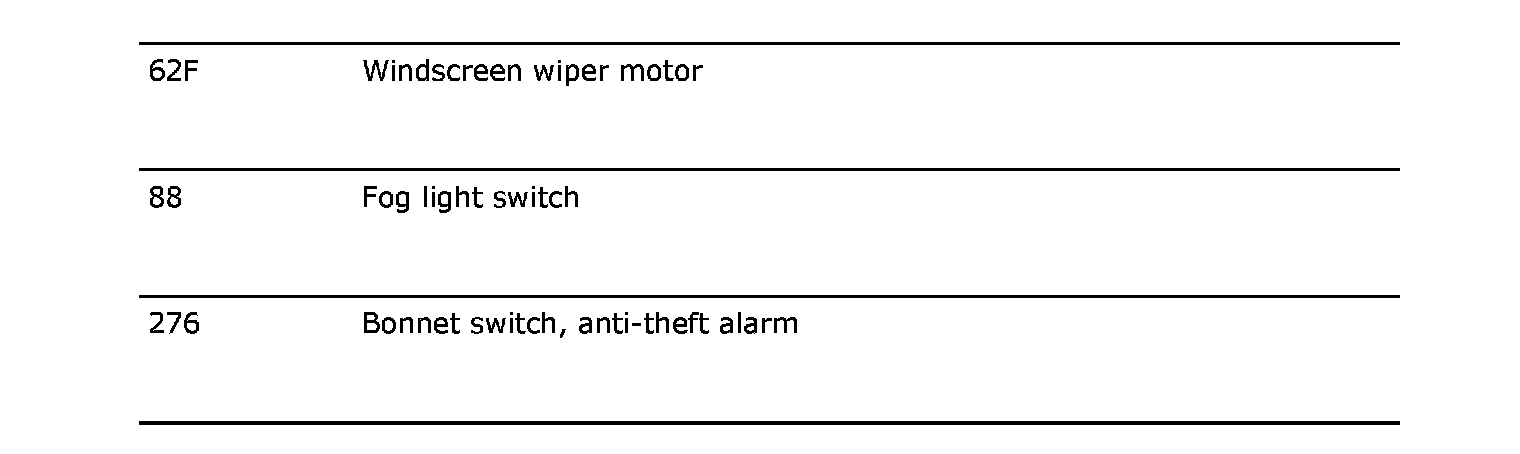

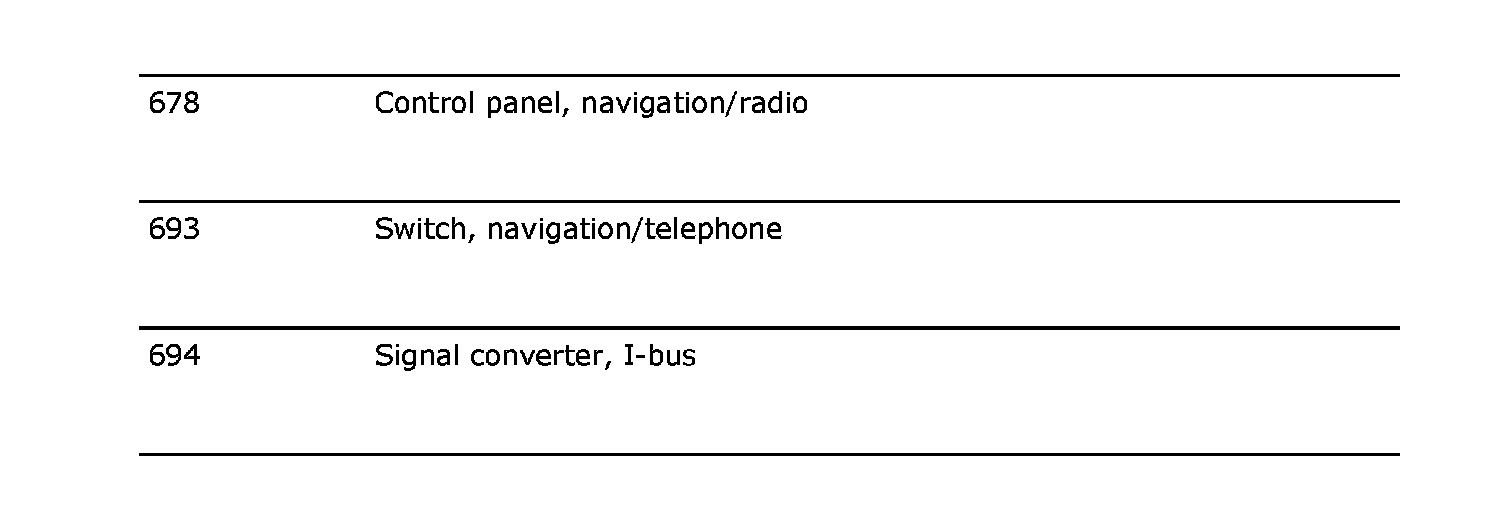

A. Connected components of LHD car





Via Crimp J42, instrument harness








Via Crimp J48, instrument harness

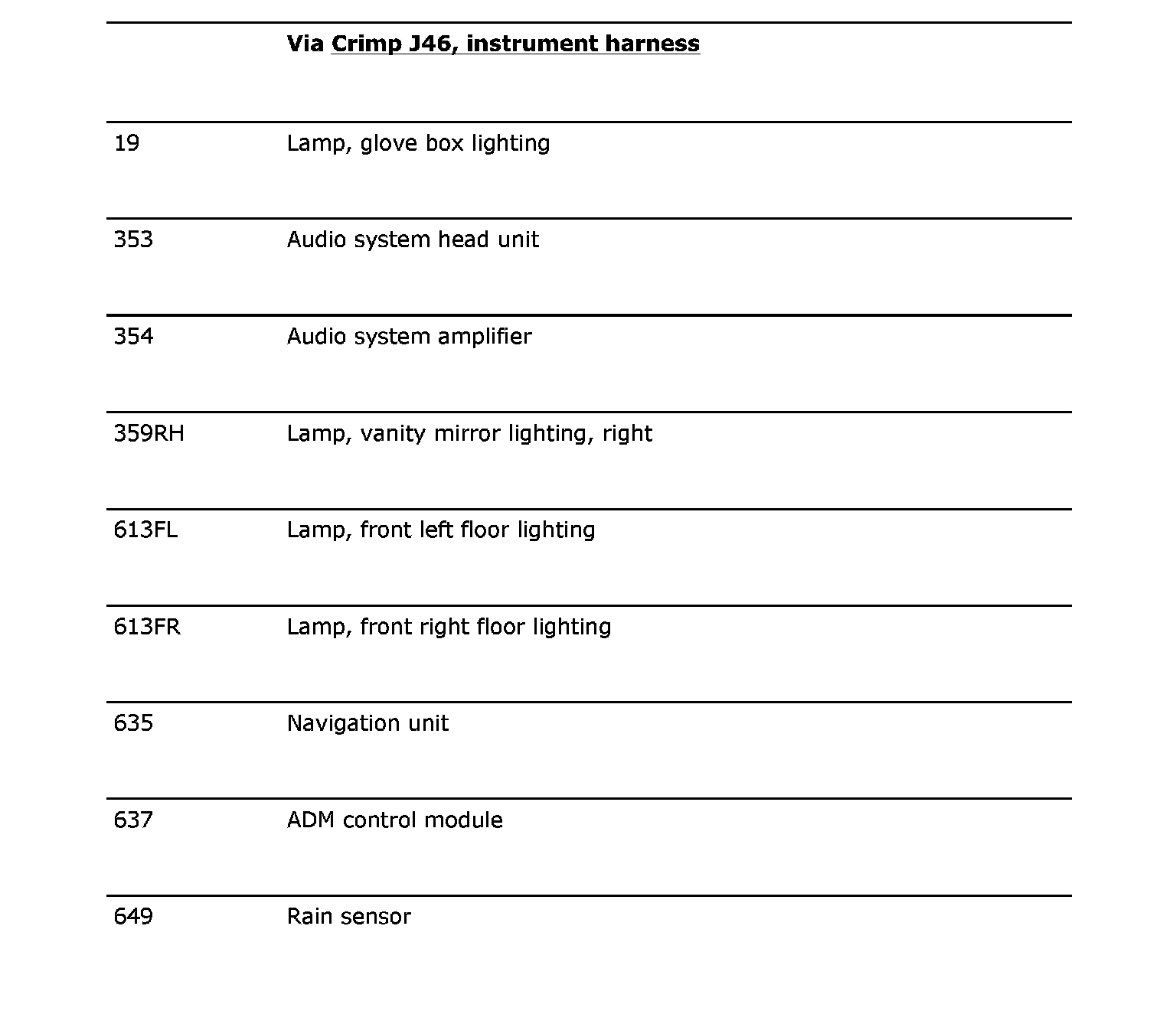

B. Connected components of RHD car
