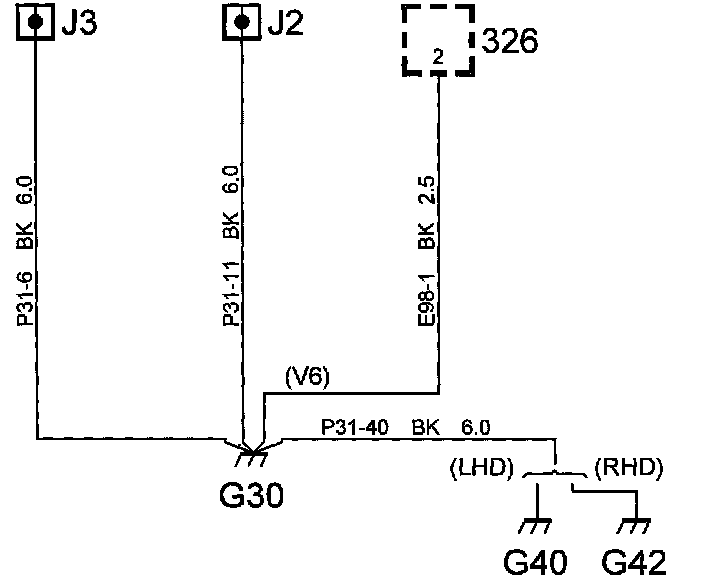

Grounding Point G30

Grounding point G30

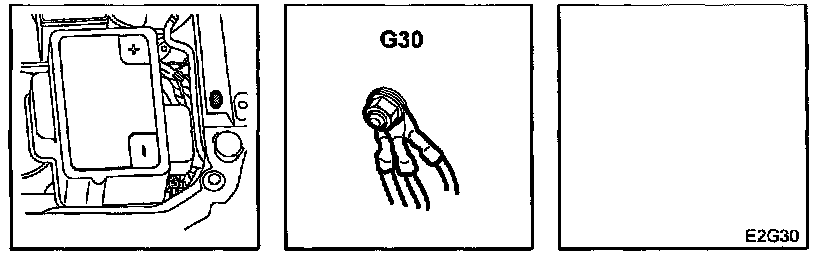

Location: In the engine bay on the side panel in front of the left-hand wheel housing

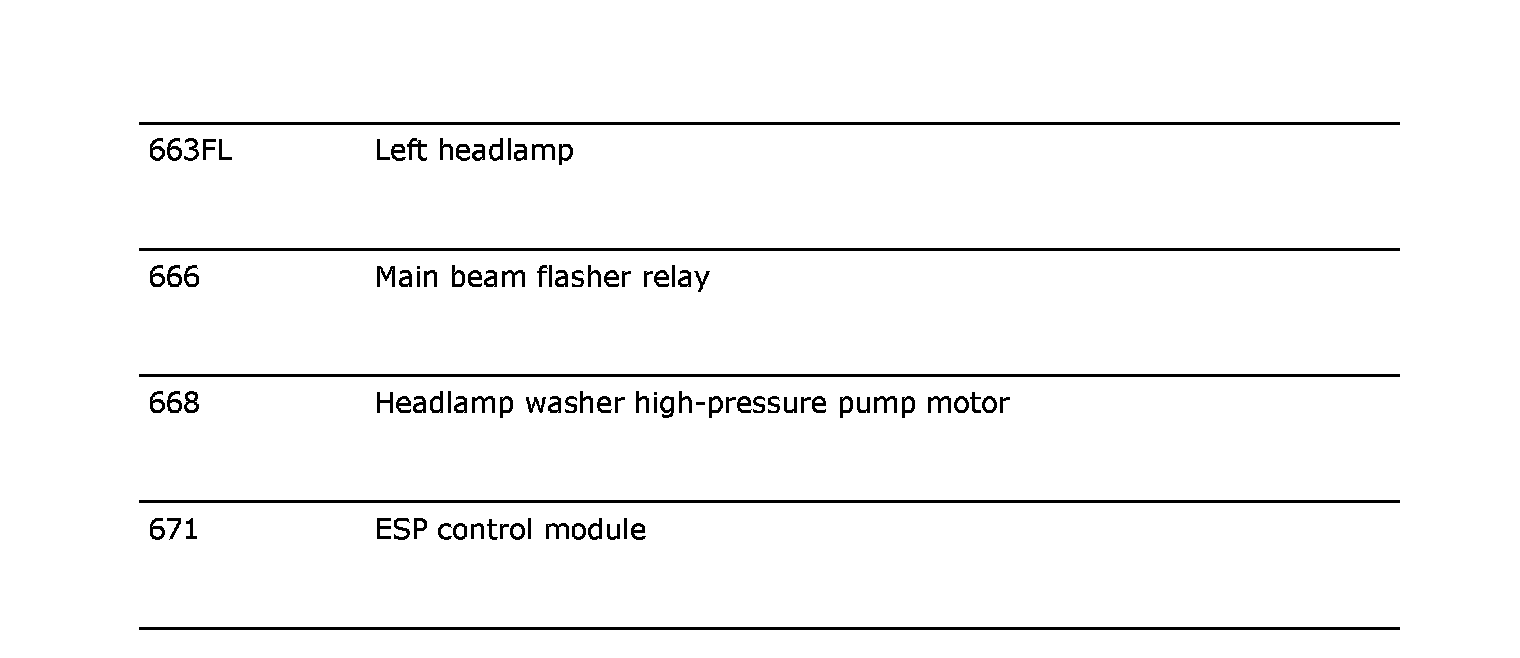

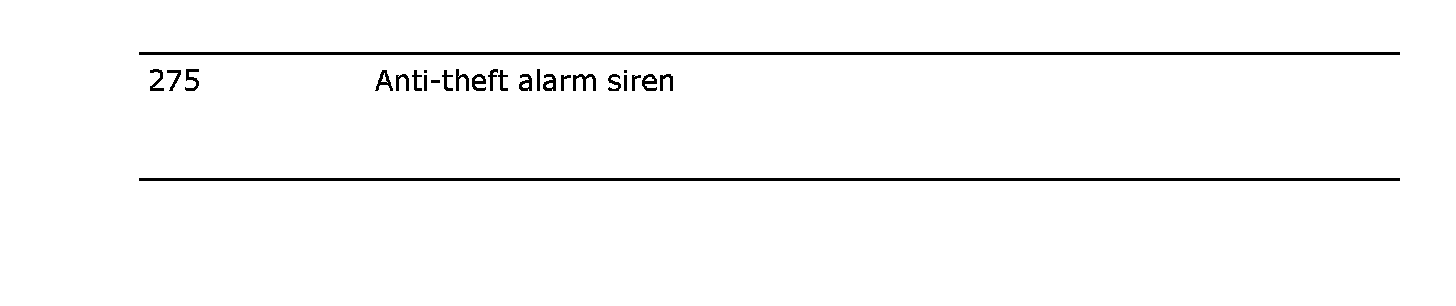

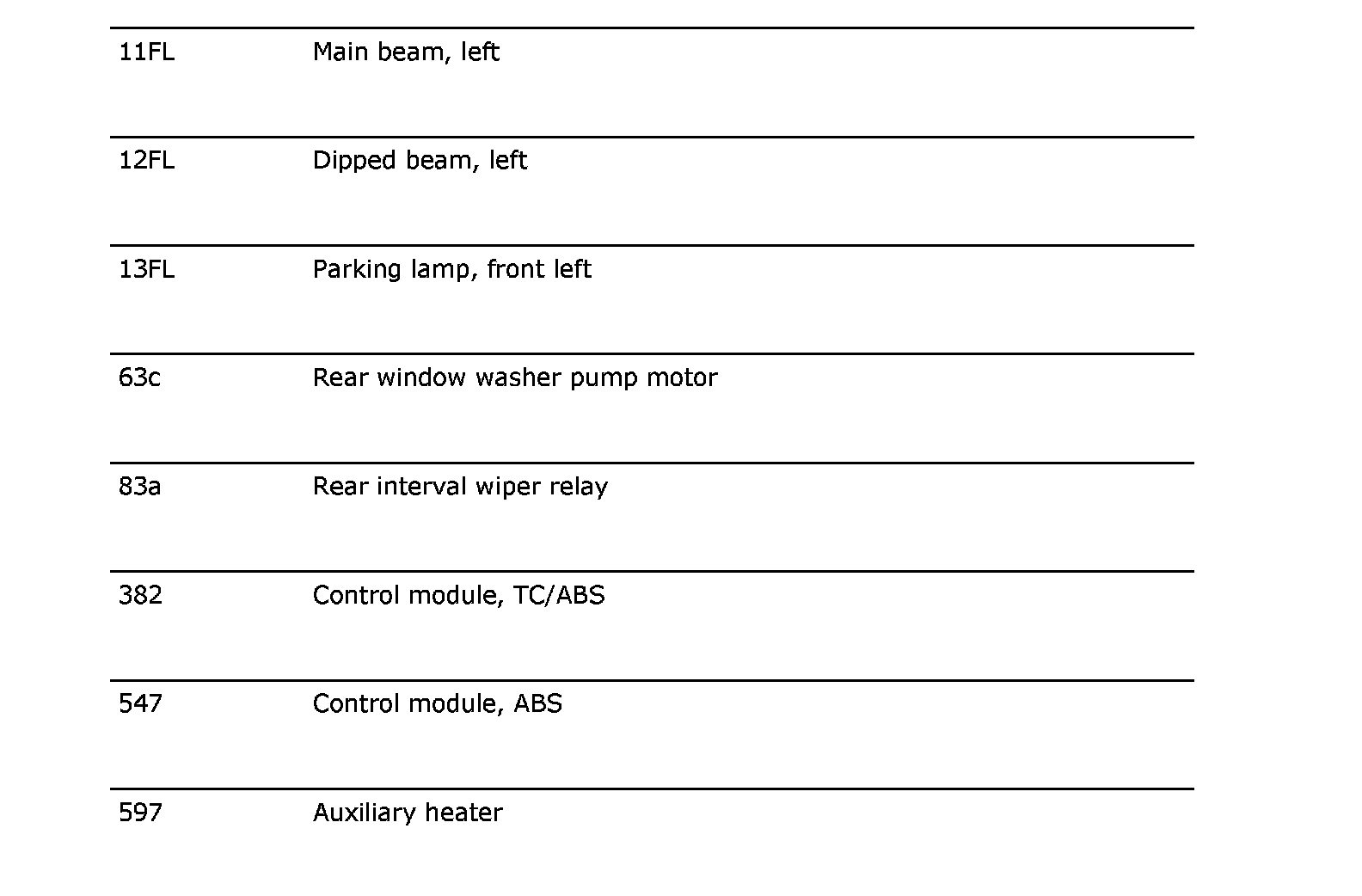

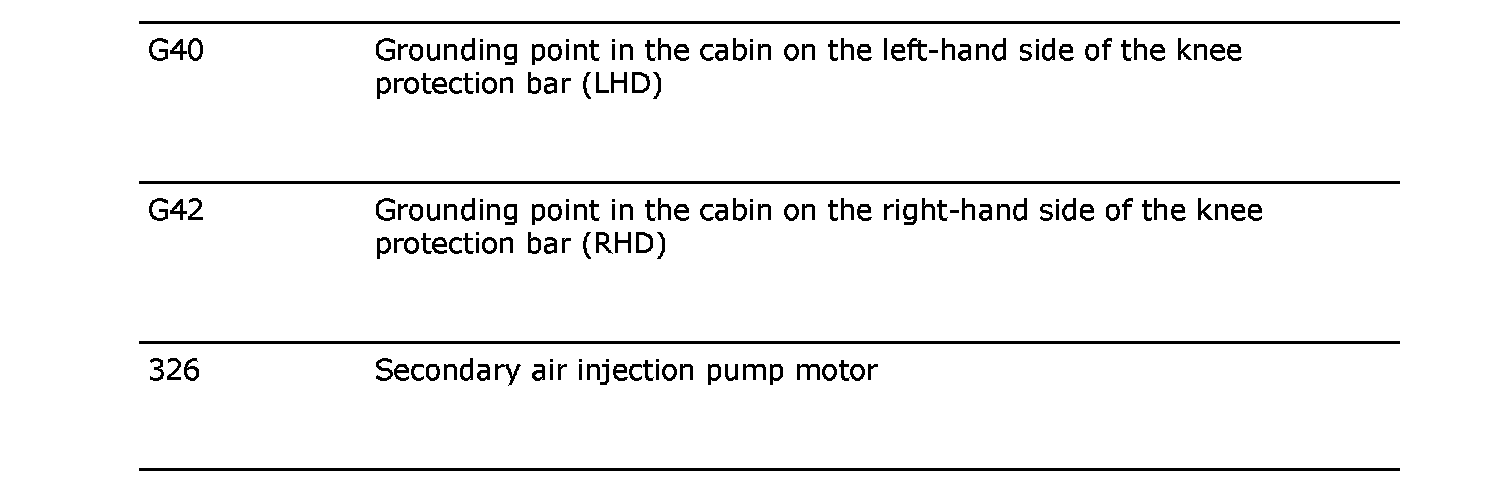

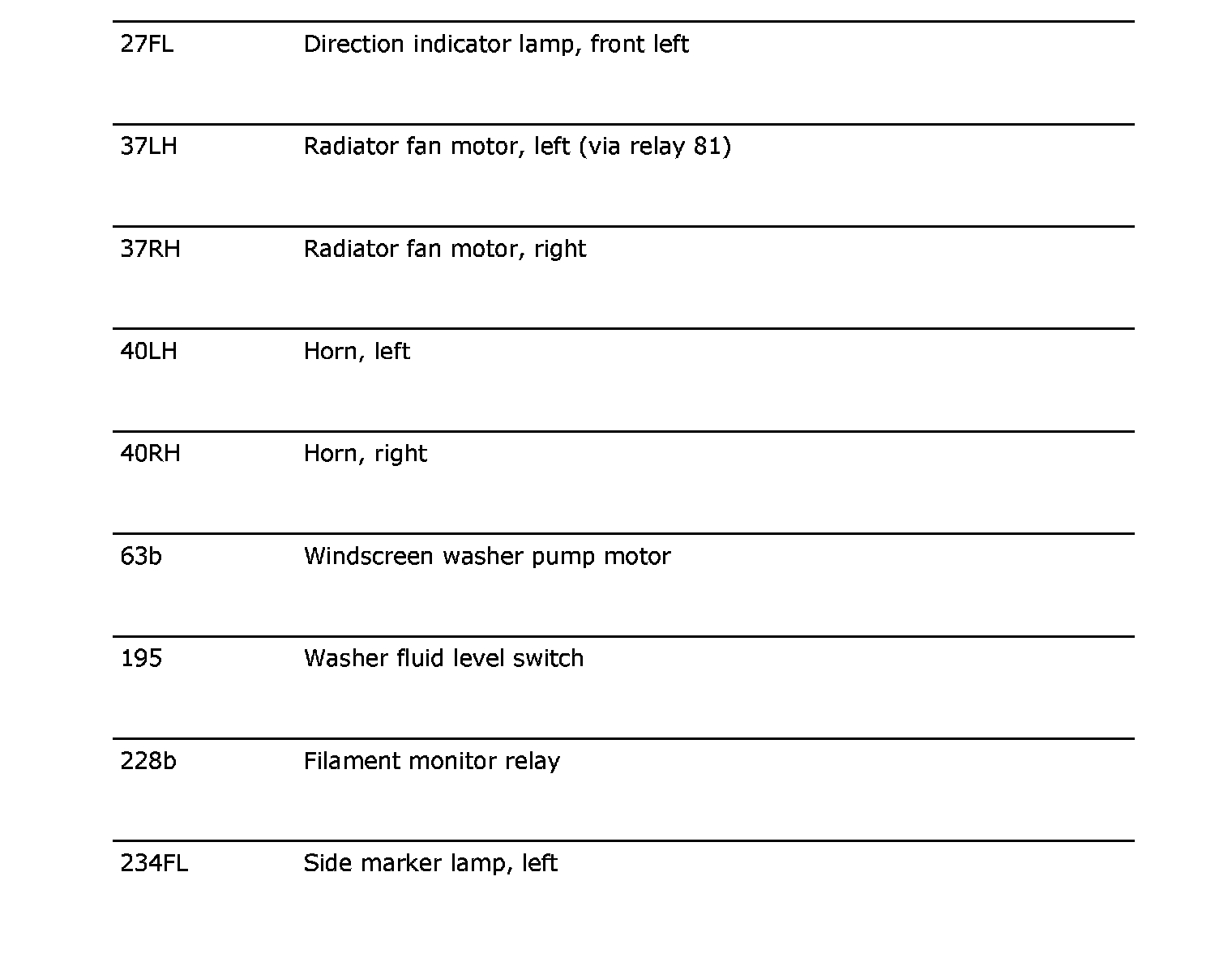

Connected components

Part 1:

Part 2:

Via Crimp J2, front harness

Part 1:

Part 2:

Via Crimp J3, front harness
