Grounding Point G2

Grounding point G2

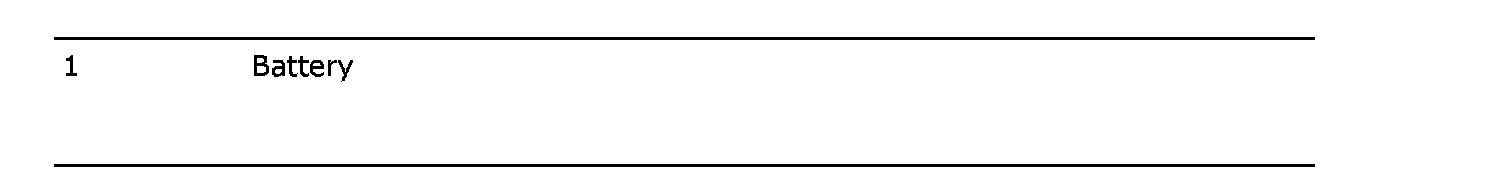

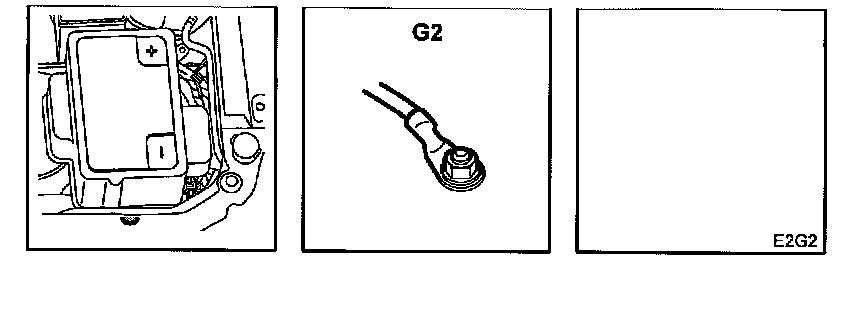

Location: Left-hand structural member behind headlamp (battery ground).

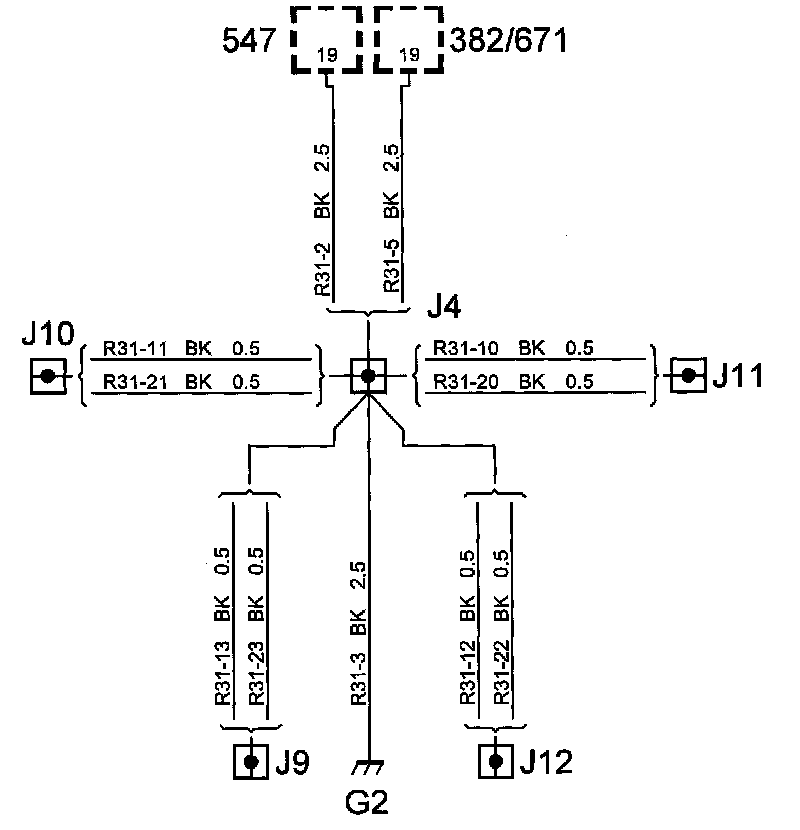

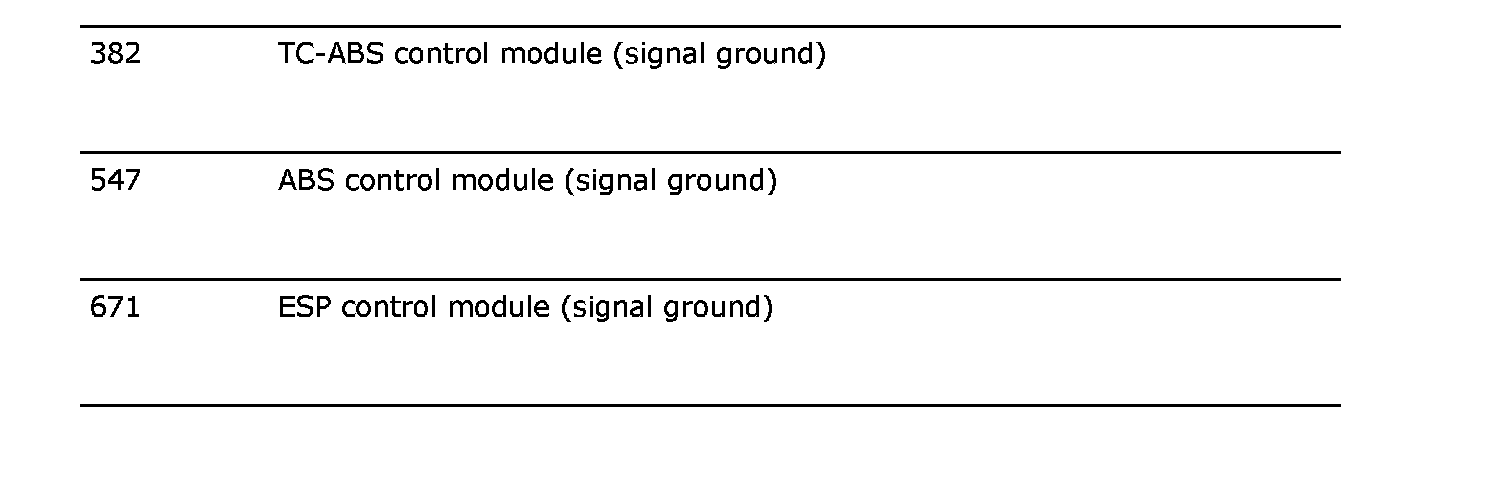

Connected components





Via Crimp J4, front harness
