System Overview

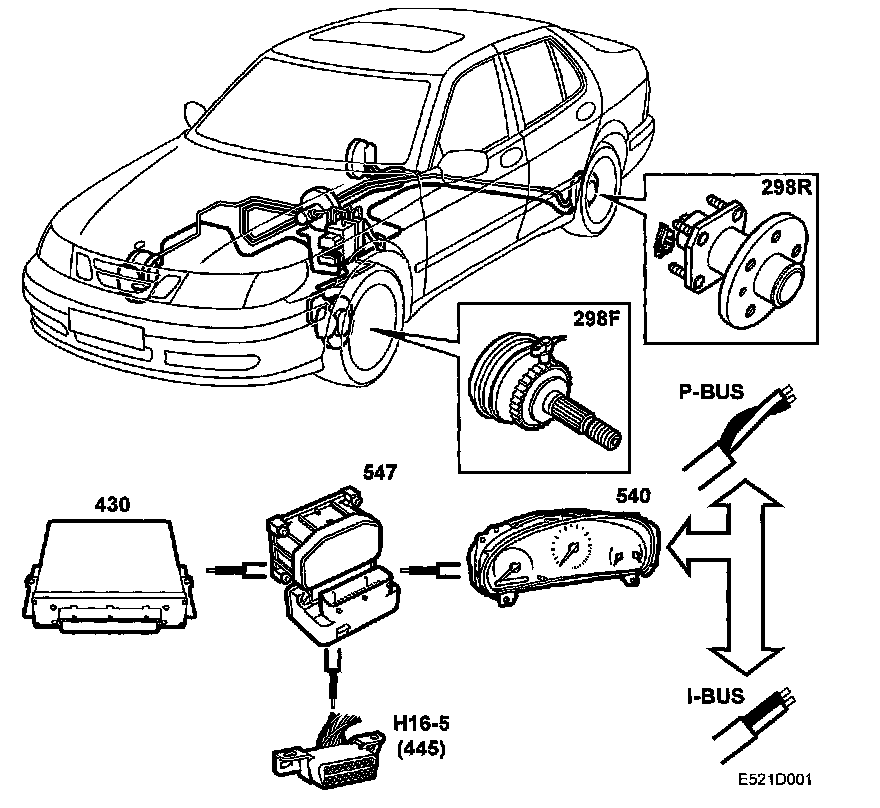

ABS 5.4: System overview





^ Rear-wheel sensors (298)
^ Front-wheel sensors (298)
^ Hydraulic unit, complete with control module, valve block and return pump (547)
^ Control module, Saab Trionic (430)
^ Main instrument unit, MIU (540)
^ Data link (445)
