Data Link

Data link

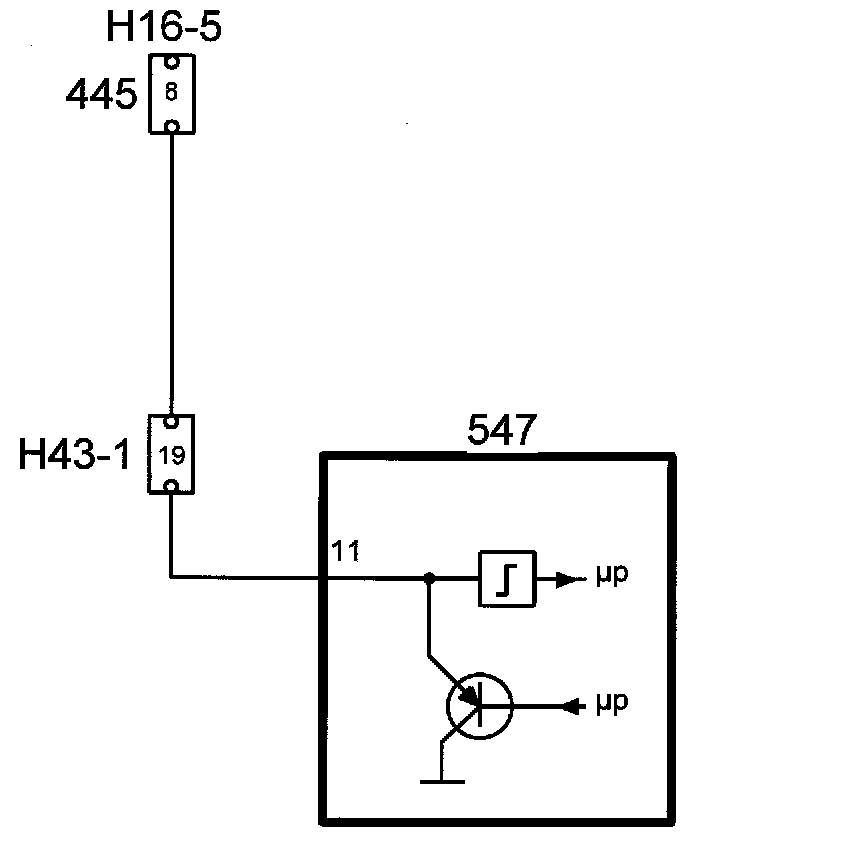

The control module communicates with the diagnostic port via pin 11.

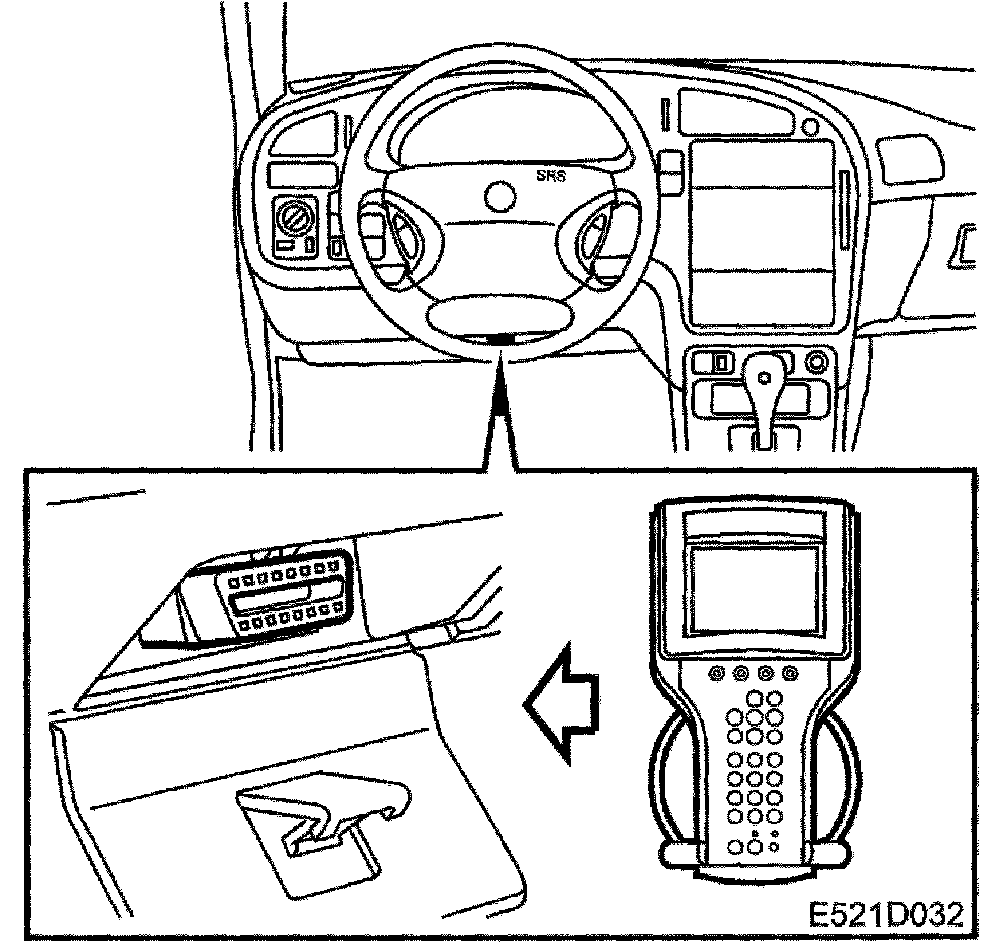

The diagnostic port is located underneath the steering column.
