Engine RPM

Engine rpm

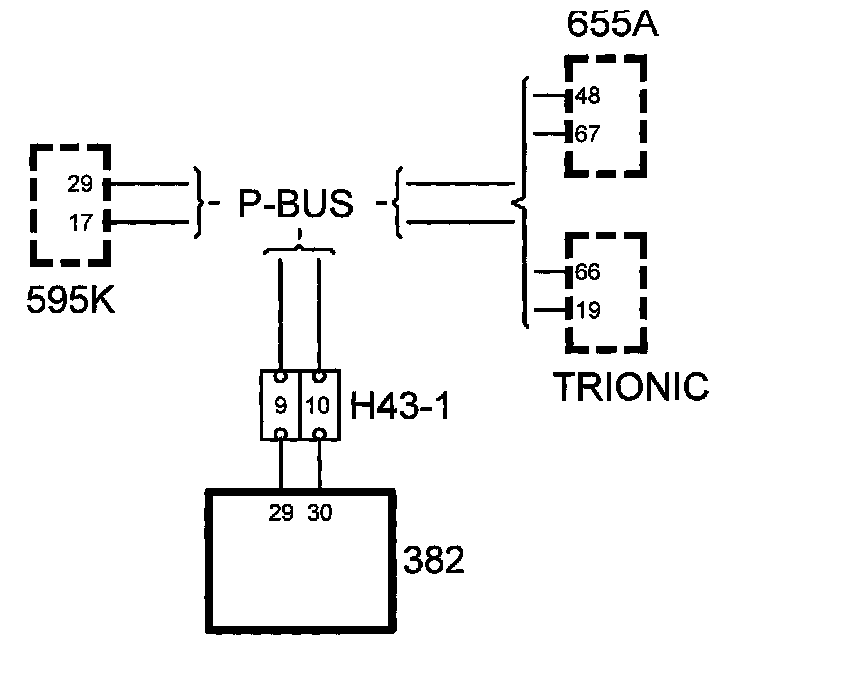

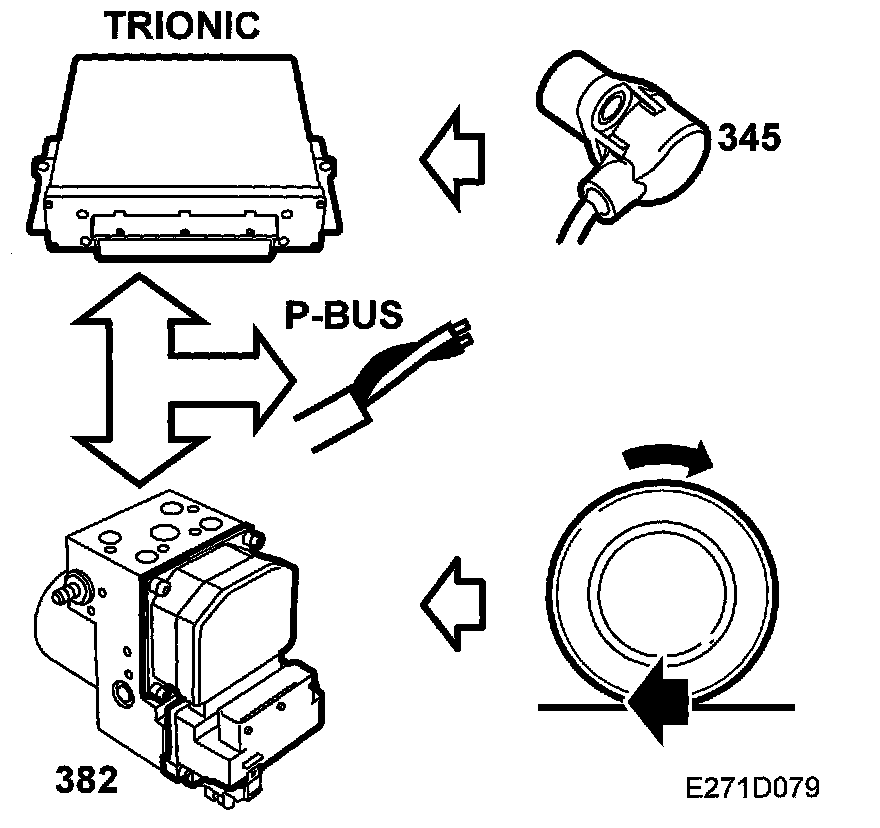

The TC/ABS control module receives information about current engine speed from the engine management system via the P-bus. The control module uses this information when calculating the current drive wheel torque.
When engine torque and the current ratio are known, the control module can calculate the drive wheel torque. Drive wheel torque is used to calculate the magnitude of brake/engine torque limitation during TCS modulation.

Diagnostics
In the event of erroneous engine speed information from the engine control module when the engine is started, DTC C1927 will be generated and the TCS function will be disengaged while the TCS OFF lamp comes on.
