Heating Pad, Front Seat Squab

Heating Pad, Front Seat Squab

Changing







1. Remove the seat cushion upholstery.

WARNING: Cars with PPS: There must be no more than two attached heating pads. If there are already two, the foam cushion with corresponding PPS components must be replaced. Otherwise there is a risk that the PPS/airbag system will not operate properly, which could lead to sever personal injury.

2. Cars with PPS: Check the number of heating pads.
3. Cut the cables to the old heating pad.
4. Pull the protective backing from the new heating pad.

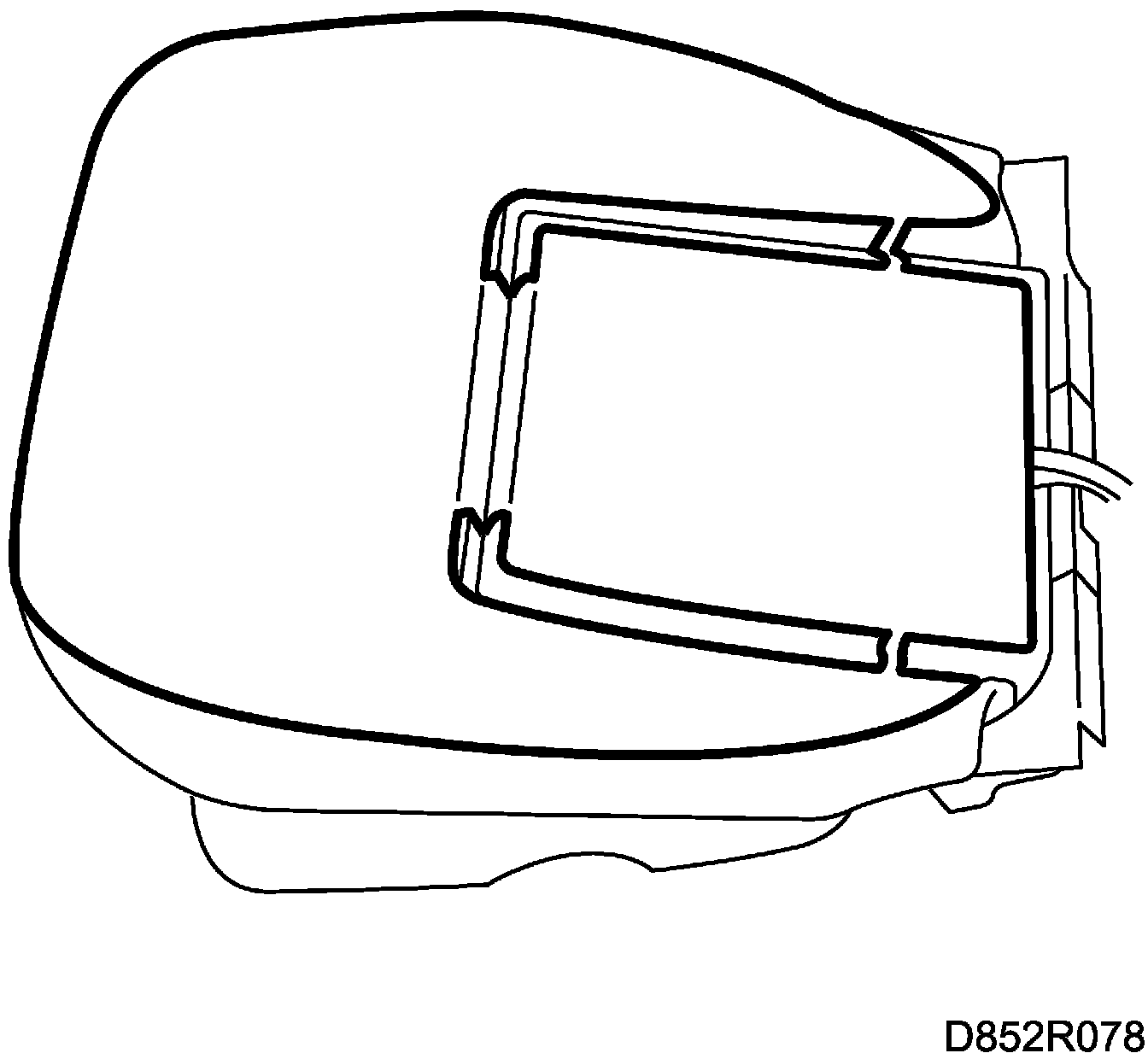

5. Position the new heating pad on the seat cushion and press it in place.

NOTE: Be sure to press the cushion down into the groove in the seat foam.

6. Fit the seat upholstery.
